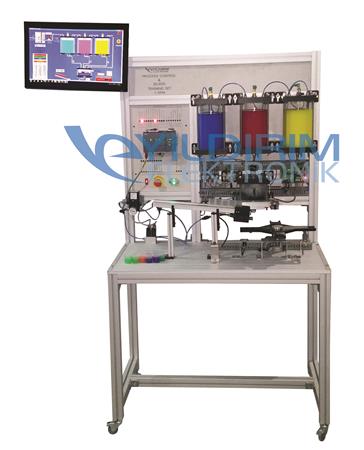

Process and scada training set is complying with the application and project development activities towards the project automation subjects. Measuring, monitoring and controlling of pressure, level and tempature parameters have been carried out.
Process was designed in accordance with the application that three colors (Cyan-Magent-Yellow) have been mixed in various rates and the new color has been obtained.
The colored liquid in the liquid tanks could be monitored as analogue by ultrasonic level sensors. The proportional regulator and pressure sensor are used for pressure level.
The obtained color liquid has been mixed in the mixer tank and has been kept in identified constant temperature. In order to measure the temperature of the mixture and check it, the PLC PID block was used.
The empty bottles are driven to the filling unit one by one as automaticly or manual by Air Slide.
The obtained mixture has been discharged by flow meter with precision dosing to the bottles in the filling unit and it has been conveyed to the next station by the circular movement mechanism.
Entire system has been checked by PLC and all data could be transmitted to the visual objects on SCADA screen.
Technical Specifications :
• Supply voltage 220 - 240V AC, 50-60 Hz
• Internal PLC Siemens S7-1200 1215C DC/DC/DC PLC ( 14 DI, 10 DO - 6 AI, 2 DO)
• On-Off, Start-Stop and Emergency Stop Buttons
• 3 pcs Ultrasonic liquid level sensors
• 3 pcs pressure sensors; 3 pcs optical sensors
• Inductive sensor, capacative sensor, temparature sensor
• Pneumatic supplied carrying channel
• 3 pcs vertical position liquid tanks
• Mixer unit
• Proportional regulator
• Led and simulation keys for digital inputs
• Analog inputs-outputs with 2 mm plug sockets
• Manual and PLC controlled circular motion mechanism platform
• Digital and Analog pressure indicators
• Air control valves
Applications :
• Joint evaluation and application as well as development of Process Automation Vehicles
• Qualifications to measure, check and control the pressure, heating and level processes
• Activities towards PLC programming
• Using of PID controller
• Preparing of SCADA project
• Application of electro pneumatic
• Program simulation
• Digital input/output application
• Analog input/output application
• Assembly/Installation application
• Diagnosis and defect repair
• Comments and reviewing of the documentation
Your Need For Application :
• 25 lt/mn, 6 bar Air Compressor
