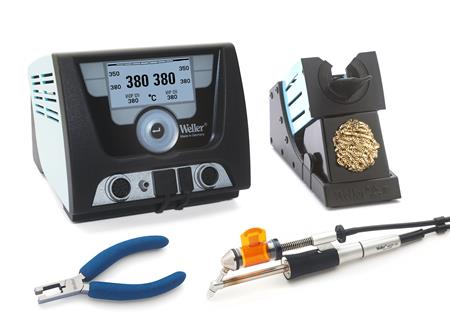

- Bu istasyon vakum el aparatı olarak WXDP 120 kullanmaktadır. El aparatının uç kataloğu (XDSL Serisi) için tıklayınız.
This station is ESD safe.
Dimensions L x W x H : 170 x 151 x 130 mm (6,69 x 5,94 x 5,12 inch)
Weight : approx. 3,2 kg
Channels : 2
Power supply : 230 V, 50 Hz
Power consumption : 200 W (255 W)
Protection class : I
Fuse :T2 A
Temperature accuracy : ± 9°C (± 17°F)
Temperature stability : ± 2°C (± 4°F)
Pump
(periodic duty 30/30 s) : Max. pressure 0,7 bar
Air consumption : 35 l/min
Display
Dimensions touch panel : 74 x 38 mm
Resolution : 255 x 127 (128) dots
Display backlighting : 4 LEDs
Equipotentional bonding : The 3,5 mm switch offers four different options:
a) Hard grounded without plug (original delivery)
b) Equipotential bonding: with plug, compensation line on center contact
c) Potential free: with plug
d) Soft grounded: with plug and soldered resistor grounded via selected resistor
USB interface : USB interface in front of firmware updates, parameterization and monitoring
USB interface supports all standard USB flash drive types
