WELLER WQB 4000SOPS

Soldering Equipment → Soldering Stations → BGA / QFP Rework → WELLER WQB 4000SOPS

Sipariş No : T0053370699

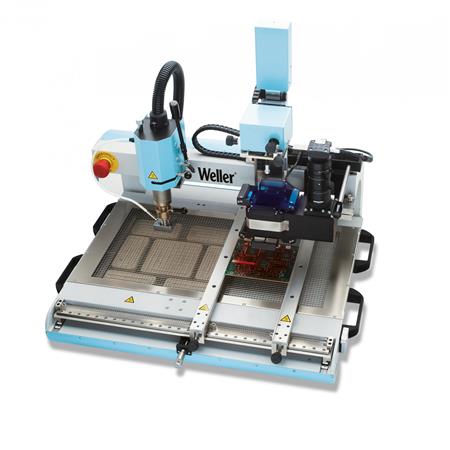

WELLER WQB 4000SOPS

BGA/SMT Rework system 2300 W

Product features
2300 W / 230 V
BGA / SMT Rework system
For component placement with placing system camera support.



Technical Data:

  • Height: 680 mm

  • Length: 692 mm

  • Dimensions (L × W × H): 692.0 × 580.0 × 680.0 mm

  • Air Consumption: 60 – 100 l/min

  • Compressed Air Connection (Outer Diameter): 6.0 mm

  • Compressed Air Connection Accessory: Oil-free, dry compressed air

  • Compressed Air Supply (kPa/bar): 400 – 600 kPa / 4 – 6 bar

  • ESD Safe: Yes

  • Power: 2300 W

  • Power Consumption: 2300 W

  • Space Requirements (L × W × H): 1099.8 × 650.2 × 680.7 mm

  • Temperature Accuracy of Top Heating: ± 10 °C (± 18 °F)

  • Temperature Range of Bottom Heating: 50 – 400 °C

  • Temperature Range of Top Heating: 50 – 400 °C

  • Thermocouple Connection: Type-K

  • UPC: 4003019418275

  • Weight (Catalog): 40.00 kg



Tender Specifications

Videos

Documents (Catalogue-Brochure-Manual)

Datasheet_BGASMT-Rework-system-2300-W_T0053370599.pdf
