🔧 PRODUCT FEATURES
The WX 2 dual-channel digital power unit ensures high efficiency.
Includes 1× WXUPS MS high-power smart soldering iron (150 W).
Includes 1× WXMT MS micro desoldering tweezer (2 × 40 W) for safe removal of SMD components.
Smart handpieces are automatically recognized; temperature and process data are stored in the tool's internal memory.
All controls are managed via the ESD-safe, chemical-resistant, glass-coated touchscreen.
Fully compatible with all soldering, desoldering, and hot air tools within the WX platform.
Supports all digital interfaces required for Industry 4.0 and IoT integration (USB, RS-232, switch output, etc.).
LED ring indicator shows real-time tool status (ready, standby, heating, etc.).
Compact design occupies minimal bench space while offering high operational capacity.
⚙️ TECHNICAL SPECIFICATIONS
Power unit: WX 2, dual-channel
Total power: 300 W (max. 150 W per channel)
Soldering tool power: 150 W (WXUPS MS), 2 × 40 W (WXMT MS)
Temperature range: 100 – 550 °C (depending on tool type)
Temperature accuracy: ±9 °C
Temperature stability: ±2 °C
Display: Touchscreen, ESD safe, glass-coated
Interfaces: 1 × USB, 2 × RS-232, 1 × switch output
Dimensions: approx. 174 × 154 × 135 mm
Weight: approx. 3.5 kg
ESD-safe construction, adjustable standby and sleep modes
Power input: 230 V AC, 50/60 Hz
Fuse: T2A
📦 PACKAGE CONTENTS

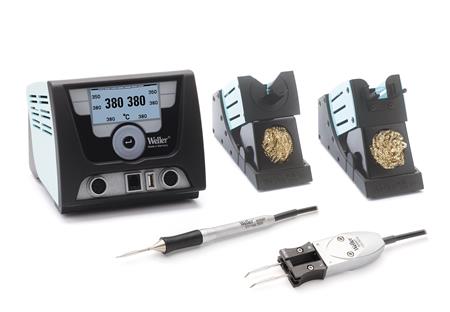

1 × WX 2 Main Unit (Dual-Channel Digital Power Supply)
1 × WXUPS MS Smart Soldering Iron (150 W)
1 × WXMT MS Micro Desoldering Tweezer (2 × 40 W)
1 × WSR 208 Dual Stand (for WXUPS and WXMT)
Includes RTUS soldering tip and RTW desoldering tip
Power cable and user documentation
