GDS-3000 Series Oscilloscope

T&M Equipment → Oscilloscopes → GDS-3000 Series Oscilloscope

Sipariş No : GW-GDS-3000

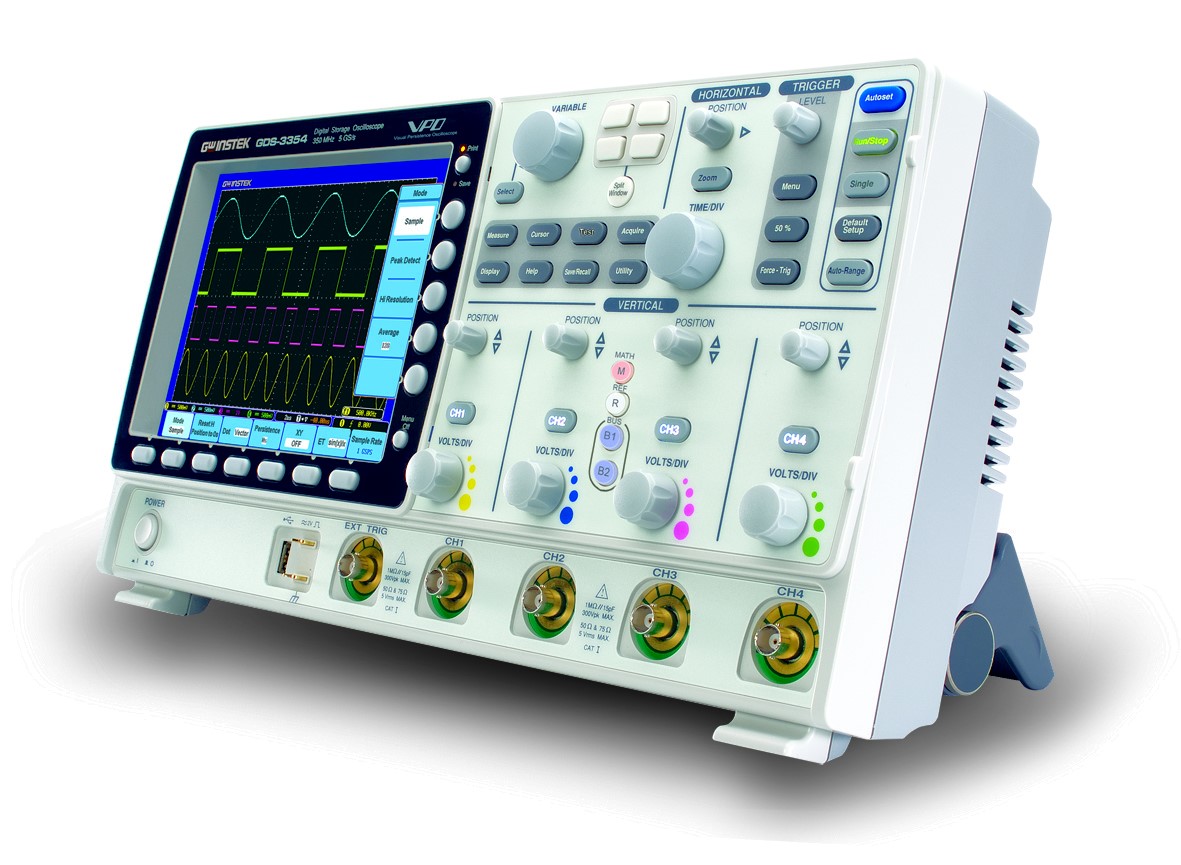

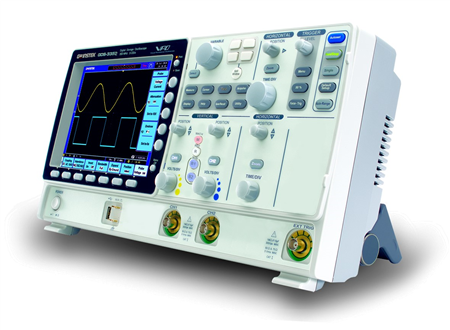

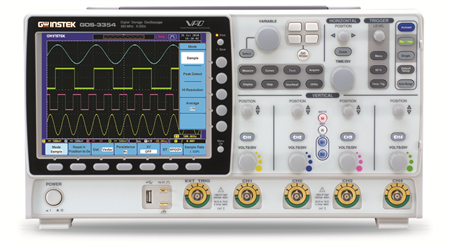

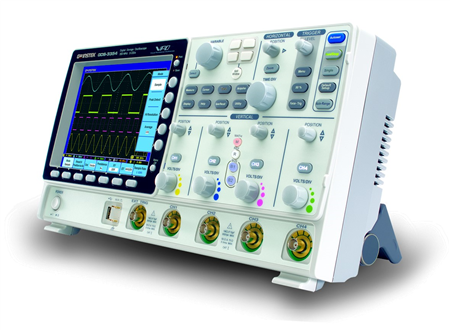

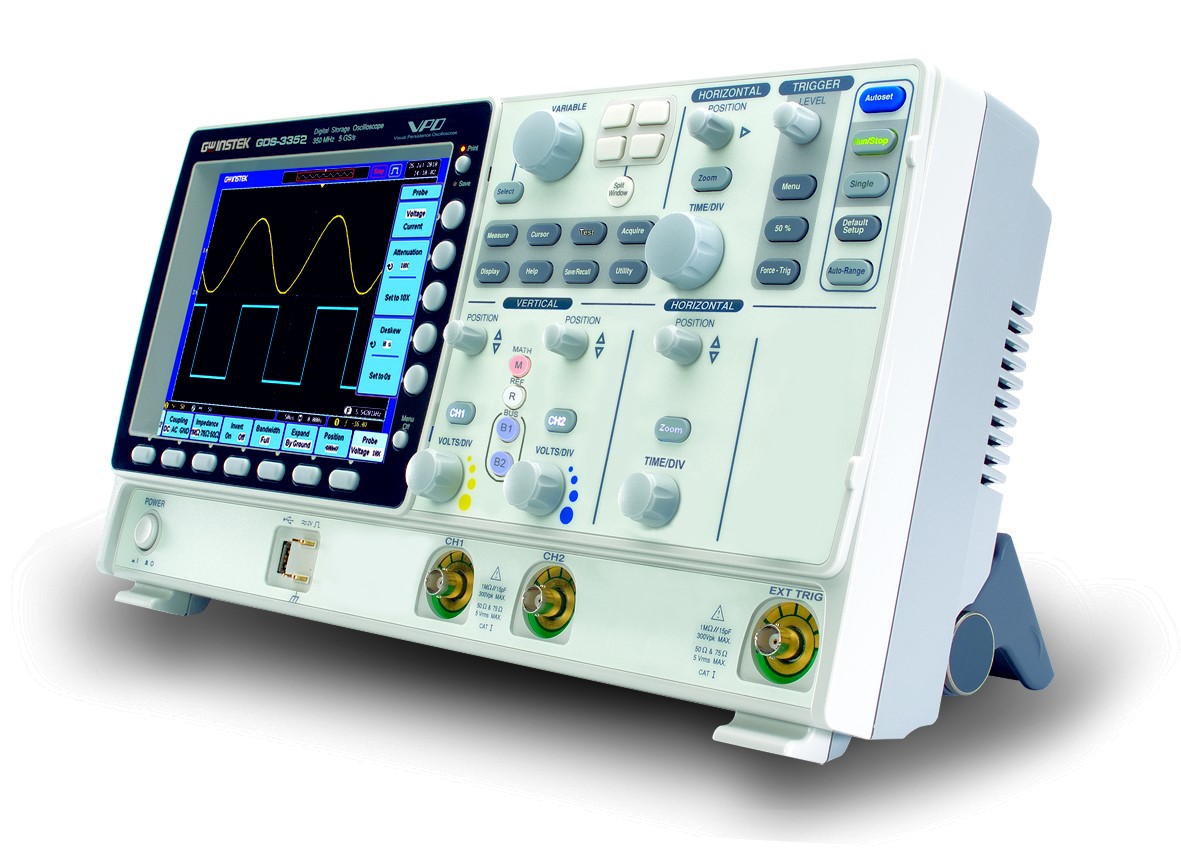

GDS-3000 Series Oscilloscope

2 or 4 Channel 150MHz, 250MHz, 350MHz, 500MHz Digital Oscilloscope

500/350/250/150MHz with 2/4 Channels

5GSa/s RT or 100GSa/s ET Sampling Rate

Independent Memory for Each Channel

VPO Technology

Large 8-inch 800x600 Display

Split Screen Function

3 Built-in Impedances (50Ω/75Ω/1MΩ)

Power Analysis Software (Optional)

Serial Bus Analysis Software for I2C, SPI and UART (Optional)



A Hi-tech DSO Platform

The GDS-3000 Series is a platform of 4-input channels, 500MHz bandwidth, 5GSa/s sampling rate, and VPO waveform display. The split screen feature has been designed to meet the requirements of multi-window & multi-signal tests in the research and the manufacturing fields. The optional power analysis software and the optional serial bus analysis software are available to facilitate the engineer's tasks in testing and manufacturing of the associated products.

The differential probe, GDP-025, GDP-050 & GDP-100, and current probes, GCP-020, GCP-100 and GCP-530 & GCP-1030, are coming along with the GDS-3000 Series to provide total solutions for a wide variety of applications in the industry, service and education market sectors. The GDS-3000 Series, a high-tech platform carrying thoughtful features, brings very high customer value to both general purpose market and professional market.

Model/Option Selection Matrix
Stock Code:
GW-GDS-3152
Details:
2 Channel 150MHZ Oscilloscope
Option Type:
Model
Stock Code:
GW-GDS-3154
Details:
4 Channel 150MHZ Oscilloscope
Option Type:
Model
Stock Code:
GW-GDS-3252
Details:
2 Channel 250MHZ Oscilloscope
Option Type:
Model
Stock Code:
GW-GDS-3254
Details:
4 Channel 250MHZ Oscilloscope
Option Type:
Model
Stock Code:
GW-GDS-3352
Details:
2 Channel 350MHZ Oscilloscope
Option Type:
Model
Stock Code:
GW-GDS-3354
Details:
4 Channel 350MHZ Oscilloscope
Option Type:
Model
Stock Code:
GW-GDS-3502
Details:
2 Channel 500MHZ Oscilloscope
Option Type:
Model
Stock Code:
GW-GDS-3504
Details:
4 Channel 500MHZ Oscilloscope
Option Type:
Model
Stock Code:
GW-GUG-001
Details:
GPIB to USB adapter
Option Type:
Option-HW
Stock Code:
GW-GTL-248
Details:
GPIB Cable, Double Shielded, 2000mm
Option Type:
Option-HW
Stock Code:
GW-GTL-251
Details:
USB to GPIB Adapter, GPIB-USB-HS, USB 2.0 Hi-Speed USB Complience 2000mm
Option Type:
Option-HW
Stock Code:
GW-GSC-008
Details:
Soft Carrying Case
Option Type:
Option-HW
Stock Code:
GW-GTL-110
Details:
Test Lead, BNC-BNC Heads
Option Type:
Option-HW
Stock Code:
GW-GTL-232
Details:
RS232C Cable 9 pin female to 9 pin female, Null modem for computer
Option Type:
Option-HW
Stock Code:
GW-GTL-246
Details:
USB 2.0 Cable, A-B type cable 4P 1800mm
Option Type:
Option-HW
Stock Code:
GW-GRA-411
Details:
Rack Adapter Panel
Option Type:
Option-HW
Stock Code:
GW-GDB-03
Details:
Oscilloscope Education & Training Kit
Option Type:
Option-HW
Stock Code:
GW-GKT-100
Details:
Deskew Fixture
Option Type:
Option-HW
Stock Code Details Option Type
GW-GDS-3152 2 Channel 150MHZ Oscilloscope Model
GW-GDS-3154 4 Channel 150MHZ Oscilloscope Model
GW-GDS-3252 2 Channel 250MHZ Oscilloscope Model
GW-GDS-3254 4 Channel 250MHZ Oscilloscope Model
GW-GDS-3352 2 Channel 350MHZ Oscilloscope Model
GW-GDS-3354 4 Channel 350MHZ Oscilloscope Model
GW-GDS-3502 2 Channel 500MHZ Oscilloscope Model
GW-GDS-3504 4 Channel 500MHZ Oscilloscope Model
GW-GUG-001 GPIB to USB adapter Option-HW
GW-GTL-248 GPIB Cable, Double Shielded, 2000mm Option-HW
GW-GTL-251 USB to GPIB Adapter, GPIB-USB-HS, USB 2.0 Hi-Speed USB Complience 2000mm Option-HW
GW-GSC-008 Soft Carrying Case Option-HW
GW-GTL-110 Test Lead, BNC-BNC Heads Option-HW
GW-GTL-232 RS232C Cable 9 pin female to 9 pin female, Null modem for computer Option-HW
GW-GTL-246 USB 2.0 Cable, A-B type cable 4P 1800mm Option-HW
GW-GRA-411 Rack Adapter Panel Option-HW
GW-GDB-03 Oscilloscope Education & Training Kit Option-HW
GW-GKT-100 Deskew Fixture Option-HW

Tender Specifications

1. Bandwidth of the device should be 150MHz, 250MHz, 350MHz or 500MHz.
2. The device must have 2 or 4 analog input channels.
3. When required on the device (optional), it must support I2C, SPI and UART with serial bus analysis software.
4. The device should enable (optional) software power analysis capability when needed.
5. The device has VPO- Visual Persistence Oscilloscope signal processing technology, and it must have a screen split feature for signal analysis received from each channel.
6. The instrument must have at least 5GSa / s real-time sampling rate, and at least 100GSa / s equivalent sampling rate in total.
7. The device must have at least 3 different input impedance selection features: 50Ω / 75Ω / 1MΩ. It should have a vertical resolution of at least 2mV / div ~ 5V / div at 1MΩ input impedance and at least 2mV / div ~ 1V / div vertical resolution at 50 / 75Ω input impedances.
8. The device must have horizontal resolution in the range of at least 1ns / div ~ 100s / div.
9. The device must have at least 8 inch 800x600 Display screen.
10. Rise time of the device should be below 2.3ns (nano seconds).
11. The device must have at least 25kPts of memory.
12. The device must have an 8-bit memory resolution.
13. The device must have at least auto, normal, single, slope, edge, video, pulsewidth, video, runt, rise & fall, alternate, glitch trigger, duration trigger, slope trigger, event-delay, trigger modes.
14. The device must have 3 USB outputs with at least 2 host and 1 device.
15. There must be at least one serial port output on the device.
16. The device should allow (optional) GPIB output when needed.
17. Must have FFT analysis feature with the device
18. The device must have at least 28 parameters of automatic measurement.
19. The device should be provided with Power Cable, User Manual, 2 passive probe sets and PC software.

Download Product's Tender Specifications
