GOM-800 Series DC Milliohmmeter

T&M Equipment → MiliOhmmeters → GOM-800 Series DC Milliohmmeter

Sipariş No : GW-GOM-800

GOM-800 Series DC Milliohmmeter

DC Milliohmmeter

  • 50,000 counts
  • 3.5” (320 x 240) TFT LCD display
  • High accuracy of 0.05% precision
  • 1Amp test current, 0.1µΩ resolution
  • Fast measurement of 60 readings per second
  • Four wire resistance measurement
  • Temperature compensation measurement function
  • Delayed measurement
  • 20 sets of panel setting memory
  • Dry circuit (GOM-805 only)
  • Drive modes (GOM-805) : DC+/DC-, Pulsed, PWM, Zero, Standby

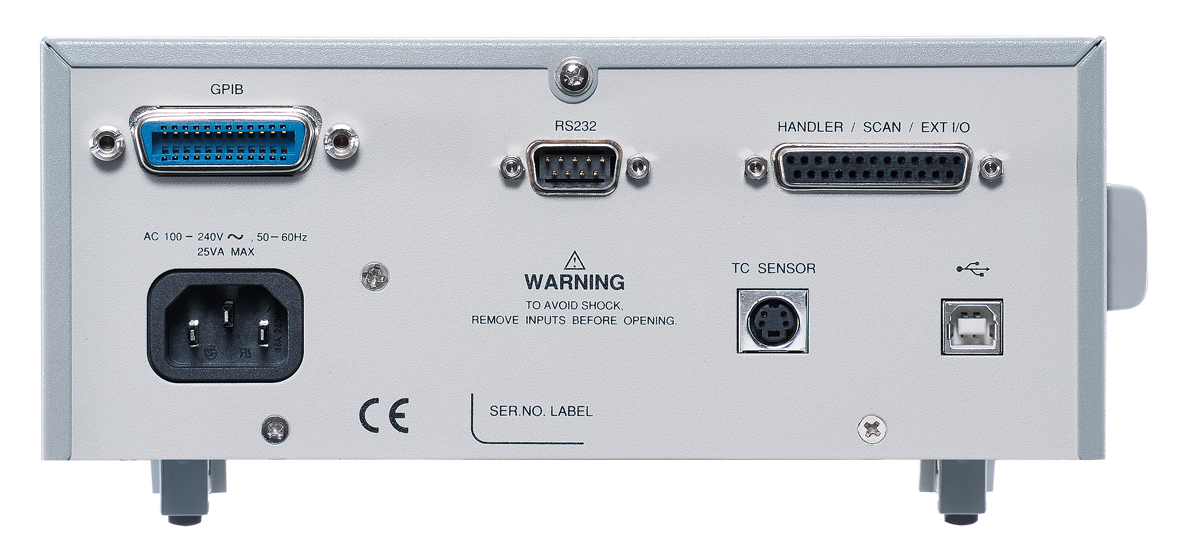

GOM-804/805 feature 3.5-inch TFT display, maximum 50,000 counts measurement display, the rapid sampling rate of 60 readings per second, optimum 0.05% measurement precision, four wire measurement method as well as the temperature measurement and temperature compensation measurement function to meet the requirement of low resistance measurement application. The GOM-805 also includes various drive modes and Dry circuit for contact resistance measurement applications. More features, including 20 sets of panel setting memory and many external control interface such as RS-232C, USB, Handler/Scan/EXT IO or GPIB (option), greatly elevate GOM-804/805 milliohm meter’s convenience on practical applications.

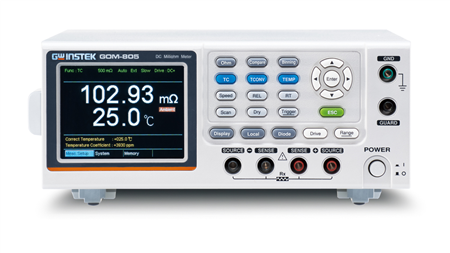

 GOM-804/805 adopt 3.5-inch color LCD to enhance the clarity of measurement results and to provide display for related setting criteria that tremendously brings up the completeness of test information. Additionally, GOM-804/805, with the optimum 0.05% precision, augment the measurement speed to 60 sampling rate per second and maintain the display digits of five instead of four despite of different speed selections. Furthermore, the independent functionality keys and direction keys together increase the operational convenience which allows users to complete their measurement tasks with intuitive convenience and speed.




Model/Option Selection Matrix
Stock Code:
GW-GOM-804
Details:
D.C. Milliohm Meter(Handler/RS-232C/USB Device)
Option Type:
Model
Stock Code:
GW-GOM-805
Details:
D.C. Milliohm Meter(Handler/RS-232C/USB Device/GPIB)
Option Type:
Model
Stock Code:
GW-PT-100
Details:
Platinum Temperature Probe
Option Type:
Option-HW
Stock Code:
GW-GTL-232
Details:
RS-232C cable 9-pin, F-F type, approx. 2000mm
Option Type:
Option-HW
Stock Code:
GW-GTL-246
Details:
USB cable, A-B type, approx. 1200mm
Option Type:
Option-HW
Stock Code:
GW-GTL-248
Details:
GPIB cable approx. 2000mm
Option Type:
Option-HW
Stock Code:
GW-GTL-309
Details:
Test lead, approx. 3m
Option Type:
Option-HW
Stock Code Details Option Type
GW-GOM-804 D.C. Milliohm Meter(Handler/RS-232C/USB Device) Model
GW-GOM-805 D.C. Milliohm Meter(Handler/RS-232C/USB Device/GPIB) Model
GW-PT-100 Platinum Temperature Probe Option-HW
GW-GTL-232 RS-232C cable 9-pin, F-F type, approx. 2000mm Option-HW
GW-GTL-246 USB cable, A-B type, approx. 1200mm Option-HW
GW-GTL-248 GPIB cable approx. 2000mm Option-HW
GW-GTL-309 Test lead, approx. 3m Option-HW

Tender Specifications

1- The device should be able to measure resistance values between 5 milliohm and 5 megohms.
2-The device must have 0.05% measurement accuracy.
3- The device must have a 50,000 counts screen.
4-Device screen should be 3.5inch TFT LCD.
5-The device must be capable of taking at least 60 measurements per second.
6-The device must have four wire measurement features.
7-The device must have the ability to record measurements.
8-Device test current should be maximum 1A.
9-Device resolution should be 0,1µ en maximum.
10-User manual, power cable and test cables should be provided with the device.

Download Product's Tender Specifications
