PSH Series Programmable DC Power Supply

T&M Equipment → Power Supplies → DC Power Supplies → PSH Series Programmable DC Power Supply

Sipariş No : GW-PSH

PSH Series Programmable DC Power Supply

Programmable DC Power Supply

Features

Wide input voltage range and high power factor (P.F)

high efficiency and high power density

Constant voltage and constant current operation

Over voltage over current and over temperature protection

Low ripple and noise

Output on/off control

LabView driver

Standard interface : RS-232C

Optional interface : GPIB ( IEEE-488.2 )

Programmable Switching D.C. Power Supply

Output Watts (W)
Output Volts (V)
Output Amps (A)
Weight (kg)
PSH-2018A
360W
0~20V
0~18A
3.3kg

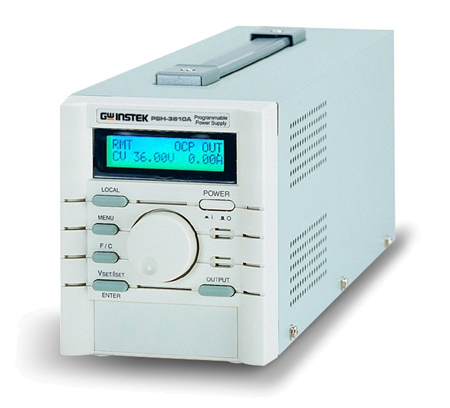

PSH-3610A
360W
0~36V
0~10A
3.3kg

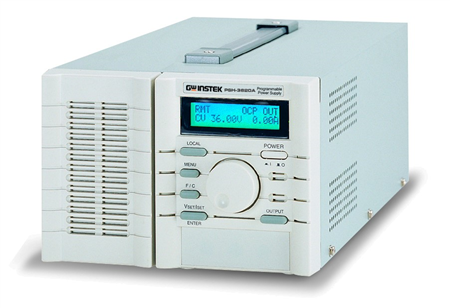

PSH-3620A
720W
0~36V
0~20A
6.2kg

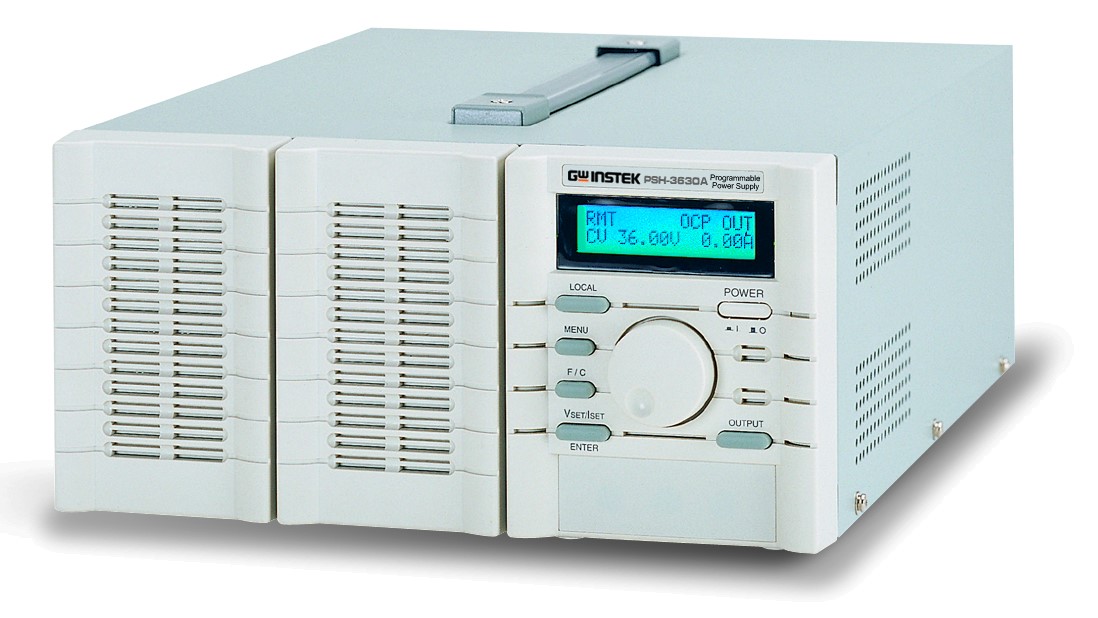

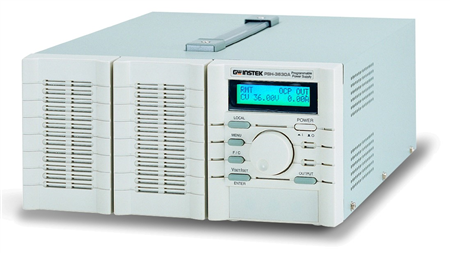

PSH-3630A
1080W
0~36V
0~30A
9.3kg




Model/Option Selection Matrix
Stock Code:
GW-PSH-2018A
Details:
20V 18A 360W Programmable Switching DC Power Supply
Option Type:
Model
Stock Code:
GW-PSH-3610A
Details:
36V 10A 360W Programmable Switching DC Power Supply
Option Type:
Model
Stock Code:
GW-PSH-3620A
Details:
36V 20A 720W Programmable Switching DC Power Supply
Option Type:
Model
Stock Code:
GW-PSH-3630A
Details:
36V 30A 1080W Programmable Switching DC Power Supply
Option Type:
Model
Stock Code:
GW-GRA-403
Details:
Rack Adapter Panel
Option Type:
Option-HW
Stock Code:
GW-GTL-232
Details:
RS-232C Cable, 9-pin female to 9-pin, null modem for computer
Option Type:
Option-HW
Stock Code:
GW-GTL-251
Details:
GPIB-USB-HS(High Speed)
Option Type:
Option-HW
Stock Code:
GW-GTL-122
Details:
Test Lead, U type to Alligator Test Lead, Max.Current 40A, 1200mm
Option Type:
Option-HW
Stock Code:
GW-GTL-248
Details:
GPIB Cable, Double Shielded, 2000mm
Option Type:
Option-HW
Stock Code Details Option Type
GW-PSH-2018A 20V 18A 360W Programmable Switching DC Power Supply Model
GW-PSH-3610A 36V 10A 360W Programmable Switching DC Power Supply Model
GW-PSH-3620A 36V 20A 720W Programmable Switching DC Power Supply Model
GW-PSH-3630A 36V 30A 1080W Programmable Switching DC Power Supply Model
GW-GRA-403 Rack Adapter Panel Option-HW
GW-GTL-232 RS-232C Cable, 9-pin female to 9-pin, null modem for computer Option-HW
GW-GTL-251 GPIB-USB-HS(High Speed) Option-HW
GW-GTL-122 Test Lead, U type to Alligator Test Lead, Max.Current 40A, 1200mm Option-HW
GW-GTL-248 GPIB Cable, Double Shielded, 2000mm Option-HW
