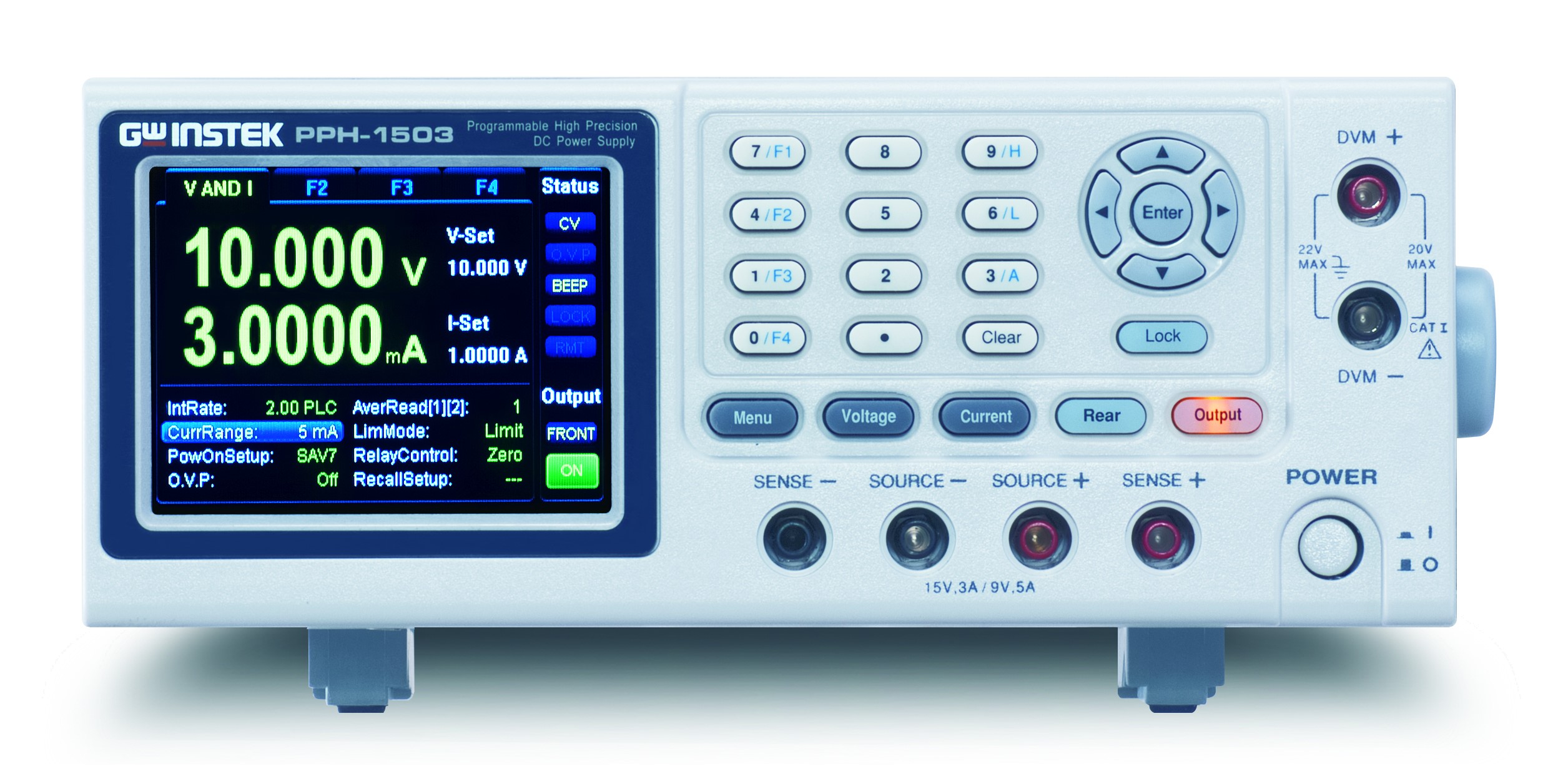

Features for PPH-1503
Dual Range Output (0~15V/0~3A) or (0~9V/0~5A)
3.5 Inch TFT LCD Display
Constant Voltage and Constant Current Operation
Built-in DVM Measurement Function
High Measurement REsolution (1mV/0.1mA for 5A Range);(1mV/0.1uA for 5mA Range)
EXternal Relay Control Output On/Off
Sink Current Capability (Maximum:2A)
Digital Panel Control
Selectable Output and Input (DVM) Ports From Front or Rear Panel
Key Lock Function
5 Sets of Preset Memory Including Power Output ON/OFF States
High Speed Transient Recovery Time(<40us within 100mV ; <80us within 20mV)
OVP/OCP/OTP Protection to Prevent DUT Damage
Standard Multiple Interfaces: USB / LAN /GPIB
Labview Driver and PC Remote Control Software

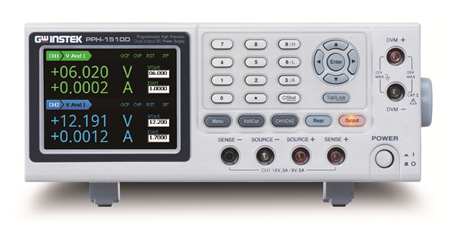

Features for PPH-1503D & PPH-1506D & PPH-1510DDual Channel DC Power Output
PPH-1503D (CH1: 0~15V/0~3A or 0~9V/0~5A; CH2: 0~12V/0~1.5A)
PPH-1506D (CH1: 0~15V/0~3A or 0~9V/0~5A; CH2: 0~12V/0~3A)
PPH-1510D (CH1: 0~15V/0~3A or 0~9V/0~5A, 0~4.5V/0~10A(Rear terminal); CH2: 0~12V/0~3A)
3.5 inch TFT LCD Display
Built-in DVM Measurement Function
High Measurement Resolution (1mV/0.1μA for 5mA Range)
Current Sink Function (Maximum : 3.5A)
Pulse Current Measurement
Long Integration Current Measurement
Sequence Function (Sequential power output)
Built-in Battery Simulation Function
OVP, OCP, OTP & Temperature Display for Heat Sink
Support USB (Device& Host)/GPIB/LAN
5 Groups of Save/Recall Setting
External RELAY Control
