PSW Series Programmable DC Power Supply

T&M Equipment → Power Supplies → DC Power Supplies → PSW Series Programmable DC Power Supply

Sipariş No : GW-PSW

PSW Series Programmable DC Power Supply

Programmable DC Power Supply

Features
Voltage Rating: 30V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W
Constant Power Output for Multiple Range (V&I) Operation
CV/CC Priority; Particularly Suitable for the Battery and LED Industry
Adjustable Slew Rate
Series Operation: Up to 2 units (30V, 80V, 160V models only)
Parallel Operation: Up to 3 units
High Efficiency and High Power Density
1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W/720W/1080W
Standard Interface: LAN,USB,Analog Control Interface
Optional Interface: GPIB-USB Adaptor, RS232-USB Cable
LabView Driver
Model/Option Selection Matrix
Stock Code:
GW-PSW-30-36
Details:
30V 36A 360W Programmable Single Output DC Power Supply
Option Type:
Model
Stock Code:
GW-PSW-30-72
Details:
30V 72A 720W Programmable Single Output DC Power Supply
Option Type:
Model
Stock Code:
GW-PSW-30-108
Details:
30V 108A 1080W Programmable Single Output DC Power Supply
Option Type:
Model
Stock Code:
GW-PSW-80-13,5
Details:
80V 13,5A 360W Programmable Single Output DC Power Supply
Option Type:
Model
Stock Code:
GW-PSW-80-27
Details:

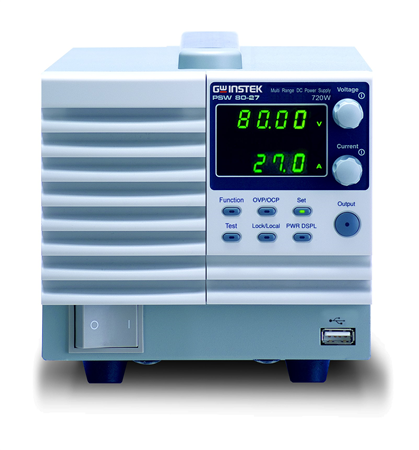

80V 27A 720W Programmable Single Output DC Power Supply
Option Type:
Model
Stock Code:
GW-PSW-80-40,5
Details:

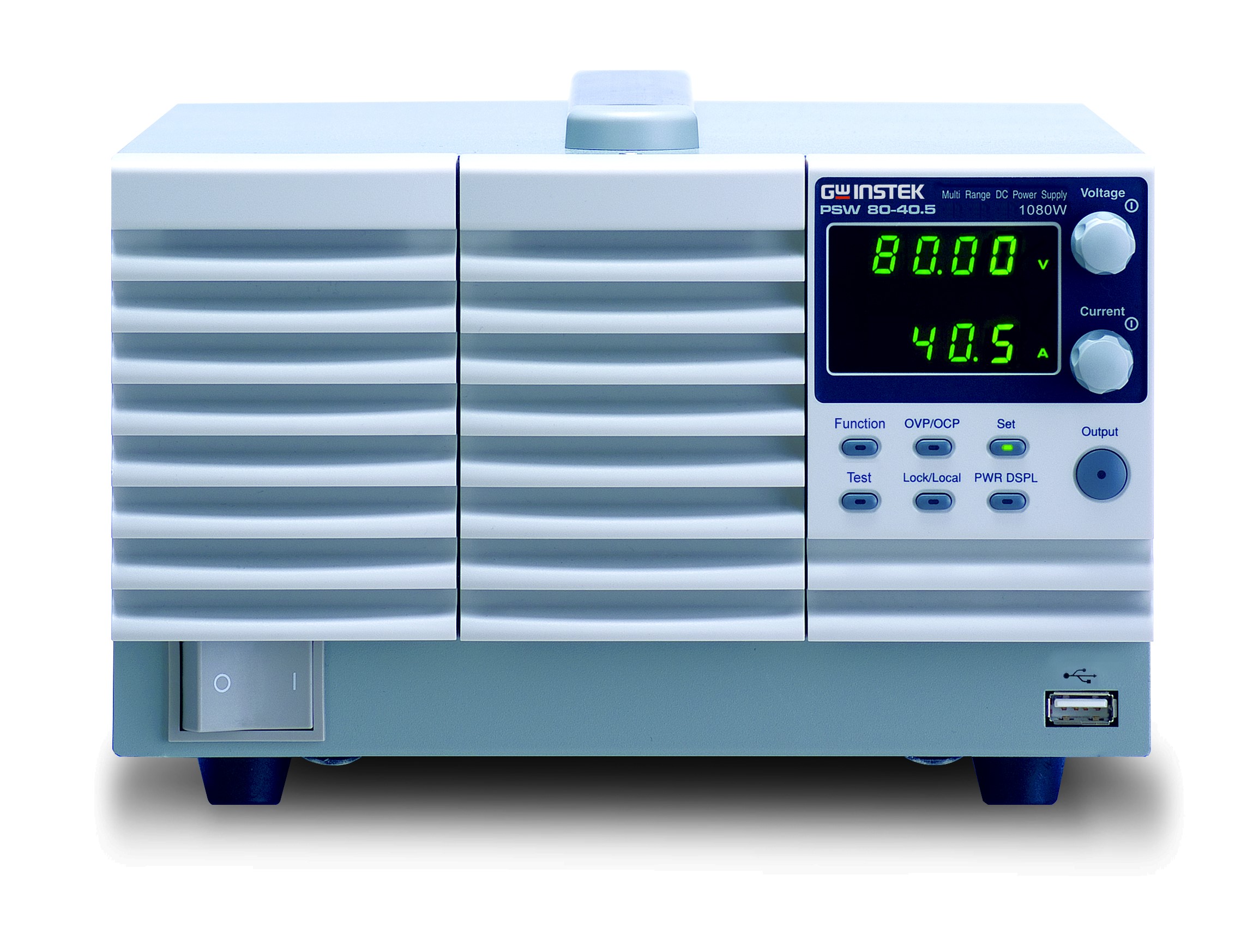

80V 40,5A 1080W Programmable Single Output DC Power Supply
Option Type:
Model
Stock Code:
GW-PSW-160-7,2
Details:
160V 7,2A 360W Programmable Single Output DC Power Supply
Option Type:
Model
Stock Code:
GW-PSW-160-14,4
Details:
160V 14,4A 720W Programmable Single Output DC Power Supply
Option Type:
Model
Stock Code:
GW-PSW-160-21,6
Details:
160V 21,6A 1080W Programmable Single Output DC Power Supply
Option Type:
Model
Stock Code:
GW-PSW-250-4,5
Details:
250V 4,5A 360W Programmable Single Output DC Power Supply
Option Type:
Model
Stock Code:
GW-PSW-250-9
Details:
250V 9A 720W Programmable Single Output DC Power Supply
Option Type:
Model
Stock Code:
GW-PSW-250-13,5
Details:
250V 13,5A 1080W Programmable Single Output DC Power Supply
Option Type:
Model
Stock Code:
GW-PSW-800-1,44
Details:
800V 1,44A 360W Programmable Single Output DC Power Supply
Option Type:
Model
Stock Code:
GW-PSW-800-2,88
Details:
800V 2,88A 720W Programmable Single Output DC Power Supply
Option Type:
Model
Stock Code:
GW-PSW-800-4,32
Details:
800V 4,32A 1080W Programmable Single Output DC Power Supply
Option Type:
Model
Stock Code:
GW-PSW-001
Details:
Accessory Kit
Option Type:
Option-HW
Stock Code:
GW-PSW-002
Details:
Simple IDC Tool
Option Type:
Option-HW
Stock Code:
GW-PSW-003
Details:
Contact Removal Tool
Option Type:
Option-HW
Stock Code:
GW-PSW-005
Details:
Cable for 2 Units of PSW-Series in Series Mode Connection(for PSW 30V/80V/160V)
Option Type:
Option-HW
Stock Code:
GW-PSW-006
Details:
Cable for 2 Units of PSW-Series in Parallel Mode Connection
Option Type:
Option-HW
Stock Code:
GW-PSW-007
Details:
Cable for 3 Units of PSW-Series in Parallel Mode Connection
Option Type:
Option-HW
Stock Code:
GW-GET-001
Details:
Extended Terminal(for PSW 30V/80V/160V)
Option Type:
Option-HW
Stock Code:
GW-GET-002
Details:
Extended Terminal(for PSW 250V/800V)
Option Type:
Option-HW
Stock Code:
GW-GTL-130
Details:
Test lead : 2 x red, 2 x black(for PSW 250V/800V)
Option Type:
Option-HW
Stock Code Details Option Type
GW-PSW-30-36 30V 36A 360W Programmable Single Output DC Power Supply Model
GW-PSW-30-72 30V 72A 720W Programmable Single Output DC Power Supply Model
GW-PSW-30-108 30V 108A 1080W Programmable Single Output DC Power Supply Model
GW-PSW-80-13,5 80V 13,5A 360W Programmable Single Output DC Power Supply Model
GW-PSW-80-27 80V 27A 720W Programmable Single Output DC Power Supply Model
GW-PSW-80-40,5 80V 40,5A 1080W Programmable Single Output DC Power Supply Model
GW-PSW-160-7,2 160V 7,2A 360W Programmable Single Output DC Power Supply Model
GW-PSW-160-14,4 160V 14,4A 720W Programmable Single Output DC Power Supply Model
GW-PSW-160-21,6 160V 21,6A 1080W Programmable Single Output DC Power Supply Model
GW-PSW-250-4,5 250V 4,5A 360W Programmable Single Output DC Power Supply Model
GW-PSW-250-9 250V 9A 720W Programmable Single Output DC Power Supply Model
GW-PSW-250-13,5 250V 13,5A 1080W Programmable Single Output DC Power Supply Model
GW-PSW-800-1,44 800V 1,44A 360W Programmable Single Output DC Power Supply Model
GW-PSW-800-2,88 800V 2,88A 720W Programmable Single Output DC Power Supply Model
GW-PSW-800-4,32 800V 4,32A 1080W Programmable Single Output DC Power Supply Model
GW-PSW-001 Accessory Kit Option-HW
GW-PSW-002 Simple IDC Tool Option-HW
GW-PSW-003 Contact Removal Tool Option-HW
GW-PSW-005 Cable for 2 Units of PSW-Series in Series Mode Connection(for PSW 30V/80V/160V) Option-HW
GW-PSW-006 Cable for 2 Units of PSW-Series in Parallel Mode Connection Option-HW
GW-PSW-007 Cable for 3 Units of PSW-Series in Parallel Mode Connection Option-HW
GW-GET-001 Extended Terminal(for PSW 30V/80V/160V) Option-HW
GW-GET-002 Extended Terminal(for PSW 250V/800V) Option-HW
GW-GTL-130 Test lead : 2 x red, 2 x black(for PSW 250V/800V) Option-HW
