AXOS5 Series Pulse Immunity Test Systems

Pulse Immunity Test Systems : EFT&Burst, Surge, Voltage Dips, Magnetic Field

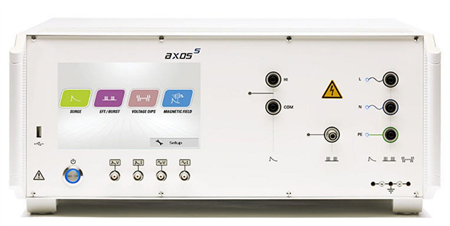

The new AXOS 5 - Compact integrates all of the best features of our stand alone test systems into one single economic solution. It is capable of 5kV EFT/Burst, 5kV Combination Wave (1.2/50us & 8/20us), AC/DC Dips & Interrupts(*) and Pulsed Magnetic Field(**). The unit also includes an integrated single-phase coupling decoupling network (CDN) for EMC testing applications up to 16A.The expandable functionality allows for quick and completely automated testing to the most common IEC, EN, ANSI, IEEE and UL standards. The AXOS unit can either be operated via front panel by large color graphic interface or remotely from the PC. The easy to use menu together with the availability of predefined test routines for different standards makes testing easy and reliable, even for less frequently users. Numerous additional functions such as external start/stop function allows easy integration of the test system also in customer specific test environments.- Requires the DIP 116- Requires the MSURGE-A

  • Easy to operate with manual and automated test modes, software assisted test preparation, pre-defined test routines and visual aided test setups

  • Economic and Efficient: Touch screen guarantees reduction of time and effort - Experience and know-how at a reasonable price

  • Multiple testing functions available in a single unit

  • Safe and reliable operation by using safety interlock, warning lamp and emergency stop functions

  • Voltage and current monitoring of surge impulses and EUT power provides valuable feedback to the test engineer

  • Automatic generation of test report, including test parameters, test setup and test result

Model/Option Selection Matrix
Stock Code:
HF-2490400-AXOS5
Details:
Compact Immunity Test System
Option Type:
Model
Stock Code:
HF-2490401-AXOS5
Details:
Surge Test System
Option Type:
Model
Stock Code:
HF-2490402-AXOS5
Details:
EFT&Burst Test System
Option Type:
Model
Stock Code:
HF-2490403-AXOS5
Details:
Voltage Dips Test System
Option Type:
Model
Stock Code:
HF-2490170-FP-EFT 32M
Details:
3-Phase CDN EFT/Burst 32 A / 690 V
Option Type:
Option-HW
Stock Code:
HF-2495860-FP-EFT 100M2
Details:
3-Phase CDN EFT/Burst 100 A / 690 V
Option Type:
Option-HW
Stock Code:
HF-2491300-IP4A
Details:
Capacitive Coupling Clamp for EFT/Burst
Option Type:
Option-HW
Stock Code:
HF-2490410-DIP116
Details:
Automatic Dips Transformer 16 A 40/70/80%
Option Type:
Option-HW
Stock Code:
HF-2490441-MSURGE-A
Details:
Magnetic Field Test IEC / EN 61000-4-9
Option Type:
Option-HW
Stock Code:
HF-2499960-VTM15000
Details:
Isolation Test 1.2/50 us up to 10 kV
Option Type:
Option-HW
Stock Code:
HF-2499911-PDP8000
Details:
HV Differential Probe 1000:1 for Surge
Option Type:
Option-HW
Stock Code:
HF-2490420-CALIBRATION
Details:
Accredited ISO 17025 Calibration AXOS5
Option Type:
Option-SW
Stock Code:
HF-2490440
Details:
Remote Control Software for AXOS5
Option Type:
Option-SW
Stock Code:
HF-4700975
Details:
Reporting Software for AXOS5
Option Type:
Option-SW
Stock Code Details Option Type
HF-2490400-AXOS5 Compact Immunity Test System Model
HF-2490401-AXOS5 Surge Test System Model
HF-2490402-AXOS5 EFT&Burst Test System Model
HF-2490403-AXOS5 Voltage Dips Test System Model
HF-2490170-FP-EFT 32M 3-Phase CDN EFT/Burst 32 A / 690 V Option-HW
HF-2495860-FP-EFT 100M2 3-Phase CDN EFT/Burst 100 A / 690 V Option-HW
HF-2491300-IP4A Capacitive Coupling Clamp for EFT/Burst Option-HW
HF-2490410-DIP116 Automatic Dips Transformer 16 A 40/70/80% Option-HW
HF-2490441-MSURGE-A Magnetic Field Test IEC / EN 61000-4-9 Option-HW
HF-2499960-VTM15000 Isolation Test 1.2/50 us up to 10 kV Option-HW
HF-2499911-PDP8000 HV Differential Probe 1000:1 for Surge Option-HW
HF-2490420-CALIBRATION Accredited ISO 17025 Calibration AXOS5 Option-SW
HF-2490440 Remote Control Software for AXOS5 Option-SW
HF-4700975 Reporting Software for AXOS5 Option-SW
