RadiCoupler - Coupling Decoupling Networks

Full Range of Coupling Decoupling Networks (CDN’s) for Conducted Immunity Testing

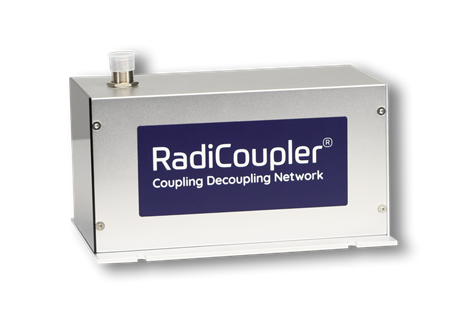

The RadiCoupler® Coupling / Decoupling Network (CDN) is intended for conducted immunity testingon EUT cables. The RadiCoupler® is full compliant to the international standards CISPR16, IEC61000-4-6, EN55015 and EN55035.The models cover a frequency range from 100 kHz to 300 MHz. TheRadiCoupler® has a robust RF N-type input connector and uses a magnetic-grounding connection foreasy and conductive.

Components
The RadiCoupler® is delivered with the following items:
• The RadiCoupler® Coupling / Decoupling Network
• 2x calibration adapter connectors
• Traceable calibration certificate (ISO17025 accredited calibration is optional)
• USB stick containing the (digital) User Manual

Mains Coupling/Decoupling Networks (CPL):

  1. CPL M1 16A

    • Application: 1 line, 16 A

    • EUT Port Connector: 4 mm safety banana

    • AE Port Connector: 4 mm safety banana

  2. CPL M2 16A

    • Application: 2 line, 16 A

    • EUT Port Connector: 4 mm safety banana

    • AE Port Connector: 4 mm safety banana

  3. CPL M3 16A

    • Application: 3 line, 16 A

    • EUT Port Connector: 4 mm safety banana

    • AE Port Connector: 4 mm safety banana

  4. CPL M3 32A

    • Application: 3 line, 32 A

    • EUT Port Connector: 4 mm safety banana

    • AE Port Connector: 4 mm safety banana

🔌 Unscreened Coupling/Decoupling Networks (CPL):

  1. CPL T2

    • Application: 2 line, balanced

    • EUT Port Connector: 4 mm safety banana

    • AE Port Connector: 4 mm safety banana

  2. CPL T4 RJ11

    • Application: 4 line, balanced

    • EUT Port Connector: RJ11

    • AE Port Connector: RJ11

  3. CPL T8 RJ45

    • Application: 8 line

    • EUT Port Connector: RJ45

    • AE Port Connector: RJ45

🛡️ Screened Coupling/Decoupling Networks (CPL):

  1. CPL S8 RJ45

    • Application: 8 line

    • EUT Port Connector: RJ45

    • AE Port Connector: RJ45

  2. CPL USB-C

    • Application: USB

    • EUT Port Connector: USB-B

    • AE Port Connector: USB-A

  3. CPL USB-P

    • Application: USB

    • EUT Port Connector: USB-A

    • AE Port Connector: USB-B

  4. CPL USB-3.0-C

    • Application: USB 3.0

    • EUT Port Connector: USB-B 3.0

    • AE Port Connector: USB-A 3.0

  5. CPL USB-3.0-P

    • Application: USB 3.0

    • EUT Port Connector: USB-A 3.0

    • AE Port Connector: USB-B 3.0

  6. CPL HDMI

    • Application: HDMI

    • EUT Port Connector: HDMI

    • AE Port Connector: HDMI

🎧 Unbalanced Coupling/Decoupling Networks (CPL):

  1. CPL AF2

    • Application: 2 line, unbalanced

    • EUT Port Connector: 4 mm safety banana

    • AE Port Connector: 4 mm safety banana

  2. CPL AF3

    • Application: 3 line, unbalanced

    • EUT Port Connector: 4 mm safety banana

    • AE Port Connector: 4 mm safety banana

  3. CPL AF4

    • Application: 4 line, unbalanced

    • EUT Port Connector: 4 mm safety banana

    • AE Port Connector: 4 mm safety banana



Model/Option Selection Matrix
Stock Code:
DR-CPL M1 16A
Details:
1 Line, 16A Coupling Decoupling Network (Mains Cable)
Option Type:
Model
Stock Code:
DR-CPL M2 16A
Details:
2 Line, 16A Coupling Decoupling Network (Mains Cable)
Option Type:
Model
Stock Code:
DR-CPL M3 16A
Details:
3 Line, 16A Coupling Decoupling Network (Mains Cable)
Option Type:
Model
Stock Code:
DR-CPL T2
Details:
2 Line, Balanced Coupling Decoupling Network (Unscreened Cable)
Option Type:
Model
Stock Code:
DR-CPL T4 RJ11
Details:
4 Line, Balanced Coupling Decoupling Network (Unscreened Cable)
Option Type:
Model
Stock Code:
DR-CPL T8 RJ45
Details:
8 Line, Coupling Decoupling Network (Unscreened Cable)
Option Type:
Model
Stock Code:
DR-CPL S8 RJ45
Details:
8 Line, Coupling Decoupling Network (Screened Cable)
Option Type:
Model
Stock Code:
DR-CPL USB-C
Details:
USB Coupling Decoupling Network (Screened Cable)
Option Type:
Model
Stock Code:
DR-CPL USB-P
Details:
USB Coupling Decoupling Network (Screened Cable)
Option Type:
Model
Stock Code:
DR-CPL USB 3.0-C
Details:
USB Coupling Decoupling Network (Screened Cable)
Option Type:
Model
Stock Code:
DR-CPL USB 3.0-P
Details:
USB Coupling Decoupling Network (Screened Cable)
Option Type:
Model
Stock Code:
DR-CPL HDMI
Details:
HDMI Coupling Decoupling Network (Screened Cable)
Option Type:
Model
Stock Code:
DR-CPL AF2
Details:
2 Line, Unbalanced Coupling Decoupling Network (Unbalanced Cable)
Option Type:
Model
Stock Code:
DR-CPL AF3
Details:
3 Line, Unbalanced Coupling Decoupling Network (Unbalanced Cable)
Option Type:
Model
Stock Code:
DR-CPL AF4
Details:
4 Line, Unbalanced Coupling Decoupling Network (Unbalanced Cable)
Option Type:
Model
Stock Code Details Option Type
DR-CPL M1 16A 1 Line, 16A Coupling Decoupling Network (Mains Cable) Model
DR-CPL M2 16A 2 Line, 16A Coupling Decoupling Network (Mains Cable) Model
DR-CPL M3 16A 3 Line, 16A Coupling Decoupling Network (Mains Cable) Model
DR-CPL T2 2 Line, Balanced Coupling Decoupling Network (Unscreened Cable) Model
DR-CPL T4 RJ11 4 Line, Balanced Coupling Decoupling Network (Unscreened Cable) Model
DR-CPL T8 RJ45 8 Line, Coupling Decoupling Network (Unscreened Cable) Model
DR-CPL S8 RJ45 8 Line, Coupling Decoupling Network (Screened Cable) Model
DR-CPL USB-C USB Coupling Decoupling Network (Screened Cable) Model
DR-CPL USB-P USB Coupling Decoupling Network (Screened Cable) Model
DR-CPL USB 3.0-C USB Coupling Decoupling Network (Screened Cable) Model
DR-CPL USB 3.0-P USB Coupling Decoupling Network (Screened Cable) Model
DR-CPL HDMI HDMI Coupling Decoupling Network (Screened Cable) Model
DR-CPL AF2 2 Line, Unbalanced Coupling Decoupling Network (Unbalanced Cable) Model
DR-CPL AF3 3 Line, Unbalanced Coupling Decoupling Network (Unbalanced Cable) Model
DR-CPL AF4 4 Line, Unbalanced Coupling Decoupling Network (Unbalanced Cable) Model
