MFG-2000 Series Multi-Channel Function Generator

T&M Equipment → Signal Generators & Frequency Counters → Arbitrary Function Generators → MFG-2000 Series Multi-Channel Function Generator

Sipariş No : GW-MFG-2000

MFG-2000 Series Multi-Channel Function Generator

Multi-Channel Function Generator

Features
Maximum Five Output Channels
- 2 Equivalent Performance Arbitrary Channels Frequency : 1μHz~10/20/30/60/200MHz
- RF Channel Frequency (FG/ARB/MOD) : 160/320MHz
- Pulse Generator Frequency : 25MHz
- Power Amplifier : Low Frequency, 100kHz, Output 20W
True Point by Point Output Arbitrary Waveform Function : 200MSa/s, 100MHz Repetition Rate, 14-bit Resolution,16k Point Memory Depth
Earth Ground Isolation Design Among I/O Terminals and Instrument Chassis
Frequency Counter : 150MHz, 8 bits Frequency Resolution
AM/FM/PM/ASK/FSK/PSK/SUM/PWM Modulation
USB Host/USB Device/LAN (MFG-22XX only)
4.3 Inch TFT Color Display
Model/Option Selection Matrix
Stock Code:
GW-MFG-2110
Details:
10MHz Single Channel Arbitrary Function Generator with Pulse Generator
Option Type:
Model
Stock Code:
GW-MFG-2120
Details:
20MHz Single Channel Arbitrary Function Generator with Pulse Generator
Option Type:
Model
Stock Code:
GW-MFG-2120MA
Details:

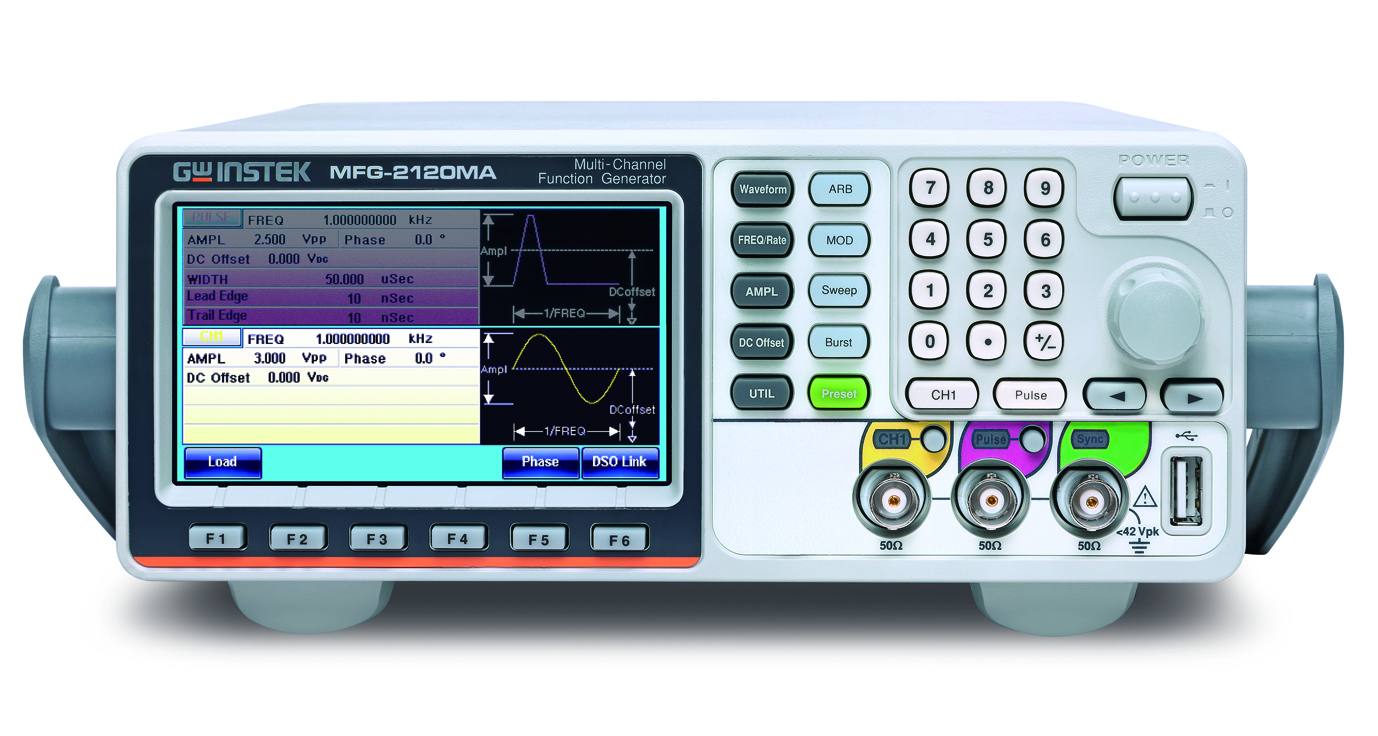

20MHz Single Channel Arbitrary Function Generator with Pulse Generator, Modulation, Power Amplifier
Option Type:
Model
Stock Code:
GW-MFG-2130M
Details:

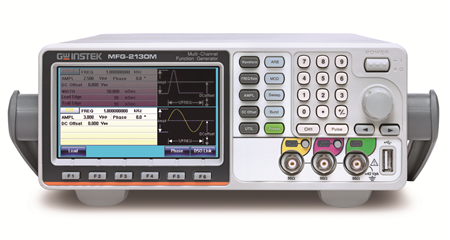

30MHz Single Channel Arbitrary Function Generator with Pulse Generator, Modulation
Option Type:
Model
Stock Code:
GW-MFG-2160MF
Details:

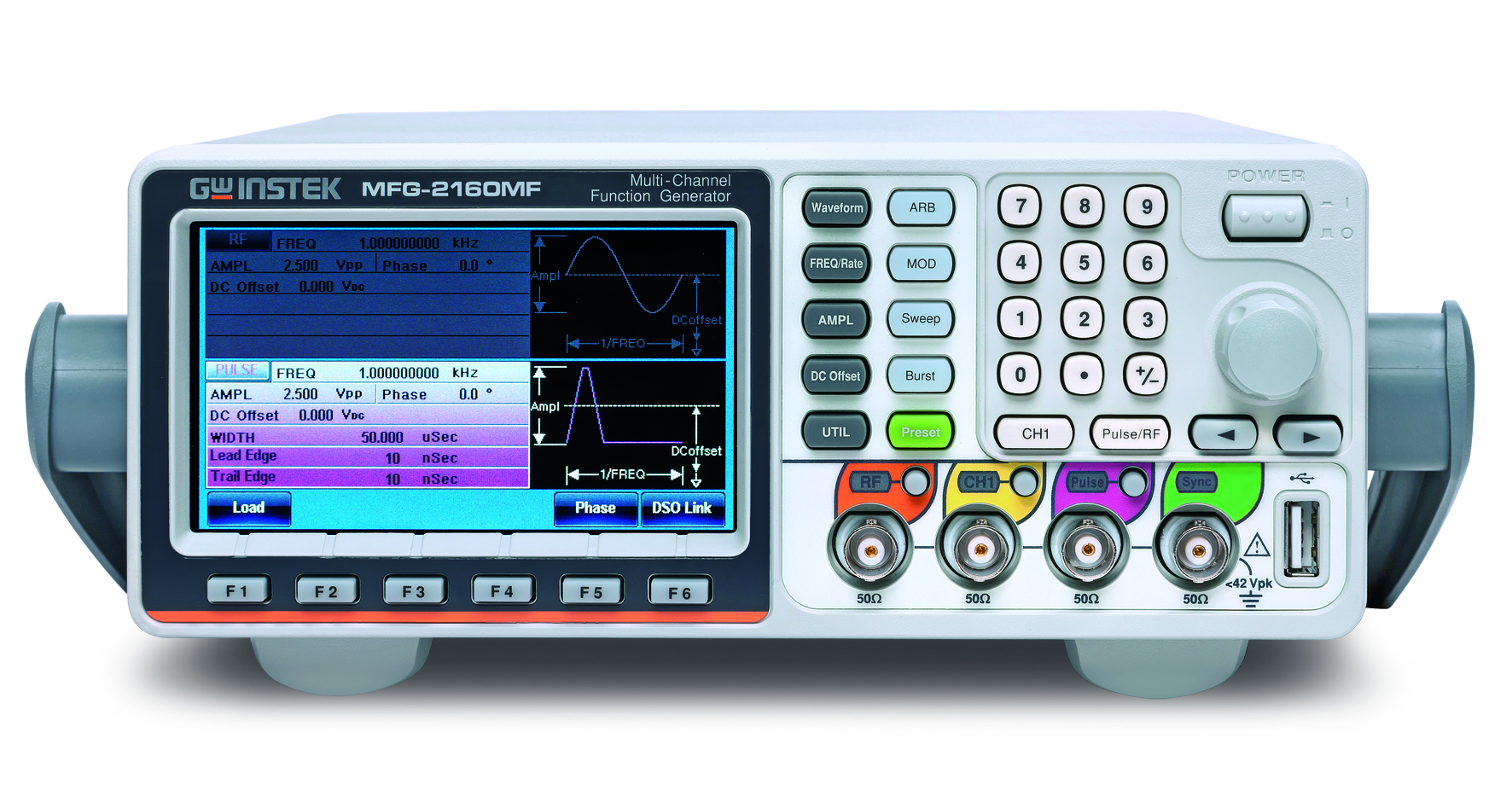

60MHz Single Channel Arbitrary Function Generator with Pulse Generator, Modulation, 160MHz RF Signal Generator
Option Type:
Model
Stock Code:
GW-MFG-2160MR
Details:
60MHz Single Channel Arbitrary Function Generator with Pulse Generator, Modulation, 320MHz RF Signal Generator
Option Type:
Model
Stock Code:
GW-MFG-2230M
Details:
30MHz Dual Channel Arbitrary Function Generator with Pulse Generator, Modulation
Option Type:
Model
Stock Code:
GW-MFG-2260M
Details:

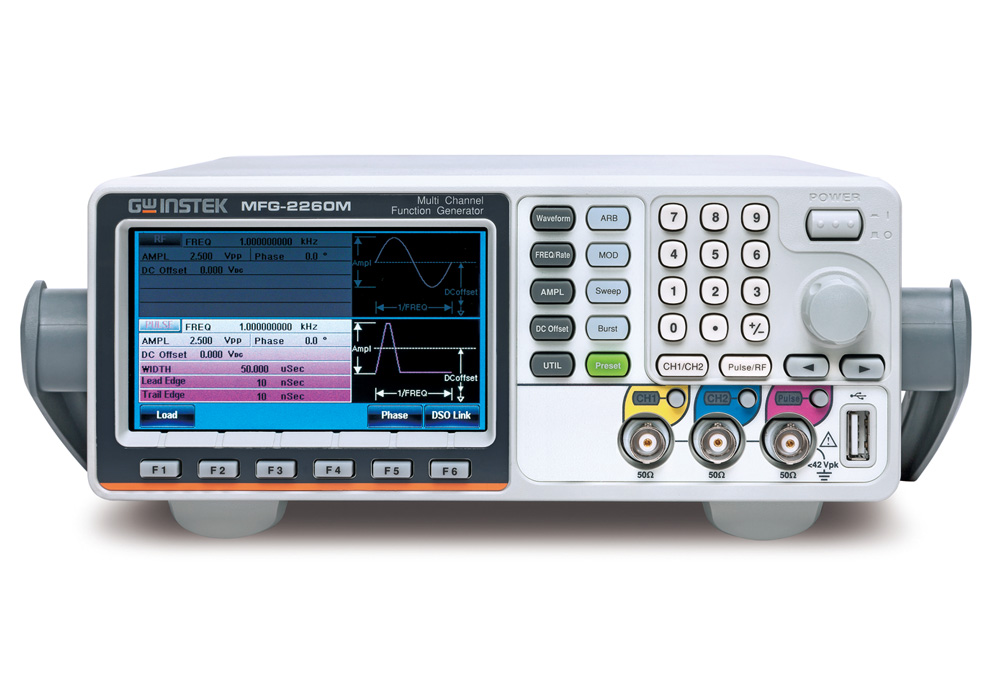

60MHz Dual Channel Arbitrary Function Generator with Pulse Generator, Modulation
Option Type:
Model
Stock Code:
GW-MFG-2260MFA
Details:
60MHz Dual Channel Arbitrary Function Generator with Pulse Generator, Modulation, 160MHz RF Signal Generator, Power Amplifier
Option Type:
Model
Stock Code:
GW-MFG-2260MRA
Details:
60MHz Dual Channel Arbitrary Function Generator with Pulse Generator, Modulation, 320MHz RF Signal Generator, Power Amplifier
Option Type:
Model
Stock Code:
GW-GTL-110
Details:
BNC Cable (for one channel)
Option Type:
Option-HW
Stock Code:
GW-GTL-246
Details:
USB Cable USB 2 0 Type A Type B
Option Type:
Option-HW
Stock Code:
GW-MFG-2220HM
Details:
200MHz Dual Channel Arbitrary Function Generator with Pulse Generator, Modulation
Option Type:
Model
Stock Code Details Option Type
GW-MFG-2110 10MHz Single Channel Arbitrary Function Generator with Pulse Generator Model
GW-MFG-2120 20MHz Single Channel Arbitrary Function Generator with Pulse Generator Model
GW-MFG-2120MA 20MHz Single Channel Arbitrary Function Generator with Pulse Generator, Modulation, Power Amplifier Model
GW-MFG-2130M 30MHz Single Channel Arbitrary Function Generator with Pulse Generator, Modulation Model
GW-MFG-2160MF 60MHz Single Channel Arbitrary Function Generator with Pulse Generator, Modulation, 160MHz RF Signal Generator Model
GW-MFG-2160MR 60MHz Single Channel Arbitrary Function Generator with Pulse Generator, Modulation, 320MHz RF Signal Generator Model
GW-MFG-2230M 30MHz Dual Channel Arbitrary Function Generator with Pulse Generator, Modulation Model
GW-MFG-2260M 60MHz Dual Channel Arbitrary Function Generator with Pulse Generator, Modulation Model
GW-MFG-2260MFA 60MHz Dual Channel Arbitrary Function Generator with Pulse Generator, Modulation, 160MHz RF Signal Generator, Power Amplifier Model
GW-MFG-2260MRA 60MHz Dual Channel Arbitrary Function Generator with Pulse Generator, Modulation, 320MHz RF Signal Generator, Power Amplifier Model
GW-GTL-110 BNC Cable (for one channel) Option-HW
GW-GTL-246 USB Cable USB 2 0 Type A Type B Option-HW
GW-MFG-2220HM 200MHz Dual Channel Arbitrary Function Generator with Pulse Generator, Modulation Model
