With the devices of this series, you can take ground measurements with stakes and stakeless. With these devices, you can take measurements from 2 or 3 points.
For DET3TD and DET3TC
2 and 3 point testing
ART (Attached Rod Technique) testing capability with DET3TC
Choice of digital or analog display
Warning indicators prevent test failure
IP54 rated
Complete with leads, stakes and rugged carry case
Simple one button operation
Calibration test certificate included
Optional earth testing kit (ETK) available
The DET3 contractor series includes

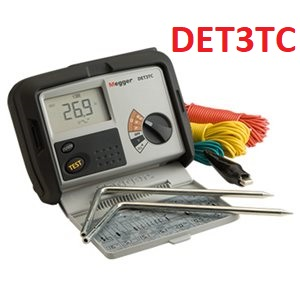

DET3TC: capable of testing on-site grounds without disconnecting the utility connection

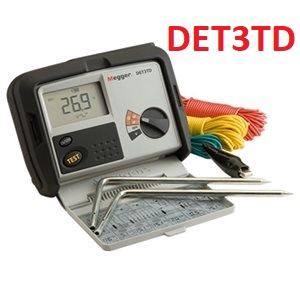

DET3TD: for basic requirements it provides digital ground testing and bond test capabilities

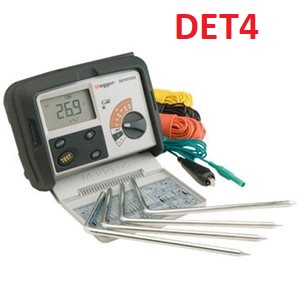

For DET4 Series
2, 3 and 4 point testing
Stakeless or clamp-on testing option
ART (Attached Rod Technique) capability
Multiple, user selectable test frequencies
Resistance measurement range to 200 kΩ
IP54 rated
Warning indicators prevent test failure
Simple one button operation
Included leads, stakes, calibration certificate and rugged carry case
Optional earth testing kit (ETK) available
The DET4 contractor series includes
DET4TD2: Dry-cell battery powered basic 4-terminal tester
DET4TR2: Rechargeable battery powered basic 4-terminal tester
DET4TC2: Dry-cell battery powered 4-terminal tester with selectable test frequencies, greater measurement sensitivity and attached rod technique and stakeless measurement capability
DET4TCR2: Rechargeable battery powered 4-terminal tester with selectable test frequencies, greater measurement sensitivity and attached rod technique and stakeless measurement capability

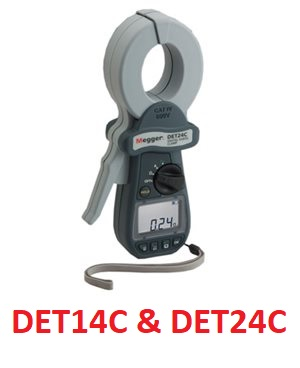

For DET14C and DET24C
Elliptical clamp shape improves access to earth cables and straps up to 50 mm
Low maintenance flat jaw interface
Measures ground resistance from 0.05 Ω to 1500 Ω
Measures true RMS ground leakage current from 0.5 mA rms to 35 A rms
CAT IV 600 V safety rating
Backlit LCD display
The DET14C and DET24C represent a new generation of earth/ground clamp-on resistance testers. These instruments induce a test current into earth systems and measure ground resistance in multi ground installations without needing to disconnect the ground. They offer market leading access, advanced features, simple operation and CAT IV 600 V safety protection.
For DET2/3
High resolution of 1 mΩ, ideal for large earth (ground) systems
Versatile tests modes
High accuracy for earth (ground) electrode grid and soil resistivity tests
Rechargeable battery power that can last all day with a fast re-charge (up to 10 hours)
Robust instrument with IP65 protection
Automatic test frequency selection, with filters and high current features
Diagnostic trace display
Data storage
Large colour display that shows numeric and graphical results
Optional earth testing kit (ETK) available
The DET2/3 is a robust and compact automatic earth (ground) test instrument designed to measure earth electrode resistance and soil resistivity. For use on large or more complex earth systems, which include communications earth systems and difficult test environments, it can be used to test in accordance with BS 7430 (earthing / grounding), BS-EN-62305 (Lightning Protection), BS-EN-50122-1 (Railway Applications), and IEEE Standard 81.
Model/Option Selection Matrix
|
|
Stock Code
|
Details
|
Option Type
|
|
|
MG-DET3TC |
Digital Ground Tester (2 and 3 points testing) |
Model |
|
|
MG-DET3TD |
Digital Ground Tester (2 and 3 points testing) |
Model |
|
|
MG-DET4TCR2 |
Digital Ground Tester (2, 3 and 4 points testing) |
Model |
|
|
MG-DET4TD2 |
Digital Ground Tester (2, 3 and 4 points testing) |
Model |
|
|
MG-DET4TR2 |
Digital Ground Tester (2, 3 and 4 points testing) |
Model |
|
|
MG-DET14C |
Digital Clamp Ground Tester |
Model |
|
|
MG-DET24C |
Digital Clamp Ground Tester |
Model |
|
|
MG-DET2/3 |
Advanced Earth (Ground) Tester |
Model |
|
|
MG-1001-012 |
ICLAMP Current measuring clamp |
Option-HW |
|
|
MG-6220-803 |
Right angled terminal adaptor set |
Option-HW |
|
|
MG-6220-804 |
2 replacement earth test spikes (200 mm, 8 mm dia.) |
Option-HW |
|
|
MG-6220-805 |
3 replacement test leads (15 m, 10 m, 3 m) |
Option-HW |
|
|
MG-21500-072 |
"Getting down to earth" A Megger guide to earth testing |
Option-HW |
|
|
MG-6220-850 |
Black crocodile clip (1) |
Option-HW |
|
|
MG-1001-858 |
Leadset |
Option-HW |
|
|
MG-6220-806 |
Replacement ground test leads (x4) for included kit (15 m, 10 m, 10 m, 3 m) |
Option-HW |
|
|
MG-6220-839 |
Replacement auger stake for professional kit |
Option-HW |
|
|
MG-1000-349 |
Replacement cable reel (50 m, red cable) for professional kit |
Option-HW |
|
|
MG-1000-350 |
Replacement cable reel (50 m, black cable) for professional kit |
Option-HW |
|
|
MG-1000-361 |
Replacement cable reel (30 m, yellow cable) for professional kit |
Option-HW |
|
|
MG-1000-843 |
Replacement cable reel (30 m, green cable) for professional kit |
Option-HW |
|
|
MG-6280-370 |
Replacement external AC/DC adaptor (DET4TCR2 only) |
Option-HW |
|
|
MG-1001-013 |
VCLAMP Voltage inducing clamp, calibration check pcb (for stakeless test) and lead |
Option-HW |
|
|
MG-1000-435 |
Calibration check box (25 Ohm) |
Option-HW |
|
|
MG-6320-245 |
Professional groung testing kit 2 x 50 m, 2 x 30 m, 4 auger stakes, tape measure, in hard carry case |
Option-HW |
|
|
MG-6220-375 |
Vehicle 12 V socket charger (DET4TCR2 only) |
Option-HW |
|
|
MG-6310-77 |
Earth testing kit for DET2/2 |
Option-HW |
|
|
MG-6121-119 |
Reel of cable, 50 m [164 ft. approx] |
Option-HW |
|
|
MG-1007-036 |
Terminal post to 4mm skt adaptor set (x4) |
Option-HW |
|
|
MG-1010-518 |
Clamp MVC1010 for DET2/3 |
Option-HW |
|
|
MG-1010-183 |
12 VDC power lead |
Option-HW |
|
|
MG-6220-803 |
Terminal adapter, detachable retro-fit for C1, P1, P2, C2 connectors |
Option-HW |
|
|
MG-1010-793 |
Power supply 18V-5A |
Option-HW |
