For MIT515
Measures up to 10 TΩ
Selectable test voltage from 250 to 5000 V
PI, DAR, DD test
Improved productivity – operate from line power/mains if battery dead
Li ion battery - extended capacity, rapid charge
CATIV 600 V safety rating

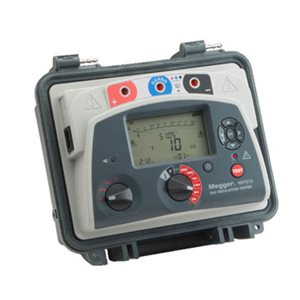

Offering CAT IV, the MIT515 is the simplest of Megger's new range of small light 5 kV insulation resistance testers for the testing and maintenance of high voltage electrical equipment. Enclosed in a tough case it is both smaller and lighter than its predecessor making it even easier to carry and store.
Now equipped with lithium ion fast rechargeable batteries, the instrument has a large, clear, easy to read, display making it equally suitable for use in both bright sunlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition, the elapsed time of the test is displayed constantly removing the need for separate timer.
For MIT525
Measures up to 10 TΩ
PI, DAR, DD, SV and ramp test
Improved productivity – operate from line power/mains if battery dead
Li ion battery - extended capacity, rapid charge
Advanced memory with time/date stamp
CATIV 600 V safety rating

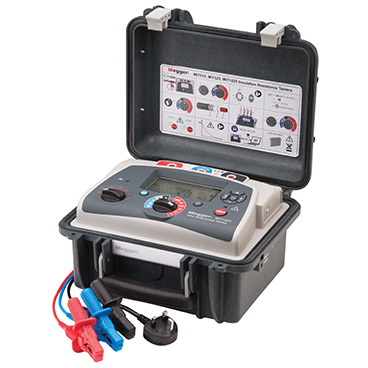

Offering CAT IV, the MIT525 is compact, light 5 kV insulation resistance tester for the diagnostic testing and maintenance of high voltage electrical equipment. It is both smaller and lighter than its predecessor, making it even easier to carry and store.
As well as measuring insulation resistance to 10 TΩ, the MIT525 also offers various diagnostic tests such as polarisation index, dielectric absorption ratio, step voltage, dielectric discharge and ramp testing.
Now equipped with lithium ion fast rechargeable batteries, the instrument has a large, clear, easy-to-read display, making it equally suitable for use in both bright sunlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition, the elapsed time of the test is displayed constantly removing the need for separate timer.
Model/Option Selection Matrix
|
|
Stock Code
|
Details
|
Option Type
|
|
|
MG-MIT515 |
DC Insulation Resistance Testers 5kV |
Model |
|
|
MG-MIT525 |
DC Insulation Resistance Testers 5kV with datalogger feature |
Model |
|
|
MG-1002-913 |
Fused test probe and clip lead set for MIT515 and MIT525 |
Option-HW |
|
|
MG-6220-822 |
Control Circuit Test Set for MIT515 and MIT525 |
Option-HW |
|
|
MG-1002-645 |
3 x 5 m with large insulated clips for MIT515, MIT525 |
Option-HW |
|
|
MG-1002-646 |
3 x 8 m with large insulated clips for MIT515, MIT525 |
Option-HW |
|
|
MG-1002-647 |
3 x 10 m with large insulated clips for MIT515, MIT525 |
Option-HW |
|
|
MG-1002-648 |
3 x 15 m with large insulated clips for MIT515, MIT525 |
Option-HW |
|
|
MG-1002-641 |
3 x 5 m with medium insulated clips for MIT515, MIT525 |
Option-HW |
|
|
MG-1002-642 |
3 x 8 m with medium insulated clips for MIT515, MIT525 |
Option-HW |
|
|
MG-1002-643 |
3 x 10 m with medium insulated clips for MIT515, MIT525 |
Option-HW |
|
|
MG-1002-644 |
3 x 15 m with medium insulated clips for MIT515, MIT525 |
Option-HW |
|
|
MG-8101-181 |
3m Compact Bare Test Clip for MIT515, MIT525 |
Option-HW |
|
|
MG-8101-182 |
5m Compact Bare Test Clip for MIT515, MIT525 |
Option-HW |
|
|
MG-8101-183 |
15m Compact Bare Test Clip for MIT515, MIT525 |
Option-HW |
|
|
MG-6220-835 |
1 x 3 m, wtih 5 kV screened un-insulated small clips for MIT515, MIT525 |
Option-HW |
|
|
MG-6311-077 |
CB101 - 5kV Calibration Box |
Option-HW |
