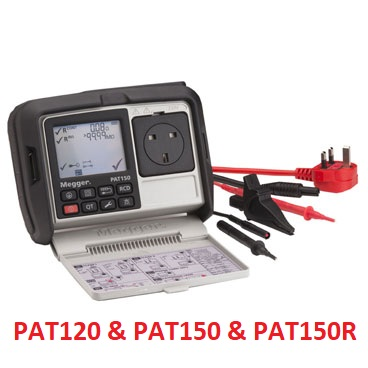

For PAT120 & PAT150 & PAT150R
Tough, rubber armoured with built-in front cover, hardened, scratch-proof display window
Includes 250 V insulation and leakage testing for safe IT testing and surge protected devices
Testing portable and fixed electrical equipment
10 mA and 30 mA portable RCD lead testing (PAT150)
Adjustable PASS test limits (PAT150)
Substitute and mains powered leakage testing (PAT150)
Battery powered with rechargeable options
PAT120 simple PAT tester offer Class I, Class II and power and extension lead testing with fixed pass limits; because it has two insulation test voltages it can be used to test IT and surge protected equipment.

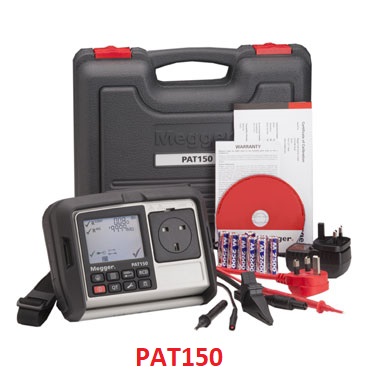

PAT150 full functionality PAT tester adds to the offering Portable RCD (PRCDs) testing at 10 mA and 30 mA, separate tests for continuity, insulation, mains powered leakage testing and SELV measurements using the quick test (QT) button, and can be used for testing fixed appliances.
PAT150R is a rechargeable version of the PAT150.

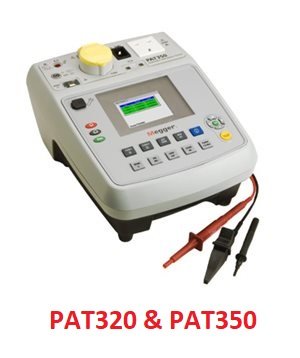

For PAT320 & PAT350
Simple manual or automatic testing
230 V and 110 V operation
Bond testing at 25 A,10 A and 200 mA
Full colour display
Tests portable RCDs and extension leads
Outstanding productivity
The PAT300 series will carry out all test requirements automatically with one button press.
PAT320 is the PAT tester if you need high productivity with a tough and easy to use instrument. If you are moving into PAT testing for the first time or you don’t want the complexity of database management, PAT320 is ideal for you.
PAT350 has additional flash test functions and is the ideal tester for high throughput requirements if you work in a tool hire company or a service centre.

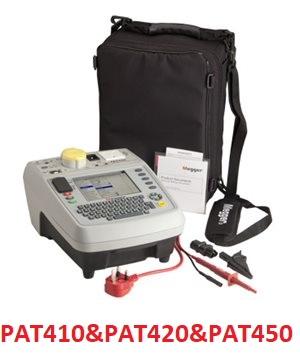

For PAT410 & PAT420 & PAT450
Continuous operation, no need to stop and wait for the tester to cool down
Soft keys to speed you through the testing process
Full PAT testing including RCD testing
Most productive tester in its class
The PAT 400 series introduces a new level of convenience and speed to PAT testing using onboard test results.
PAT400 series weighs only 2.7 kg.
PAT420 offers bond testing at all three currents, 200 mA, 10 A and 25 A and 230 V and 110 V operation. This tester is the choice of those who are full-time industrial or commercial PAT testers.
PAT450 in addition to the three bond test and 230 V and 110 V operation this tester offers 1.5 kV and 3.0 kV flash testing making the perfect tool for hire and repair workshops.
Model/Option Selection Matrix
