Key Features：

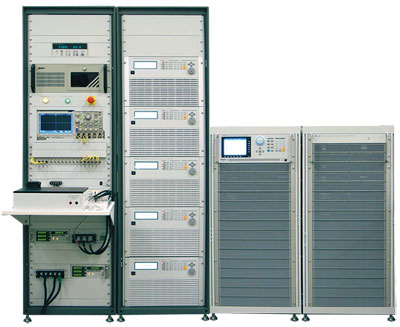

It is a customized system based on Chroma 8000 ATS specializing in verification of EV Supply Equipment (EVSE) and complying with SAE-J1772 in programming the test items for operation.

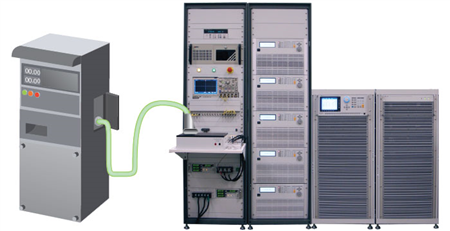

The Electric Vehicle Supply Equipment ATS can simulate various power grid and electric vehicle conditions for EVSE testing EVSE ATS Fully complies with SAE-J1772, CNS15511, GB/T 20234.2 test requirements.

Optimized standard test items:

The user only needs to confirm the test conditions and specifications

• AC Energy Transfer Test S2_Off_1
• AC Energy Transfer Test S2_On_1
• Control Pilot Abnormal Test-Foward_1
• Control Pilot Signal Test_1
• Couple Disconnection Test_1
• Current Capacticy Test_1
• EVSE Invalid Test_1
• Harmonic Distortion Immunity Test_1
• Input/Output Test_1
• Voltage Interruption & Variation Test_1

Model/Option Selection Matrix
