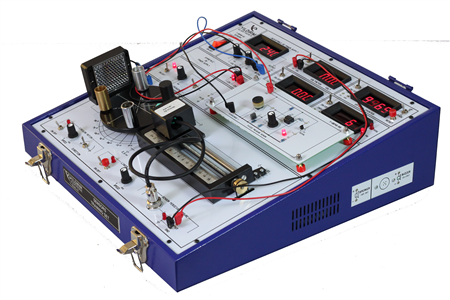

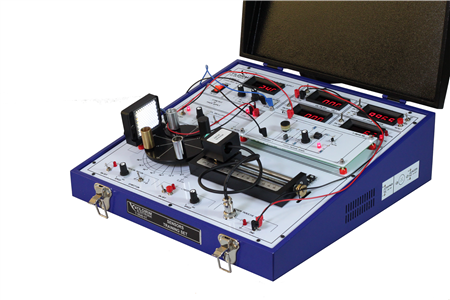

SENSOR APPLICATIONS TRAINING SET

Sensor Application Training Set shall consist of Main Unit and application modules. The set shall consist of Variable – Fixed Power Supply, Frequency meter, TTL Oscillator, Voltmeter, Ammeter, Up-Down Counter and application Components to do sensor applications.

The detection distance with different type sensors, shall counting the movements of different type materials, sensor operation frequency, operation voltage and current can be monitored on present panel meters with linear and circular motion mechanism on the set.

Sensor Application Set has 12 different modules and which can use the set and is designed for sensor applications.

2 mm sockets and 2 mm connection leads in different colors shall used in the set.

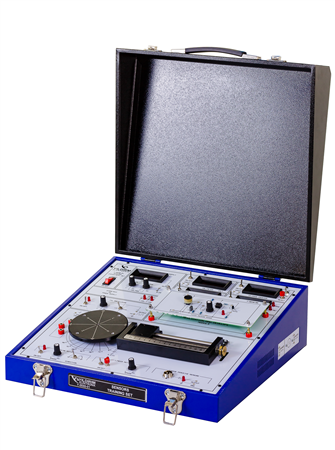

The set shall placed with cover in a shock proof separable case. It shall designed for using horizontally and shall suitable for storing vertically.

The theory, application areas, the definition of the components and their figures in practice shall given detailed in the introduction of every subject in the Experiment Book. The book shall contain Chapters “Preparation information” supported with block diagrams and graphics, ”how to do the experiment” where the real pictures are used and ”conclusion” where the results and the questions regarding the experiments are explained detailed.

TECHNICAL SPECIFICATIONS

Supply Voltage                 : 220V AC / 50Hz ±10
DC Variable Power Supply         : 0 - 24V DC / 2A, Current protected
DC Fixed Symmetrical Power Supply     : (-12V) - 0 - (+12V) DC / 0.5A
Voltmeter                 : 0 - 99.9V, 3½ Digit LED Display
Ammeter                 : 0 - 9.99A, 3½ Digit LED Display
Frequency Range             : 1Hz - 500KHz max.
TTL Oscillator                 : 1Hz - 1KHz square wave

APPLICATION COMPONENTS ON THE SET

•    1 Pc Up-Down Counter, 4 Digit LED Display
•    1 Pc Linear Motion, mm scaled, speed and direction controlled
•    1 Pc Circular Motion, graduate scaled, speed and direction controlled
•    1 Pc Proximity sensor house
•    1 Pc Sensor connection point with power connection and output measurement terminal
•    2 Pcs Limit Switch
•    1 Pc Reflector house
•    2 Pcs 12V Fleming Lamp
•    1 Pc Speaker
•    1 Pc Buzzer

SYSTEM SHALL INCLUDE

Main Unit         : 1 Pc , (Dimensions 400mm x 45-120mm x 420mm), Metal Case
12 Pcs Application Modules

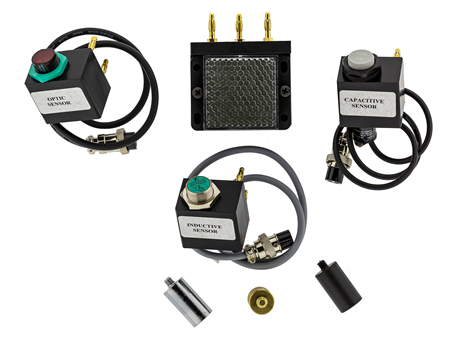

Sensors     : Inductive Proximity Sensor 1 Pc, Capacitive Proximity Sensor 1 Pc, Optical Proximity Sensor 1 Pc
7 Pcs Different materials Objects
2mm Connection Leads     : Min 24 Pcs, in 4 different colors
Power Cable         : 1 Pc, IEC, 2m
1 Pc Experiment Book


Experiment Module - 1
• Examination of Light Emitting Diode (LED)
• Examination of Infrared Led diode

Experiment Module - 2
• Examination of Photo diode
• Examination of Photo transistor
• Examination of Infrared (IR) receiver - transmitter
• Examination of Distance Measurement Sensor

Experiment Module - 3
• Examination of Light Dependent Resistance (LDR)
• Examination of Solar battery (Photo battery)
• Examination of Opto Coupler

Experiment Module - 4
• Examination of Negative coefficient resistor (NTC)
• Examination of Positive coefficient resistor (PTC)

Experiment Module - 5
• Examination of PT type thermocouple
• Examination of K type thermocouple
• Examination of IC type thermocouple

Experiment Module - 6
• Examination of PIR sensor

Experiment Module - 7
• Examination of Hall Effect sensor
• Examination of Reed relay
• Examination of Mercury Contact
• Examination of Limit Switch

Experiment Module - 8
• Examination of Piezo electrical elements
• Examination of Piezo pressure sensor

Experiment Module - 9
• Examination of Load Cell

Experiment Module - 10
• Examination of Voice sensors

Experiment Module - 11
• Examination of Ultrasonic sensor

Experiment Module - 12
• Examination of Gas sensors
• Examination of Humidity sensors

Proximity Sensors
• Measuring the detection distance of Capacitive Proximity sensor
• Measuring the hysteresis percentage of Capacitive Proximity Sensor
• Measuring the detection angle of Capacitive Proximity Sensor
• Measuring the switching frequency of Capacitive Proximity Sensor
• Measuring the detection distance of Inductive Proximity Sensor
• Measuring the hysteresis percentage of Inductive Proximity Sensor
• Measuring the detection angle of Inductive Proximity Sensor
• Measuring the switching frequency of Inductive Proximity Sensor
• Examination of reflector mirrored Optical Proximity Switch
