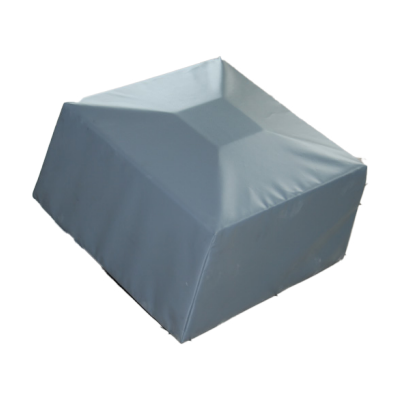

• WAVASORB® VHP-OD is a series of solid, pyramidal-shaped, outdoor absorbers.
• WAVASORB® VHP-OD is designed from our standard pyramidal polyurethane foam absorber as the base product.
• A low loss unloaded polyurethane foam is matched to the absorber, producing a rectangular shape after which the mating absorber ‘block’ is wrapped with a PVC cover and sealed.
• These materials can withstand UV and very harsh weather conditions.
• Excellent power-handling capability assured under continuous wave exposure.
• REACH-and RoHS-compliant, maintaining a healthy environment for operation.
• Designed and quality controlled using commercial and original simulating test techniques.

Applications
WAVASORB® VHP-OD is the preferred solution for outdoor applications.
Each WAVASORB® VHP-OD absorber has a special high-quality quick-drying batch material to protect the absorber from all kinds of weather conditions., wheter it is rain or sunshine.
For more information, contact your sales representative.

Characteristics
Handling temperature -20°C to +70°C
Power handling(1) 800 kW/m2
REACH compliant According to EC 1907/2006
RoHS compliant According to 2015/863/EU
Quality control IEEE Standard 1128 ISO 9001
Product life +5 years depending on the local environmental conditions.

(1) Depending on duration & frequency, for more information, contact your sales representative
