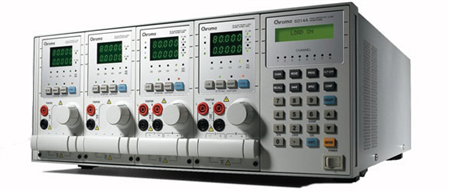

6310A Series Programmable DC Electronic Load

6310A Series Programmable DC Electronic Load

Key Features：

  • Max Power: 200W, 100W×2(Dual), 30W & 250W, 300W, 600W, 1200W
  • Wide range 0~600V operating voltage
  • Compatibility between 6310 and 6310A
  • Up to 8 channels in one mainframe, for testing multiple output SMPS
  • Parallel load modules up to 1200W for high current and power application
  • Synchronization with multiple loads
  • Flexible CC, CR, CP and CV operation modes
  • Dynamic loading with speeds up to 20kHz
  • Fast response of 0.32mA/μs~10A/μs slew rate
  • Minimum input resistance allowing load to sink high current at low voltage
  • Real time power supply load transient response simulation and output measurement
  • User programmable 100 sequences. Front panel input status for user-friendly operating
  • High/Low limits of testing parameters to test GO/NG
  • Digital I/O control
  • Over current protection (OCP) testing function
  • 16-bit precision voltage and current measurement with dual-range
  • Remote sensing capability
  • Short circuit test
  • Self-test at power-on
  • Full Protection: OC, OP, OT protection and OV alarm
  • USB, GPIB & RS-232 interfaces

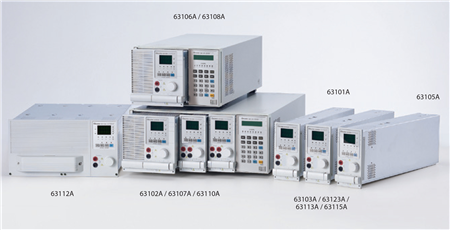

Model/Option Selection Matrix
Stock Code:
CH-6312A
Details:
Mainframe for 2 Load Modules
Option Type:
Main Unit
Stock Code:
CH-6314A
Details:
Mainframe for 4 Load Modules
Option Type:
Main Unit
Stock Code:
CH-63101A
Details:
Load Module 80V/40A/200W
Option Type:
Option-Load Module
Stock Code:
CH-63102A
Details:
Load Module 80V/20A/100W x 2
Option Type:
Option-Load Module
Stock Code:
CH-63105A
Details:
Load Module 500V/10A/300W
Option Type:
Option-Load Module
Stock Code:
CH-63106A
Details:
Load Module 80V/120A/600W
Option Type:
Option-Load Module
Stock Code:
CH-63103A
Details:
Load Module 80V/60A/300W
Option Type:
Option-Load Module
Stock Code:
CH-63107A
Details:
Load Module 80V/5A & 40A/30W & 250W
Option Type:
Option-Load Module
Stock Code:
CH-63108A
Details:
Load Module 500V/20A/600W
Option Type:
Option-Load Module
Stock Code:
CH-63112A
Details:
Load Module 80V/240A/1200W
Option Type:
Option-Load Module
Stock Code:
CH-63123A
Details:
Load Module 120V/70A/350W
Option Type:
Option-Load Module
Stock Code:
CH-A631000
Details:
GPIB Interface for Model 6314A, 6312A
Option Type:
Option-HW
Stock Code:
CH-A631003
Details:
USB Interface for Model 6314A, 6312A
Option Type:
Option-HW
Stock Code:
CH-A631007
Details:
Rack Mounting Kit for Model 6314A Mainframe
Option Type:
Option-HW
Stock Code:
CH-A631006
Details:
Rack Mounting Kit for Model 6312A Mainframe
Option Type:
Option-HW
Stock Code Details Option Type
CH-6312A Mainframe for 2 Load Modules Main Unit
CH-6314A Mainframe for 4 Load Modules Main Unit
CH-63101A Load Module 80V/40A/200W Option-Load Module
CH-63102A Load Module 80V/20A/100W x 2 Option-Load Module
CH-63105A Load Module 500V/10A/300W Option-Load Module
CH-63106A Load Module 80V/120A/600W Option-Load Module
CH-63103A Load Module 80V/60A/300W Option-Load Module
CH-63107A Load Module 80V/5A & 40A/30W & 250W Option-Load Module
CH-63108A Load Module 500V/20A/600W Option-Load Module
CH-63112A Load Module 80V/240A/1200W Option-Load Module
CH-63123A Load Module 120V/70A/350W Option-Load Module
CH-A631000 GPIB Interface for Model 6314A, 6312A Option-HW
CH-A631003 USB Interface for Model 6314A, 6312A Option-HW
CH-A631007 Rack Mounting Kit for Model 6314A Mainframe Option-HW
CH-A631006 Rack Mounting Kit for Model 6312A Mainframe Option-HW
