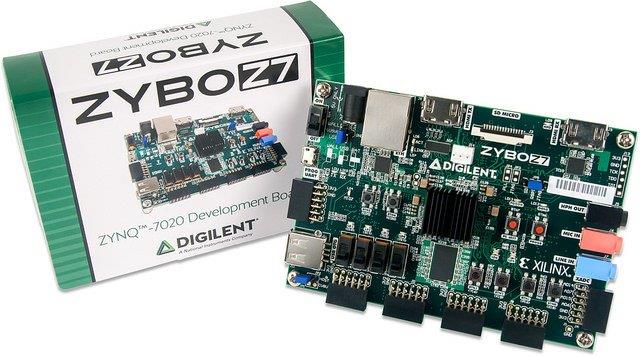

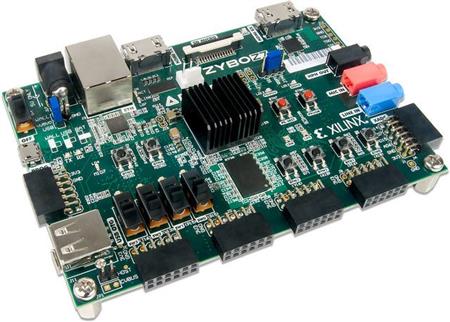

2012 de piyasaya sürülmüş olan Zybo’nun ikinci nesil güncellemesi olan Zybo Z7, Xilinx Zynq-7000 ailesi üzerine inşa edilmiş kullanıma hazır gömülü yazılım ve dijital devre geliştirme kartıdır.
Çift çekirdek ARM Cortex-A9 işlemci ile Xilinx 7-Series FPGA’yi başarılı bir şekilde bütünleştiren Zynq ailesi, Xilinx All Programmable System-on-Chip (AP SoC) mimarisine dayanır.
Zybo Z7’nin üzerinde, güçlü bir tek kart bilgisayar yaratmak için, Zynq zengin multimedya ve bağlantı çevreselleriyle donatılmıştır. MIPI CSI-2 uyumlu Pcam konektörü, HDMI giriş ve çıkışı, yüksek DDR3L bant genişliği de içeren Zybo Z7’nin zengin video özellikleri, görsel uygulamalar için ekonomik bir çözüm olması için özenle seçilmiştir.
Digilent kataloğundan, motor kontrolcüleri, sensörler, göstergeler gibi 70’in üzerinde Pmod çevresel kartın bağlanabilmesini sağlayan Zybo Z7’nin Pmod konektörleri, ek donanım gerektiren uygulamaları oldukça kolaylaştırmaktadır.

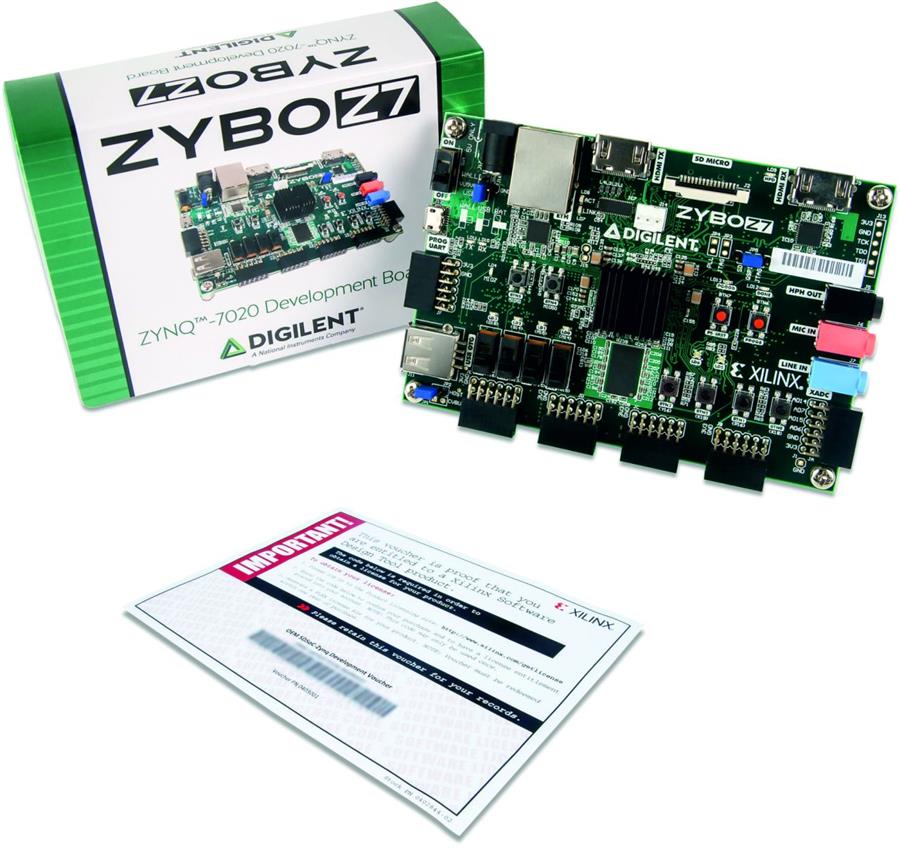

Paket İçeriği:
ZYBO Z7-20 Kartı (P/N:410-351-20) + Vivado SDSoC Voucher
Özellikler
ZYNQ Processor:
- 667 MHz dual-core Cortex-A9 processor
- DDR3L memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports
- High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
- Low-bandwidth peripheral controllers: SPI, UART, CAN, I2C
- Programmable from JTAG, Quad-SPI flash, and microSD card
- Programmable logic equivalent to Artix-7 FPGA
Memory:
- 1 GB DDR3L with 32-bit bus @ 1066 MHz
- 16 MB Quad-SPI Flash with factory programmed 128-bit random number and 48-bit globally unique EUI-48/64™ compatible identifier
- microSD slot
Power:
- Powered from USB or any 5V external power source
USB and Ethernet:
- Gigabit Ethernet PHY
- USB-JTAG Programming circuitry
- USB-UART bridge
- USB 2.0 OTG PHY with host and device support
Audio and Video:
- Pcam camera connector with MIPI CSI-2 support
- HDMI sink port (input) with CEC (Zybo Z7-20) and without CEC (Zybo Z7-10)
- HDMI source port (output) with CEC
- Audio codec with stereo headphone, stereo line-in, and microphone jacks
Switches, Push-buttons, and LEDs:
- 6 push-buttons (2 processor connected)
- 4 slide switches
- 5 LEDs (1 processor connected)
- 2 RGB LEDs (Zybo Z7-20) and 1 RGB LED (Zybo Z7-10)
Expansion Connectors:
- 6 Pmod ports (Zybo Z7-20) and 5 Pmod Ports (Zybo Z7-10)
- 8 Total Processor I/O
- 40 Total FPGA I/O (Zybo Z7-20) and 32 (Zybo Z7-10)
- 4 Analog capable 0-1.0V differential pairs to XADC
