Key Features :

• Rated power: 9kVA, 12kVA, 15kVA
• Rated current: 87Arms, 96Arms, 105Arms  Voltage range: 30Vrms~350Vrms
• Frequency range: 30Hz~100Hz
• Crest factor range: 1.414~3.000
•  Power factor range: 0.100 ~1.000 (lead/lag)
•  3U height with up to 15kVA high power density
•  Intuitive Touch Panel Interface
•  High precision, equivalent to linear load levels
•  Selectable single-phase and three-phase load mode

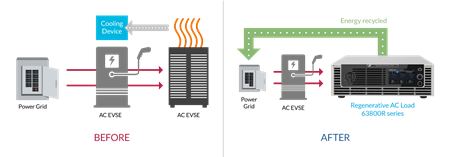

•  Accept reverse rated apparent power with89% efficiency regenerative conversion to  grid
•  Rectified load mode
•  Leading/lagging current load mode
•  Current source mode
•  Stand-By fast response functionality  Inductive/capacitive load simulation function
•  Positive/negative half-cycle load function  Configurable start/end loading current phase angles
•  Configurable current load upper limit
•  Universal AC Input Range

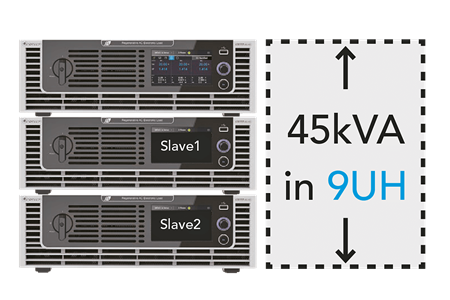

•  Parallelable (by three-phase mode) for higher power output
•  Standard remote interfaces: USB, LAN
•  Optional remote interfaces: GPIB, CAN  Suitable for EVSE, Off-Grid PV inverter, and UPS product test applications
