Microwave Application Set consists of modules which basic microwave applications can be performed.
Set includes High Pass Filter, Low Pass Filter, Band Pass Filter, Band Stop Filter, RF Divider, RF Coupler, RF Attenuator, RF Voltage Variable Attenuator, RF SWR Bridge, Microstrip Patch Antenna modules and Portable Spectrum Analyzer has Tracking Generator oputput. (TG is optional)
The parameters of the filters can be measured with Spectrum Analyzer has Tracking Generator option. Absolute values and VSWR values of S21, S11 parameters also can be measured with Spectrum Analyzer and RF Bridge
Applications :
• Coupled Line Band Pass Filter Term
• Low Pass Filter Experiment
• Filter Design Term via Insertion Loss Method
• High Pass Filter Experiment
• Maximallay Flat Low Pass Filter Term
• Band Pass Filter Experiment
• Equal Ripple Filter Design Term
• Band Stop Filter Experiment
• Filter Transform Term
• Power Divider S21 ve S31 Parameters Measurement
• Richards’ Transformation Term
• Power Divider S32 Isolation Parameters Measurement
• Kuroda’s Identities Term
• RF Directional Coupler S43 Parameters Measurement
• Stepped Impedance Low Pass Filter Term
• RF Attenuation Parameters Measurement
• Short Stub High Pass Filter Term
• Antenna Operating Frequency Measurement
• Quarter Wave Stub Band Stop Filter Term
• RF Directional Coupler S31 ve S41 Parameters Measurement
• RF Directional Coupler S21 ve S11 Parameters Measurement

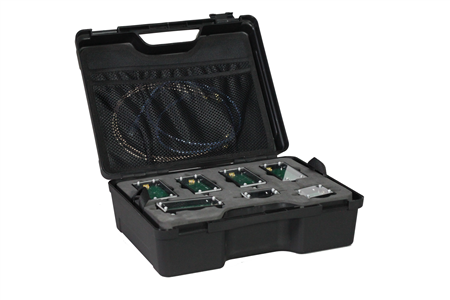

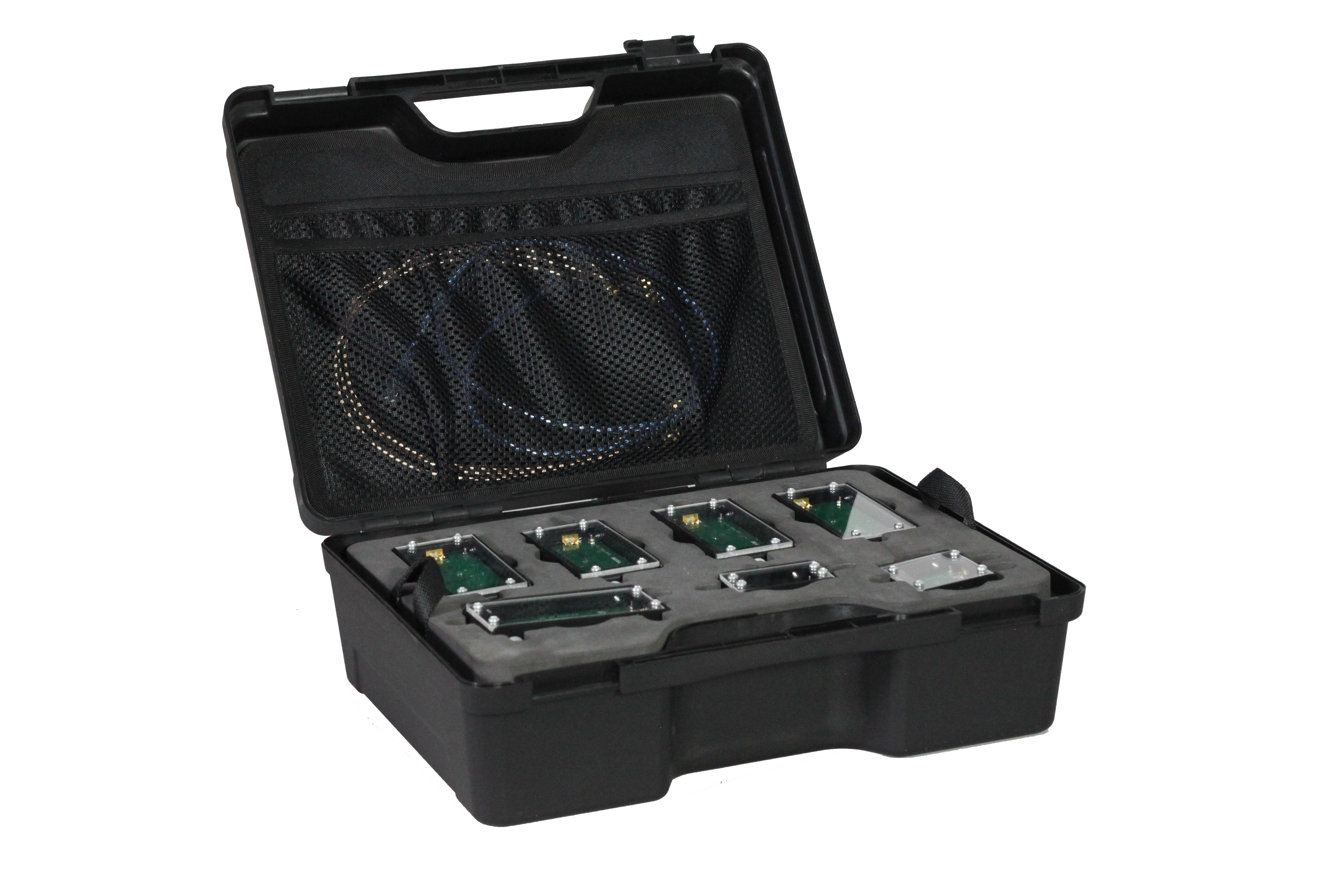

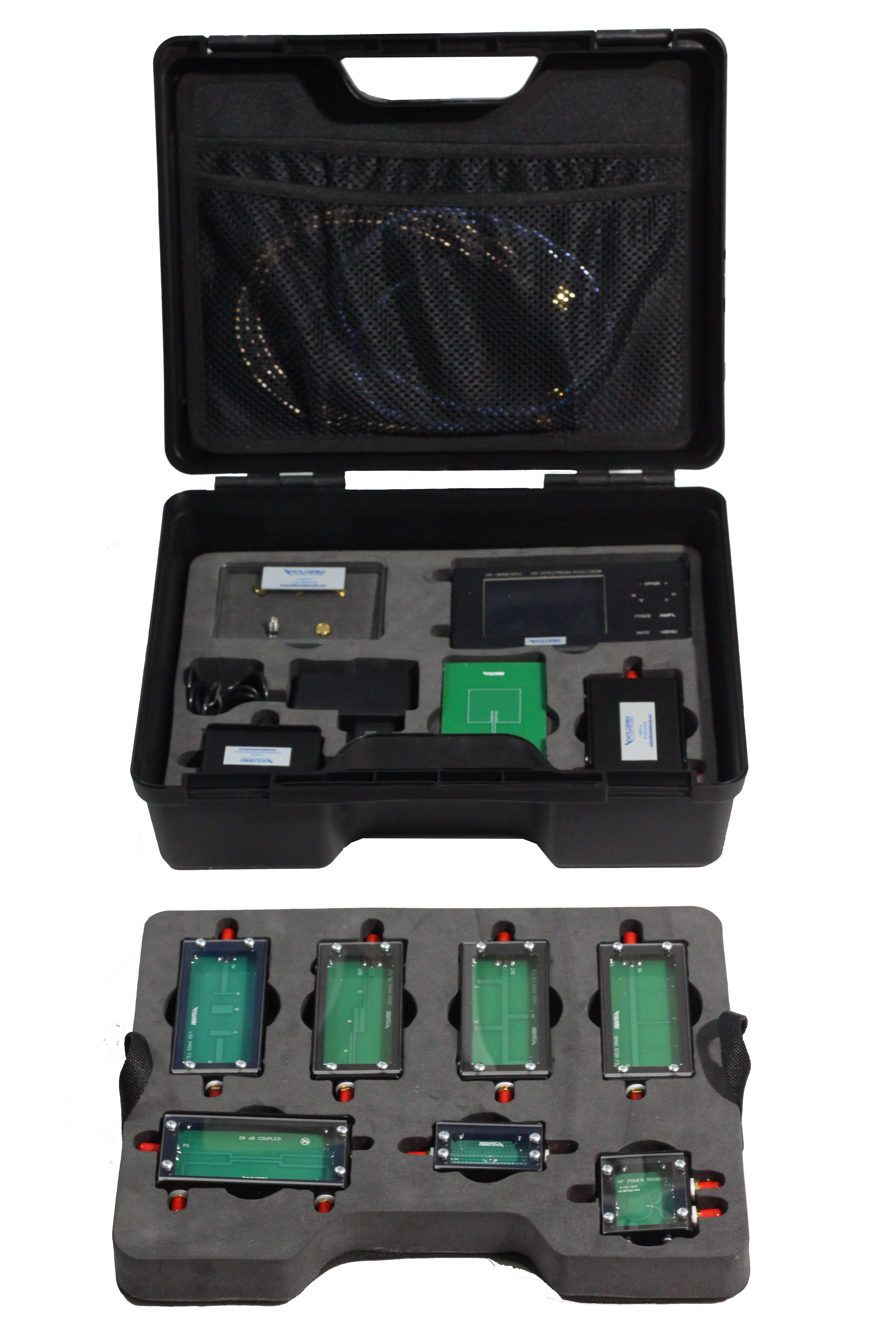

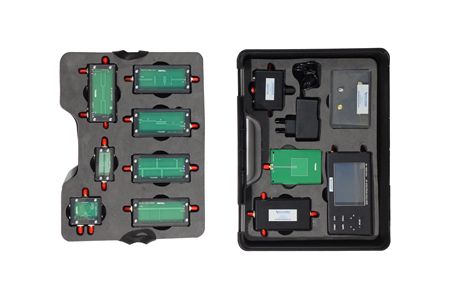

Set Content :

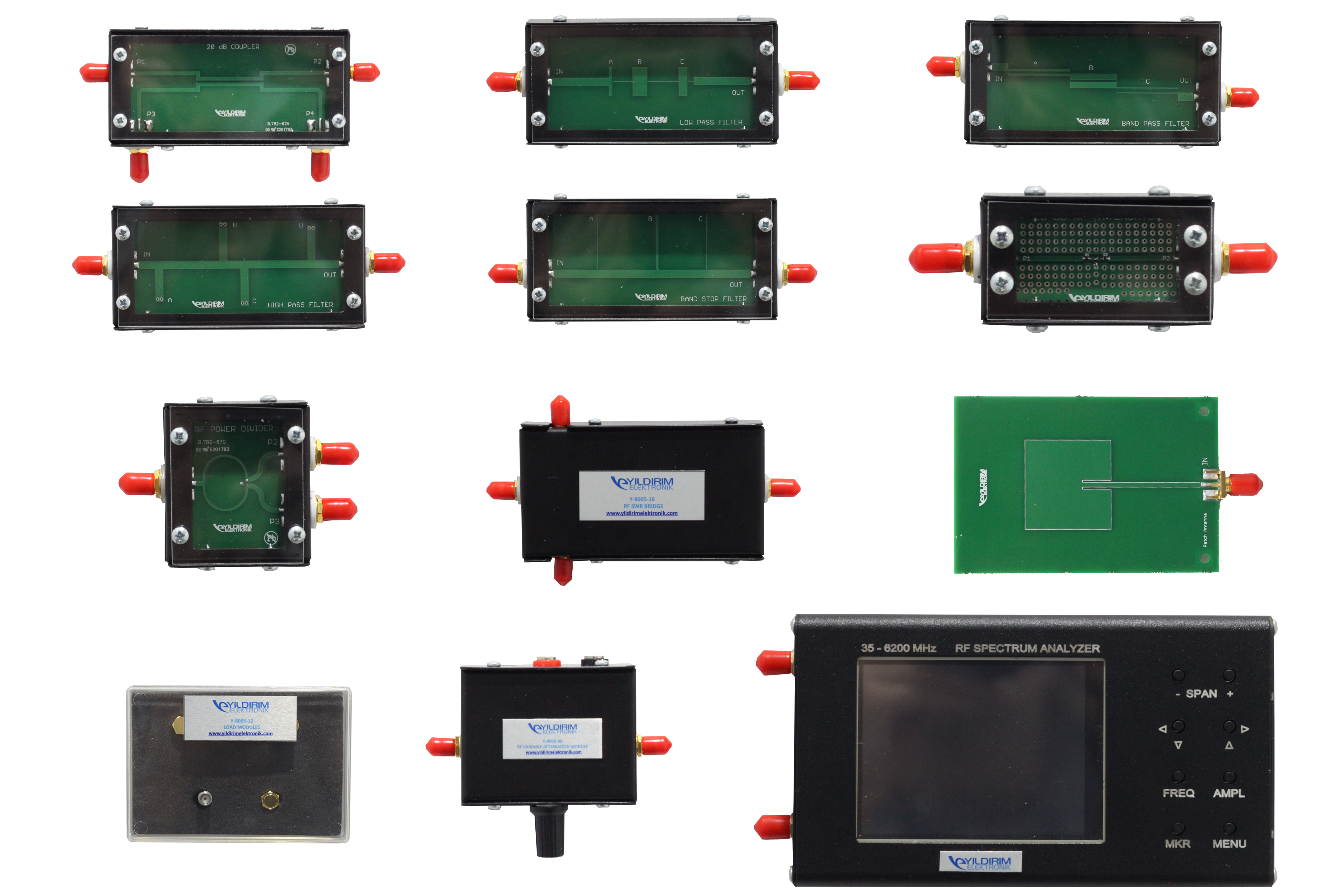

• RF Low Pass Filter Module
• RF High Pass Filter Module
• RF Band Pass Filter Module
• RF Band Stop Filter Module
• RF Divider Module
• RF Coupler Module
• 20dB RF Attenuator Module
• RF Voltage Variable Attenuator Module
• RF SWR Bridge
• Microstrip Patch Antenna
• Portable Spectrum Analyzer
• Short circuit load set
• Open Circuit Load,
• 50 Ohm Load
• Connection accessories
Portable Spectrum Analyzer :
• Battery-Operated
• Tracking Generator Output
• USB/Wi-Fi
• Touch Screen
