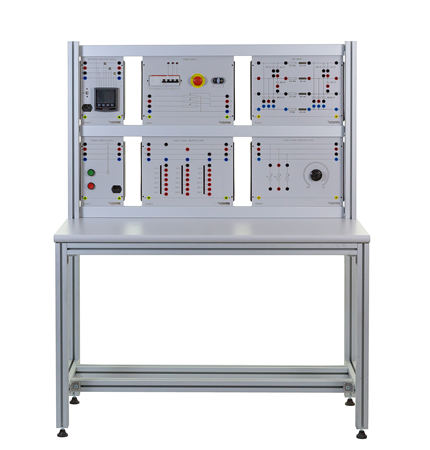

Transmission Lines Training Set

Transmission Lines Training Set has been designed in a structure containing the following units where basic applications related to electrical energy transmission systems can be realized

Set Content :

• Power Supply Module
• Line Module
• Network Analyzer Module (2 Pcs)
• Power Switch Module (2 Pcs)
• Power Distribution Module
• Line Compensation Module
• Current Transformer Module
• Voltage Transformer Module
• Resistive Load Module
• Inductive Load Module

Applications :

  3 phase ohmic and ohmic inductively loaded system analysis applications of short energy transmission lines

• Examination of the efficiency of the short transmission line
• Examination of voltage regulation in short transmission line
• Examination of short transmission line structure
• Possibility of single phase system applications
• Examination of phasor diagrams required measurements
• Experimental investigation of voltage drop and voltage losses
• Taking and interpreting all measurements in and out of line


3-phase ohmic and ohmic inductively loaded system analysis applications of medium length energy transmission lines ; With Pi equivalent circuit model

• Examination of the efficiency of the short transmission line
• Voltage regulation on short transmission line
• Examination of short transmission line structure
• Operation of the system under different static loads
• Phasor diagrams required measurements
• Experimental investigation of voltage drop and voltage losses
• Taking and interpreting all measurements in and out of line
• Investigation of the effects of the model due to the possibility of adding and removing phase-neutral and     phase-  neutral capacitors

 Energy Transmission Line Compensation Applications

• Application of line compensation by affecting the impedance of a 3-phase short transmission line
• Examination of the effect of load impedance on the system
• Single phase operation


 Measurement applications with different connection types of measurement transformers in transmission line

• Examination of the performance of current measurement transformer with different conversion rates under  load changes in single phase or 3 phase system
• Examination of differential current connection
• Examination of total current connection
• To learn the use of 2-phase connection for three-phase balanced systems
• Investigation of measurement of earth leakage current in three phase unbalanced systems
