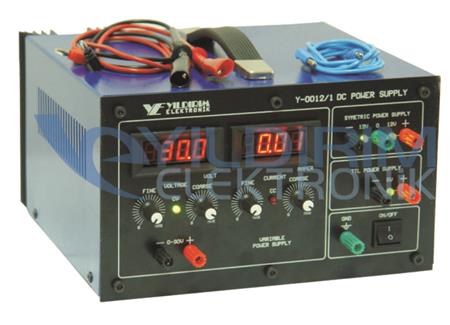

DC POWER SUPPLY
DC Power Supply should be designed to adjust the output Voltage and Current as fine and coarse. The output voltage and current should displayed independently with 3½ Digit LED Display. There should be over current (CC) and constant voltage (CV) warning LEDs on the Power Supply. The Power Supply should have a shock proof separable case.
TECHNICAL SPECIFICATIONS
Power Supply : 220 V AC / 50 Hz ± 10 %
Output Voltage : 0 - 30 V DC, fine and coarse adjustable
Output Current : 0 - 3 A DC, fine and course adjustable
TTL Power Supply : 5V, 1A
Symmetric Power Supply : +12V / 0 / -12V, 1A
Voltmeter Measurement Range : 3½ digit / 00,0 - 30,0 V
Ammeter Measurement Range : 3½ digit / 00,0 A - 3,00 A
Voltage Regulation : < %1
Warning Indicators : CC : Over Current, CV: Constant Voltage
Case : Metal
Size : Min. Width : 265 mm, Height : 160 mm, Depth : 230 mm
Content : Power Cable, Spare Fuse, Connection Leads, User Manual
