DC Simetrik Güç Kaynağı

Test & Ölçüm Cihazları → Güç Kaynağı → DC Güç Kaynağı → DC Simetrik Güç Kaynağı

Sipariş No : Y-0013

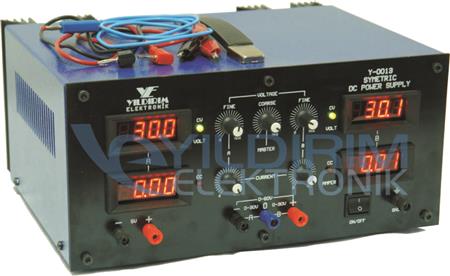

DC Simetrik Güç Kaynağı

2x0-30V / 2x0-3A / 5V-3A

There are two outputs of the DC Symmetric Power Supply. Both of the Voltage outputs are designed as fine and coarse adjustable and Current outputs as only coarse adjustable.

Output voltage and currents are displayed independently with 3½ Digit LED Display. There are over current (CC) and constant voltage (CV) warning
Leds for both of outputs.

There is also 5V DC / 3A TTL fixed output on the supply.

The Power Supply has a shock proof metal case.

Power Supply is delivered with power cable, spare fuses, connection leads and user manual.

Teknik Şartname

SYMMETRIC DC POWER SUPPLY

The Voltage Outputs of DC Power Supply should be designed as fine and coarse adjustable. Output voltage and currents should displayed independently with 3½ Digit LED Display. There should be over current (CC) and constant voltage (CV) warning LEDs.

TECHNICAL SPECIFICATIONS
Power Supply                :    220 V AC / 50 Hz ± 10 %
Output Voltage                :    2 x 0 - 30 V DC, fine and coarse adjustable
Output Current                :    2 x 0 - 3 A DC, Variable
TTL Power Supply            :    5V DC / 3A
Voltmeter Measurement Range        :     2 x 3½ digit / 00,0 - 30,0 V
Ammeter Measurement Range        :     2 x 3½ digit / 00,0 A - 3,00 A
Voltage Regulation            :    < %1
Warning Indicators            :     CC : Over Current, CV: Constant Voltage
Case                    :    Metal
Min. Size                :    Width : 320 mm, Height : 160 mm, Depth : 230 mm
System Content                :    Power Cable, Spare Fuse, Connection Leads, User Manual
