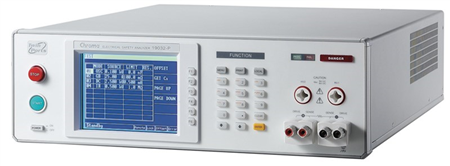

19032&19032P Electrical Safety Analyzer

Test & Ölçüm Cihazları → Elektriksel Güvenlik Test Cihazı → Safety Tester → 19032&19032P Electrical Safety Analyzer

Sipariş No : CH-19032

Key Features：

Floating Output Design meet EN50191 (19032-P)
500VA Power Rating (19032-P)
Five instruments in one: AC Hipot, DC Hipot, Insulation Resistance, Ground Bond and Leakage Current (Option)
Twin-PortTM function (Patent)
Programmable output voltage to 5kV AC and 6kV DC
Insulation resistance to 50GΩ/1000V DC
Ground bond up to 30A (Option up to 40A / 60A)
Open/Short check(OSC)
ARC detection (Flashover)
Password Protected front panel lockout
Storage of 50 Tests Setups with 100 Steps per setup
Optional dynamic leakage current auto scanning (A190305/A190306/A190307/A190308)
Standard RS-232 Interface
Standard GB Offset KIT, SCANNER Interface
Optional GPIB Interface
Optional Bar-code Scanner
Optional EST software for test programming, data mining, statistic
UL, TüV ,CE mark (Model 19032)
CE mark (Model 19032-P)

Ürün Kodu	Ürün Açıklaması	Ürün Tipi
CH-19032-P	Electrical Safety Analyzer (500VA)	Model
CH-19032	Electrical Safety Analyzer	Model
CH-A190305	Line Leakage Current Scanner (generally)	Opsiyon-HW
CH-A190306	Hipot/Line Leakage/Probe Scanner (10A)	Opsiyon-HW
CH-A190307	L-N Scanner & Leakage Current Scanner	Opsiyon-HW
CH-A190308	Hipot/Line Leakage/Probe Scanner (20A)	Opsiyon-HW
CH-A190313	500VA Isolating Transformer	Opsiyon-HW
CH-A190314	1000VA Isolation Transformer	Opsiyon-HW
CH-A190316	Dummy Load	Opsiyon-HW
CH-A190317	Bar Code Scanner	Opsiyon-HW
CH-A190334	Ground bond 40A (19032)	Opsiyon-HW
CH-A190338	Ground Bond 60A (19032)	Opsiyon-HW
CH-A190343	19' Rack Mount Kit (19032)	Opsiyon-HW
CH-A190344	HV Gun	Opsiyon-HW
CH-A190349	Universal corded Product Adapter	Opsiyon-HW
CH-A190350	HV/LC/LAC/DC Probe Scanner (20A)	Opsiyon-HW
CH-A190355	Rack Mounting Kit (19032-P)	Opsiyon-HW
CH-A190356	GPIB Interface (19032-P)	Opsiyon-HW
CH-A190508	GPIB Interface (19032)	Opsiyon-HW

CHROMA 19032_19032-P Datasheet.pdf
