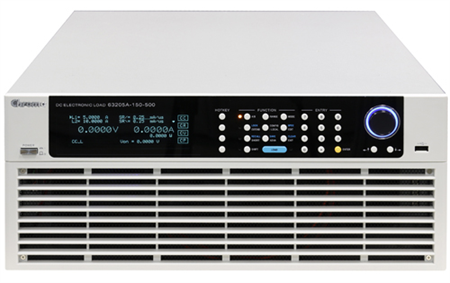

63200A Series High Power Programmable DC Electronic Load

Test & Ölçüm Cihazları → Elektronik Yük → DC Elektronik Yük → 63200A Series High Power Programmable DC Electronic Load

Sipariş No : CH-63200A

Key Features：

Rated power: 2kW, 3kW, 4kW, 5kW, 6kW, 12kW, 18kW, 24kW, Max. 240kW (Parallel)
Voltage range: 0-150V, 0-600V, 0-1200V
Current range: 2,000A max. per unit
CC, CR, CV & CP operation modes
CR+CC, CR+CV, CC+CV complex modes
Up to 10 units master/slave parallel control
Dynamic synchronous control in static and dynamic loads
User defined waveform (UDW)
CZ mode for turn on capacitive load simulation
External loading current simulation
Auto frequency sweep up to 50kHz
Real time power supply load transient response simulation & Vpk+/- measurement
User programmable 255 sequential front panel input status
Ultra high precision voltage & current measurement
Precision high speed digitizing measurement/data capture
Voltage, current & Pmax measurement for OCP/OLP tesing
Timing & discharging measurement for batteries
Instant overpower loading
Short circuit simulation
Smart fan control
Full protection: OC (adjustable), OT,OP (adjustable) protection & OV warning
Standard USB, optional Ethernet and GPIB interfaces

Model/Opsiyon Seçim Tablosu

Ürün Kodu	Ürün Açıklaması	Ürün Tipi
CH-63202A-150-200	Programmable High Power DC Electronic Load 150V / 200A / 2kW	Model
CH-63203A-150-300	Programmable High Power DC Electronic Load 150V / 300A / 3kW	Model
CH-63204A-150-400	Programmable High Power DC Electronic Load 150V / 400A / 4kW	Model
CH-63205A-150-500	Programmable High Power DC Electronic Load 150V / 500A / 5kW	Model
CH-63206A-150-600	Programmable High Power DC Electronic Load 150V / 600A / 6kW	Model
CH-63208A-150-1200	Programmable High Power DC Electronic Load 150V / 800A / 8kW	Model
CH-63210A-150-1000	Programmable High Power DC Electronic Load 150V / 1000A / 10kW	Model
CH-63212A-150-1200	Programmable High Power DC Electronic Load 150V / 1200A / 12kW	Model
CH-63215A-150-1500	Programmable High Power DC Electronic Load 150V / 1500A / 15kW	Model
CH-63218A-150-1800	Programmable High Power DC Electronic Load 150V / 1800A / 18kW	Model
CH-63220A-150-2000	Programmable High Power DC Electronic Load 150V / 2000A / 20kW	Model
CH-63224A-150-2000	Programmable High Power DC Electronic Load 150V / 2000A / 24kW	Model
CH-63202A-600-140	Programmable High Power DC Electronic Load 600V / 140A / 2kW	Model
CH-63203A-600-210	Programmable High Power DC Electronic Load 600V / 210A / 3kW	Model
CH-63204A-600-280	Programmable High Power DC Electronic Load 600V / 280A / 4kW	Model
CH-63205A-600-350	Programmable High Power DC Electronic Load 600V / 350A / 5kW	Model
CH-63206A-600-420	Programmable High Power DC Electronic Load 600V / 420A / 6kW	Model
CH-63208A-600-560	Programmable High Power DC Electronic Load 600V / 560A / 8kW	Model
CH-63210A-600-700	Programmable High Power DC Electronic Load 600V / 700A / 10kW	Model
CH-63212A-600-840	Programmable High Power DC Electronic Load 600V / 840A / 12kW	Model
CH-63215A-600-1050	Programmable High Power DC Electronic Load 600V / 1050A / 15kW	Model
CH-63218A-600-1260	Programmable High Power DC Electronic Load 600V / 1260A / 18kW	Model
CH-63220A-600-1400	Programmable High Power DC Electronic Load 600V / 1400A / 20kW	Model
CH-63224A-600-1680	Programmable High Power DC Electronic Load 600V / 1680A / 24kW	Model
CH-63202A-1200-80	Programmable High Power DC Electronic Load 1200V / 80A / 2kW	Model
CH-63203A-1200-120	Programmable High Power DC Electronic Load 1200V / 120A / 3kW	Model
CH-63204A-1200-160	Programmable High Power DC Electronic Load 1200V / 160A / 4kW	Model
CH-63205A-1200-200	Programmable High Power DC Electronic Load 1200V / 200A / 5kW	Model
CH-63206A-1200-240	Programmable High Power DC Electronic Load 1200V / 240A / 6kW	Model
CH-63208A-1200-320	Programmable High Power DC Electronic Load 1200V / 320A / 8kW	Model
CH-63210A-1200-400	Programmable High Power DC Electronic Load 1200V / 400A / 10kW	Model
CH-63212A-1200-480	Programmable High Power DC Electronic Load 1200V / 480A / 12kW	Model
CH-63215A-1200-600	Programmable High Power DC Electronic Load 1200V / 600A / 15kW	Model
CH-63218A-1200-720	Programmable High Power DC Electronic Load 1200V / 720A / 18kW	Model
CH-63220A-1200-800	Programmable High Power DC Electronic Load 1200V / 800A / 20kW	Model
CH-63224A-1200-960	Programmable High Power DC Electronic Load 1200V / 960A / 24kW	Model
CH-A600009	GPIB cable (200cm)	Opsiyon-HW
CH-A600010	GPIB cable (60cm)	Opsiyon-HW
CH-A632006	NI USB-6211 Bus-Powered Multifunction DAQ	Opsiyon-HW
CH-A632007	Over voltage protection box (for 1200V models only)	Opsiyon-HW
CH-A632009	Slave model (600V/1680A/24kW)	Opsiyon-HW
CH-A632010	Slave model (1200V/960A/24kW)	Opsiyon-HW
CH-A636000	GPIB interface	Opsiyon-HW
CH-A636010	Ethernet interface	Opsiyon-HW
CH-B632000	Handle for 3U models (2kW/3kW)	Opsiyon-HW
CH-B632001	Handle for 4U models (4kW/5kW/6kW)	Opsiyon-HW
CH-B632002	Rack mounting kit for 7U models (8kW/10kW/12kW)	Opsiyon-HW
CH-B632003	Rack mounting kit for 10U models (15kW/18 kW)	Opsiyon-HW
CH-B632004	Rack mounting kit for 13U models (20kW/24kW)	Opsiyon-HW

Ek Dosyalar (Katalog-Broşür-Manual)

Teknik Şartname

Videolar

Ek Dosyalar (Katalog-Broşür-Manual)

63200A Datasheet.pdf
