61700 Series AC Power Source

Test & Ölçüm Cihazları → Güç Kaynağı → AC Güç Kaynağı → 61700 Series AC Power Source

Sipariş No : CH-61700

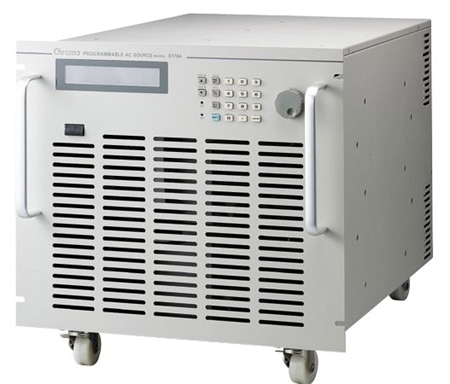

61700 Series AC Power Source

61700 Series Programmable AC Power Source

  • Output Rating:
    Power:
    1.5KVA, 3ø (61701);
    3KVA, 3ø (61702);
    4.5KVA, 3ø (61703);
    6KVA, 3ø (61704);
    12KVA, 3ø (61705)
    Voltage: 0-150V/0-300V
  • Frequency: 15~1.2kHz
  • Phase angle: 0~360˚ Programmable
  • Built-in PFC, provides input power factor of over 0.98
  • AC+DC output mode
  • Comprehensive measurement capability,V, Irms, Ipk, Iinrush, P, PF, CF of current etc.
  • Programmable r.m.s. current limit
  • Turn on, turn off phase angle control
  • Full protection: OP, OC, OV and OT protection
  • Optional GPIB and RS-232 interface
  • Advanced PWM technology delivers high power density in a compact rack-mountable package
  • User-definable power-on status
  • Built-in output isolation relays
  • Easy use graphic user interface: softpanel (Option)
  • Optional function for transient voltage output, including LIST, PULSE, STEP ans INTERHARMONICS mode
Model/Opsiyon Seçim Tablosu
Ürün Kodu:
CH-61701
Ürün Açıklaması:
Programmable AC Source 0~300V/DC, 15~1.2kHz, 3ø 1.5KVA
Ürün Tipi:
Model
Ürün Kodu:
CH-61702
Ürün Açıklaması:
Programmable AC Source 0~300V/DC, 15~1.2kHz, 3ø 3KVA
Ürün Tipi:
Model
Ürün Kodu:
CH-61703
Ürün Açıklaması:
Programmable AC Source 0~300V/DC, 15~1.2kHz, 3ø 4.5KVA
Ürün Tipi:
Model
Ürün Kodu:
CH-61704
Ürün Açıklaması:
Programmable AC Source 0~300V/DC, 15~1.2kHz, 3ø 6KVA
Ürün Tipi:
Model
Ürün Kodu:
CH-61705
Ürün Açıklaması:
Programmable AC Source 0~300V, 15~1.2kHz, 3ø 12KVA
Ürün Tipi:
Model
Ürün Kodu:
CH-A615001
Ürün Açıklaması:
Remote Interface Board for 61500/61600/61700 Series (RS-232 Interface, GPIB Interface)
Ürün Tipi:
Opsiyon-HW
Ürün Kodu:
CH-A617002
Ürün Açıklaması:
Transient voltage output function, including WAVEFORM, LIST, PULSE, STEP and INTERHARMONICS mode
Ürün Tipi:
Opsiyon-HW
Ürün Kodu Ürün Açıklaması Ürün Tipi
CH-61701 Programmable AC Source 0~300V/DC, 15~1.2kHz, 3ø 1.5KVA Model
CH-61702 Programmable AC Source 0~300V/DC, 15~1.2kHz, 3ø 3KVA Model
CH-61703 Programmable AC Source 0~300V/DC, 15~1.2kHz, 3ø 4.5KVA Model
CH-61704 Programmable AC Source 0~300V/DC, 15~1.2kHz, 3ø 6KVA Model
CH-61705 Programmable AC Source 0~300V, 15~1.2kHz, 3ø 12KVA Model
CH-A615001 Remote Interface Board for 61500/61600/61700 Series (RS-232 Interface, GPIB Interface) Opsiyon-HW
CH-A617002 Transient voltage output function, including WAVEFORM, LIST, PULSE, STEP and INTERHARMONICS mode Opsiyon-HW

Teknik Şartname

Videolar

Ek Dosyalar (Katalog-Broşür-Manual)

61700 Series Datasheet.pdf
