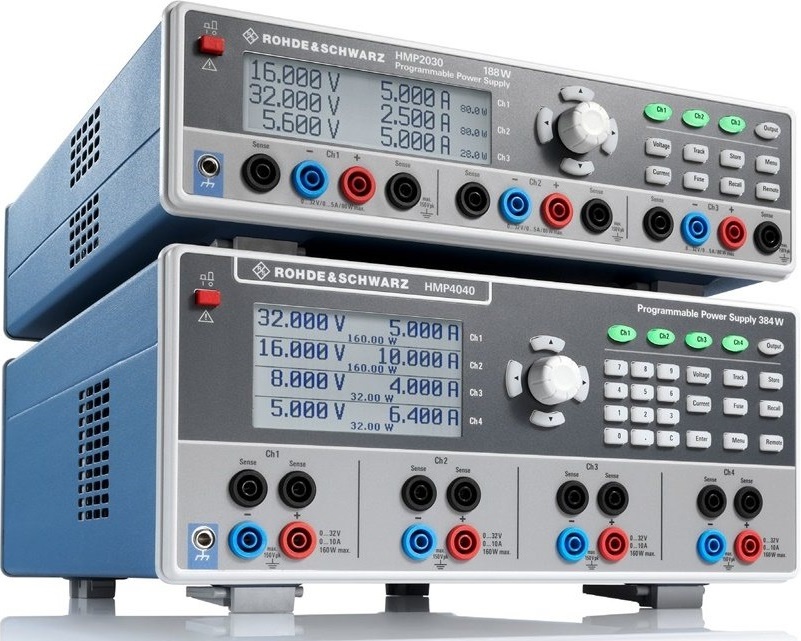

Up to four channels in a single instrument!
The R&S®HMP DC Power supplies are primarily designed for industrial use. With three or four output channels and up to 10 A output current per channel, these rugged instruments are ideal for a wide variety of applications. They offer high efficiency with low residual ripple and many protection functions.
Key Facts
- Max. total output power: 188 W for HMP2000, 384 W for HMP4000
- Max. voltage per channel: 32 V
- Max. current per channel: 5 A/10 A for HMP2000, 10 A for HMP4000
- Electronic fuse (OCP), adjustable maximum voltage (OVP), overtemperature protection (OTP)
- All channels galvanically isolated and floating
Features & Benefits
More than meets your daily needs
- All channels galvanically isolated and floating
- All channels have the same voltage range
- All channels have overload and short-circuit protection
- Parallel and serial operation
- Constant voltage and constant current modes
- Tracking and link functions
- Protection functions to safeguard instrument and DUT
- Modern instrument concept: small, compact and quiet
Easy operation
- Intuitive to use
- Color coding of operating states
- EasyArb function for all channels
- Save and recall instrument settings
Ideal for labs and test systems
- Tailored for use in labs and system racks
- Sense function for more stringent accuracy requirements

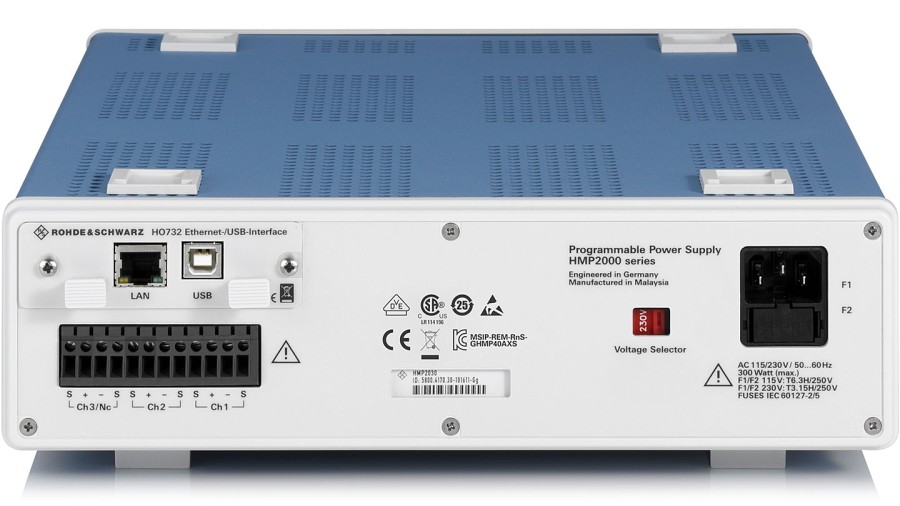

- Remote control of instrument functions
Model/Opsiyon Seçim Tablosu
|
|
Ürün Kodu
|
Ürün Açıklaması
|
Ürün Tipi
|
|
|

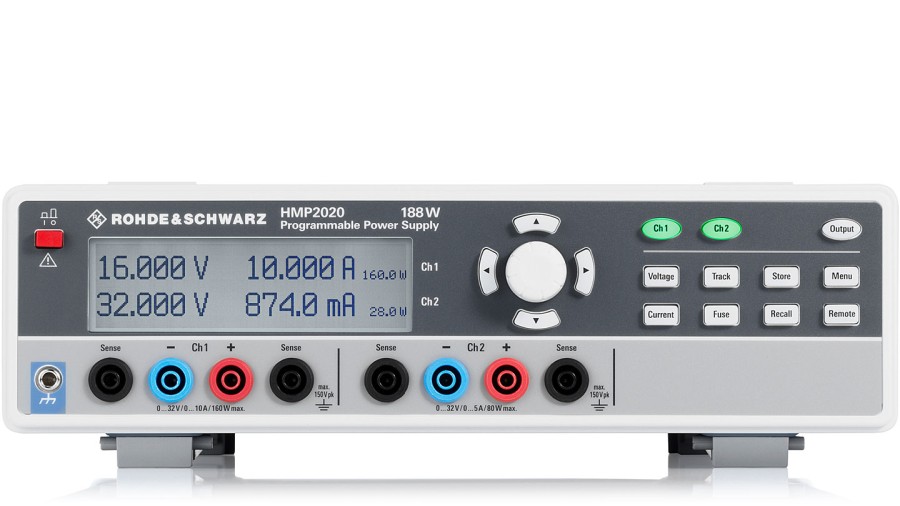

RS-3629.6718.02-HMP2020 |
2 Channel, 0-32V/0-5A/10A, 188W DC Power Supply |
Model |
|
|

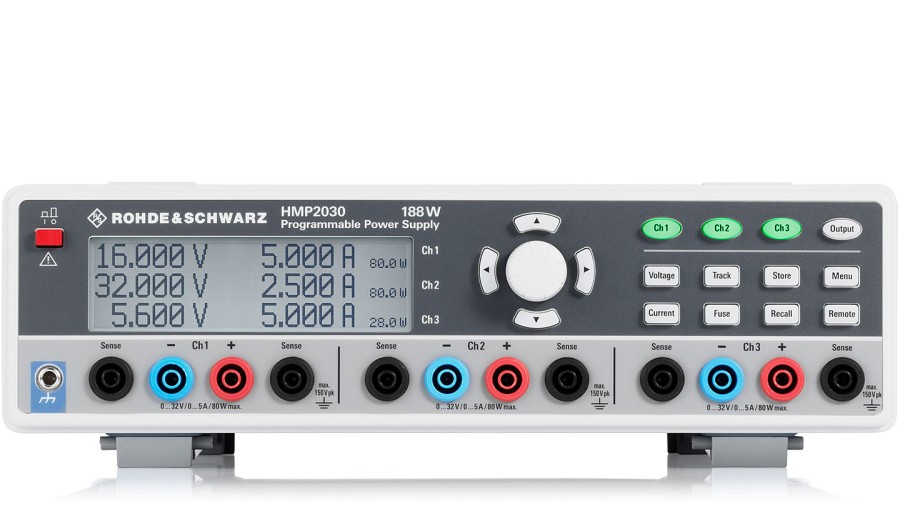

RS-3629.6718.03-HMP2030 |
3 Channel, 0-32V/0-5A, 188W DC Power Supply |
Model |
|
|

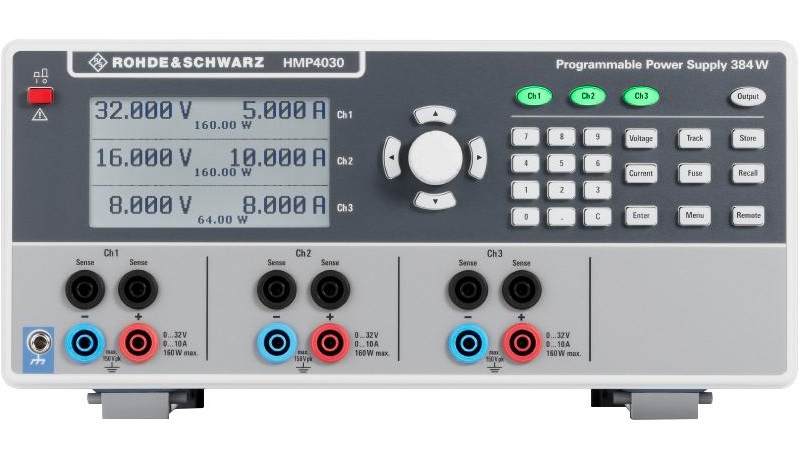

RS-3629.6776.03-HMP4030 |
3 Channel, 0-32V/0-10A, 384W DC Power Supply |
Model |
|
|

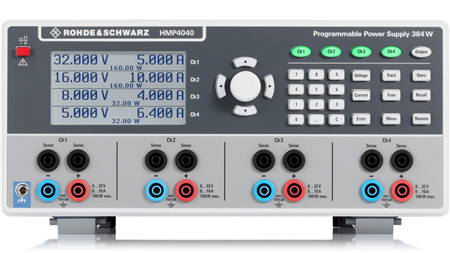

RS-3629.6776.04-HMP4040 |
4 Channel, 0-32V/0-10A, 384W DC Power Supply |
Model |
|
|
RS-3594.3660.02-HO720 |
Dual Interface (RS-232/USB) |
Opsiyon-HW |
|
|
RS-3622.3194.02-HO740 |
IEEE488 (GPIB) Interface |
Opsiyon-HW |
|
|
RS-3622.3207.02-HZ42 |
19" Rack Adapter, 2 HU for R&S®HMP2020/HMP2030 |
Aksesuar |
|
|
RS-5800.0939.02-HZP91 |
19" Rack Adapter, 4 HU for R&S®HMP4030/HMP4040 |
Aksesuar |
