CW-50181

ESD / Temiz Oda → Test - Ölçüm ve Görüntüleme Ekipmanları → CW-50181

Sipariş No : CW-50181

CW-50181

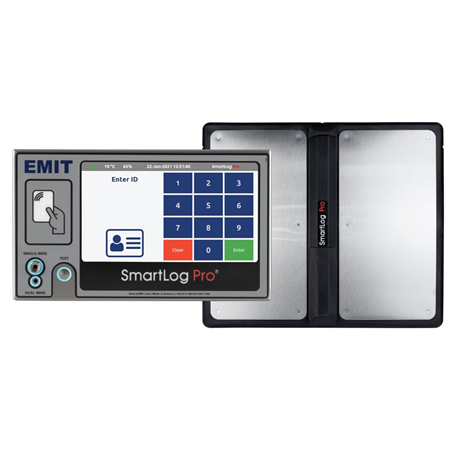

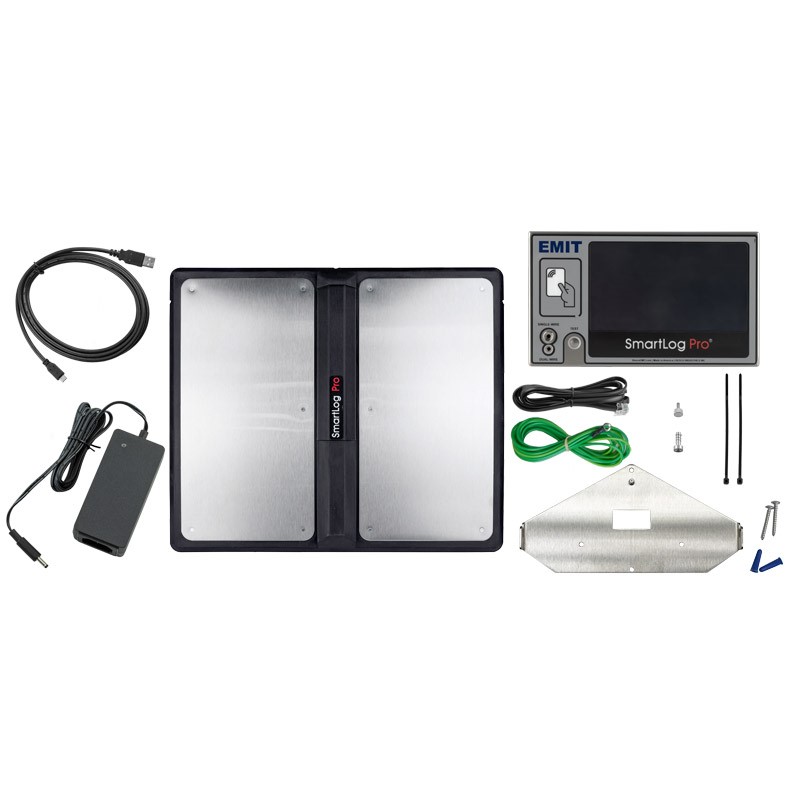

SmartLog Pro 2 Without Power Cord

  • 7 Inch Resistive Touchscreen
    Accepts input from gloved operators and probes
  •  Wi-Fi Connectivity
    Spares installation sites from Ethernet cable
  •  Customisable Proximity Card Reader
    Reads virtually any proximity or contactless card type in the world
  •  3-Prong Safety Certified Power Adapter
    Supplies ground without the need for additional wiring
  • Wiegand Interface
  • Replaceable Dual-Wire Wrist Strap Jack
    Minimizes service downtime
  •  VGA Video Output
    Mirrors the display onto an external monitor
  • SmartLog Pro® Manager Web App Compatibility
    Access test data and reports from any web browser
  • Tests the Operator’s Path-to-Ground
    Determines if the operator’s personal grounding devices are functioning correctly
  • Electronic Data Acquisition
    Creates test record database for auditing and quality control
  • Assigned Test Requirement
    Controls access to ESD Protected Area based on operator’s test requirements.
  • Records Resistance Measurements, Temperature, and Relative Humidity
    Tracks the performance of ESD wrist straps and footwear
  • Software Programmable Test Limits
    Use to meet the testing requirements of IEC 61340-5-1 or other standards
  • Normally Open and Normally Closed Relay Terminals
    Pairs with a turnstile, automatic door, or other locking system to control access to ESD Protected Areas (EPAs)
  • Simultaneous Testing in Less Than 2 Seconds
    Reduces time spent testing personal grounding devices used in ESD Control Plans   
  • Stand-Alone Operation
    Operators can continue performing tests even in the event of a network failure
  • Split Foot Plate for Testing Foot Grounders (or Shoes)
    Tests both foot grounders independently at the same time
  • Multiple Language Settings
    Displays the user interface in English, Spanish, Japanese, Chinese (Simplified), Turkish, Thai, or French
  • Power Cord Sold Separately
  • NIST Calibrated



Model/Opsiyon Seçim Tablosu
Ürün Kodu:
CW-50172
Ürün Açıklaması:
SmartLog Pro Manager Web App
Ürün Tipi:
Opsiyon-HW
Ürün Kodu:
CW-50188
Ürün Açıklaması:
EDS Turnstile for SmartLog Pro 2, 220VAC
Ürün Tipi:
Opsiyon-HW
Ürün Kodu:
CW-50183
Ürün Açıklaması:
Turnstile Bracket Retrofit for SmartLog Pro 2
Ürün Tipi:
Opsiyon-HW
Ürün Kodu:
CW-50185
Ürün Açıklaması:
Replacement Dual Foot Plate for SmartLog Pro 2
Ürün Tipi:
Opsiyon-HW
Ürün Kodu:
CW-50417
Ürün Açıklaması:
Stand for SmartLog Pro 2
Ürün Tipi:
Opsiyon-HW
Ürün Kodu:
CW-50184
Ürün Açıklaması:
Replacement Dual-Wire Wrist Strap Jack for SmartLog Pro 2
Ürün Tipi:
Opsiyon-SW
Ürün Kodu:
CW-50186
Ürün Açıklaması:
Replacement Foot Plate Cable for SmartLog Pro 2
Ürün Tipi:
Opsiyon-SW
Ürün Kodu:
CW-50187
Ürün Açıklaması:
Power Adapter, 100-240VAC in, 9VDC 3A out, C14 Inlet
Ürün Tipi:
Opsiyon-SW
Ürün Kodu Ürün Açıklaması Ürün Tipi
CW-50172 SmartLog Pro Manager Web App Opsiyon-HW
CW-50188 EDS Turnstile for SmartLog Pro 2, 220VAC Opsiyon-HW
CW-50183 Turnstile Bracket Retrofit for SmartLog Pro 2 Opsiyon-HW
CW-50185 Replacement Dual Foot Plate for SmartLog Pro 2 Opsiyon-HW
CW-50417 Stand for SmartLog Pro 2 Opsiyon-HW
CW-50184 Replacement Dual-Wire Wrist Strap Jack for SmartLog Pro 2 Opsiyon-SW
CW-50186 Replacement Foot Plate Cable for SmartLog Pro 2 Opsiyon-SW
CW-50187 Power Adapter, 100-240VAC in, 9VDC 3A out, C14 Inlet Opsiyon-SW

Teknik Şartname

Videolar

Ek Dosyalar (Katalog-Broşür-Manual)

TB-6610.pdf
