62000E Series Programmable 1U Single&Multiple DC Power Supplies

Test & Ölçüm Cihazları → Güç Kaynağı → DC Güç Kaynağı → 62000E Series Programmable 1U Single&Multiple DC Power Supplies

Sipariş No : CH-62000E

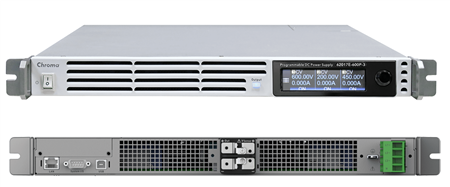

62000E Series Programmable 1U Single&Multiple DC Power Supplies

62000E series Programmable 1U 1U Single&Multiple DC Power Supplies

Key Features :

  • Voltage rating: Up to 1200V
  • Current rating: 22.5A max.
  • Single output models: 1.7kW, 3.4kW, 5kW

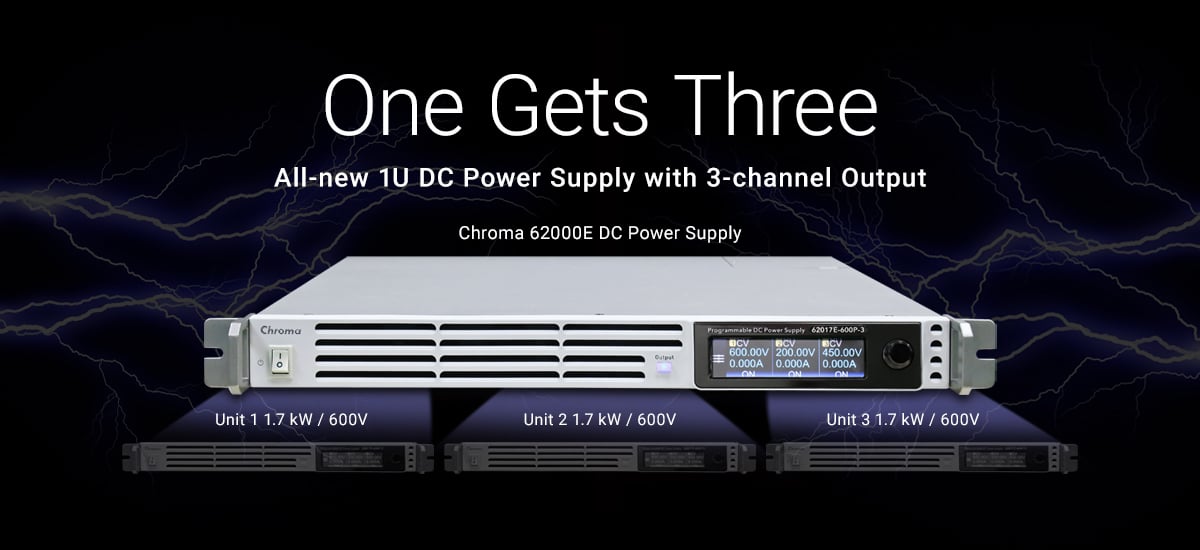

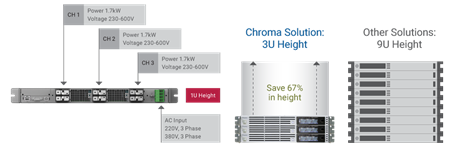

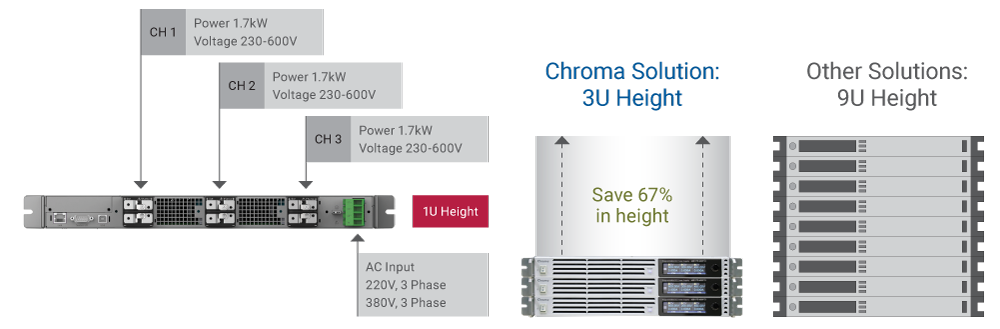

  • Multiple output models: 3x1.7kW channels in 1U
  • Master/slave parallel up to a max of 20kW
  • Fixed or Auto-ranging output models
  • Auto sequence programming
  • CV/CC modes priority
  • High-precision measurement
  • High speed transient response <1ms
  • Low output ripple & noise
  • Intuitive and user-friendly touch screen
  • Standard USB, LAN interfaces
  • Optional APG, CAN FD, GPIB, and master/slave parallel control interfaces
  • AC input: 1-phase/3-phase 200~240Vac or 3-phase 380~400Vac
