Key Features :

• Rated power: 6kW, 12kW, 18kW
• Voltage range: 600V, 1,200V, 1,800V
• Current range: Up to 120A
• High Power Density: 18kW @ 3U height

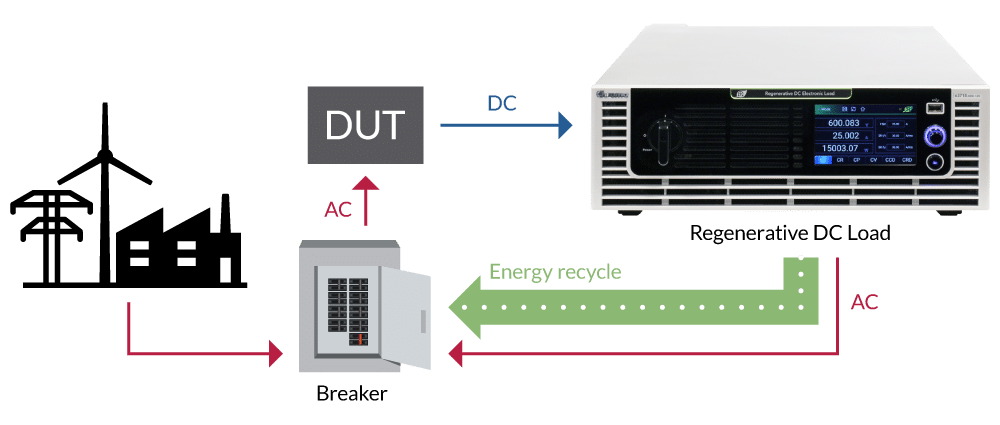

• Energy recovery efficiency: Up to 93%
• Operating modes: Constant Current, Constant Resistance, Constant Voltage and Constant Power
• Master/Slave parallel control, up to 10 units in parallel
• User defined current waveform
• 256 sequences directly programmable via the front panel
• Highly accurate voltage and current measurement
• Measurement of Protection Points for voltage, current, and Maximum
• Power Point (Pmax) when DUT's over-current/over-load protection is activated
• Time measurement, battery discharge timing
• Intelligent fan control
• Protection functions: Over-current (adjustable), over-temperature, over-power (adjustable) protection, over-voltage alarm
• Standard USB and LAN interfaces
• Optional GPIB or CAN interface
