- Frequency Range 10 µHz…25 MHz
- Output Voltage 5 mVpp…10 Vpp (into 50 Ω) DC Offset ±5 mV…5 V
- Arbitrary Waveform Generator: 250 MSa/s, 14 Bit, 256 kPts
- Sine, Square, Pulse, Triangle, Ramp, Arbitrary Waveforms incl. Standard Curves (white Noise, Cardiac etc.)
- Total Harmonic Distortion 0.04 % (f <100 kHz)
- Burst, Sweep, Gating, external Trigger
- Rise Time <8ns, in Pulse Mode 8…500 ns Variable-Edge-Time
- Pulse Mode: Frequency Range 100 µHz…12.5 MHz [25 MHz], Pulse Width 15 ns…999 s, Resolution 5 ns

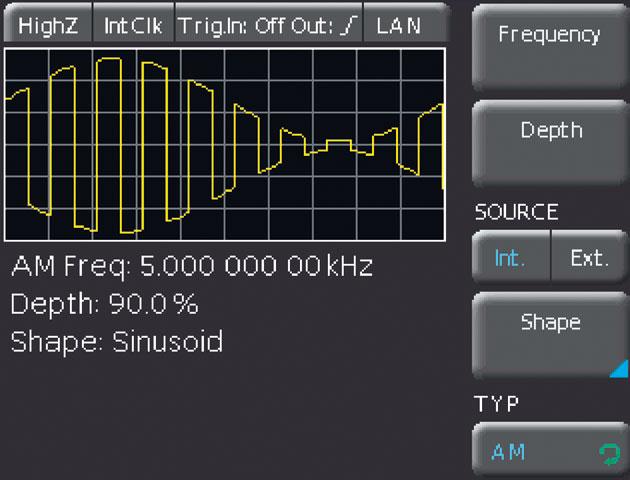

- Modulation Modes AM, FM, PM, PWM, FSK (int. and ext.)
- 10MHz Timebase: ±1 ppm TCXO, rear I/O BNC Connector
- Front USB Connector: Save and Recall of Waveforms and Settings
- 8.9 cm (3.5") TFT: crisp Representation of the Waveform and all Parameters

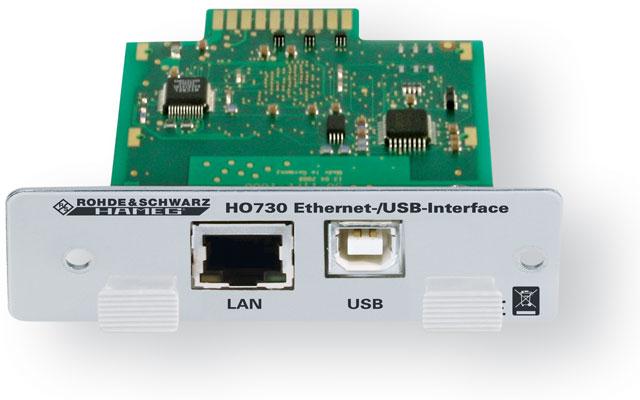

- USB/RS-232 Dual-Interface, optional Ethernet/USB Dual-Interface or IEEE-488 (GPIB)
