Key Features：

- 0.1% basic accuracy
- Transformer test parameters (11025), Turns Ratio, DCR, Mutual Inductance
- 0Hz, 60Hz, 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 40kHz, 50kHz, 100kHz test frequencies
- 21ms measurement time (≧100Hz)
- Agilent 4263B LCR Meter commands compatible
- 4 different output resistance modes selectable for non-linear inductor and capacitor measuring
- High resolution in low impedance(0.01mΩ) and high accuracy 0.3% till 100mΩ range
- Adjustable DC bias current up to 200mA (constant 25Ω) (11025)
- 1320 Bias Current Source directly control capability
- 0.01mΩ ~ 99.99MΩ wide measurement range (4 1/2 digits)
- Dual frequency function (11022 option) for automatic production
- BIAS comparator function
- Comparator function and 8/99 bin-sorting function
- Pass/fail judge result for automatic production
- Handler interface trigger edge (rising/falling) programmable
- Test signal level monitor function
- Standard GPIB (IEEE-488) and handler interface, option RS 232 I/F
- Open/short zeroing, load correction
- LabView® Driver

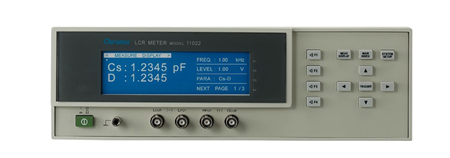

The Chroma 11022 and 11025 LCR Meter s are the measurement instruments for passive components. They are applicable to the automatic manufacturers for passive components in material inspection. With the features of 21ms high-speed measurement and 0.1% accuracy, 11022 LCR Meter fulfills the requirements for fast production. Its functions of 8-level counting, 8/99 Bin-sorting, pass/fail judgment, and 50 sets of internal save and recall settings totally meet the production line requirements for easy operation.

The four impedance output modes can measure the results with the LCR Meters of other brands to get a common measurement standard. Chroma 11025 LCR Meter is compatible with HP 4263B LCR Meter IEEE-488.2 control interface and has three impedance output modes for selection. The measurement results can also be compared with other brand of LCR Meters. Chroma11022/11025 is the ideal selection for passive components quality assurance and automatic production.


11022 LCR Meter
11025 LCR Meter
A110104 SMD Test Cable #17
A110211 Component Test Fixture
A110212 Component Remote Test Fixture
A110232 4 BNC Test Cable with Clip#18
A110234 High Frequency Test Cable
A110236 19" Rack Mounting Kit
A110239 4 Terminals SMD Electrical Capacitor Test Box (Patent)
A110242 Battery ESR Test Kit
A110244 High Capacitance Capacitor Test Fixture
A110245 Ring Core Test Fixture
A113012 Vacuum Generator for A132574
A113014 Vacuum Pump for A132574
A132574 Test Fixture for SMD power choke
A133004 SMD Test Box
A133019 BNC Test Lead, 2M (single side open)
A165009 4 BNC Test Cable with Probe
