TDR2000 Series Dual Channel TDR

T&M Equipment → Cable Fault Locators → TDR2000 Series Dual Channel TDR

Sipariş No : MG-TDR2000

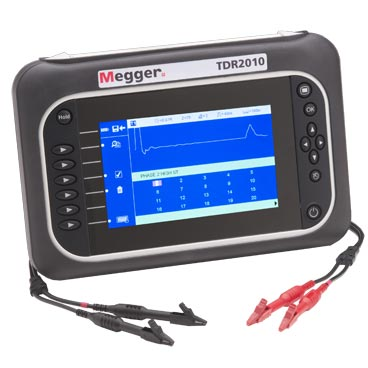

TDR2000 Series Dual Channel TDR

Dual Channel Time Domain Reflectometers

For TDR2000/3 and TDR2010

IP54 rating offers real life working
AUTO set up mode for instant, easy use
AutoFind and FindEnd functions helps find the fault fast
Trace tagging facility that allows a name to be saved with the trace
Distance dependent gain to counteract signal attenuation
Step function to improve detection of near end faults
Designed for the location of faults communication and pilot cables and some power supplies the TDR2000/3 and TDR2010 are tough. They are rated to CAT IV 150 V and are dust and weatherproof to IP54, so there are ready to work in the real world.

Features such as Auto setup assist the novice to get useful traces fast while the AUTO Find fuction assist the interpretation of the traces. For the more expert user there is the ability to manually override the auto function permitting fine tuning to enable identification of hard to determine faults.

Megger's new screen layout permits the operator to over lay traces, assisting in the location of faults.

For TDR2050

CAT IV 600 V input protection
IP54 rating offers real life working
AUTO set up mode for instant, easy use
AutoFind and FindEnd functions helps find the fault fast
Trace tagging facility that allows a name to be saved with the trace
Distance dependent gain to counteract signal attenuation
Step function to improve detection of near end faults
The TDR2050 is a tough, two-channel cable fault locator for power applications. Designed for the location of faults in electrical power supply cables, the TDR2050 is supplied with fused test leads that are rated to CAT IV 600 V and are dust and weatherproof to IP54, making it ideal for working on site or in the field.

This time domain reflectometer has a host of automatic features, such as Auto Setup, which can help you get useful traces fast, and the AutoFind function, which assists the interpretation of these traces. Expert users have the ability to manually override these automatic functions, enabling them to fine-tune the diagnostics to help them identify hard to determine faults.

What’s more, Megger's new screen layout permits the operator to compare traces, allowing close examination between trace conditions.
Model/Option Selection Matrix
Stock Code:
MG-TDR2000/3
Details:
Advanced Dual Channel TDR For use on Telecom TNV-3 circuit, or 150 V CAT IV power circuits
Option Type:
Model
Stock Code:
MG-TDR2010
Details:
Advanced Dual Channel TDR For use on Telecom TNV-3 circuit, or 150 V CAT IV power circuits
Option Type:
Model
Stock Code:
MG-TDR2050
Details:
Advanced Dual Channel TDR For use on Telecom TNV-3 circuit, or 600 V CAT IV power circuits
Option Type:
Model
Stock Code:
MG-6231-652
Details:
Miniature clip test lead set (1 pair)
Option Type:
Option-HW
Stock Code:
MG-1002-015
Details:
Fused test lead set (1 pair)
Option Type:
Option-HW
Stock Code:
MG-1002-491
Details:
Red and black probes and clips - for use with all Megger TDR Fused Test Leads.
Option Type:
Option-HW
Stock Code Details Option Type
MG-TDR2000/3 Advanced Dual Channel TDR For use on Telecom TNV-3 circuit, or 150 V CAT IV power circuits Model
MG-TDR2010 Advanced Dual Channel TDR For use on Telecom TNV-3 circuit, or 150 V CAT IV power circuits Model
MG-TDR2050 Advanced Dual Channel TDR For use on Telecom TNV-3 circuit, or 600 V CAT IV power circuits Model
MG-6231-652 Miniature clip test lead set (1 pair) Option-HW
MG-1002-015 Fused test lead set (1 pair) Option-HW
MG-1002-491 Red and black probes and clips - for use with all Megger TDR Fused Test Leads. Option-HW
