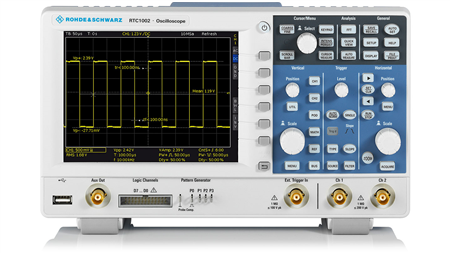

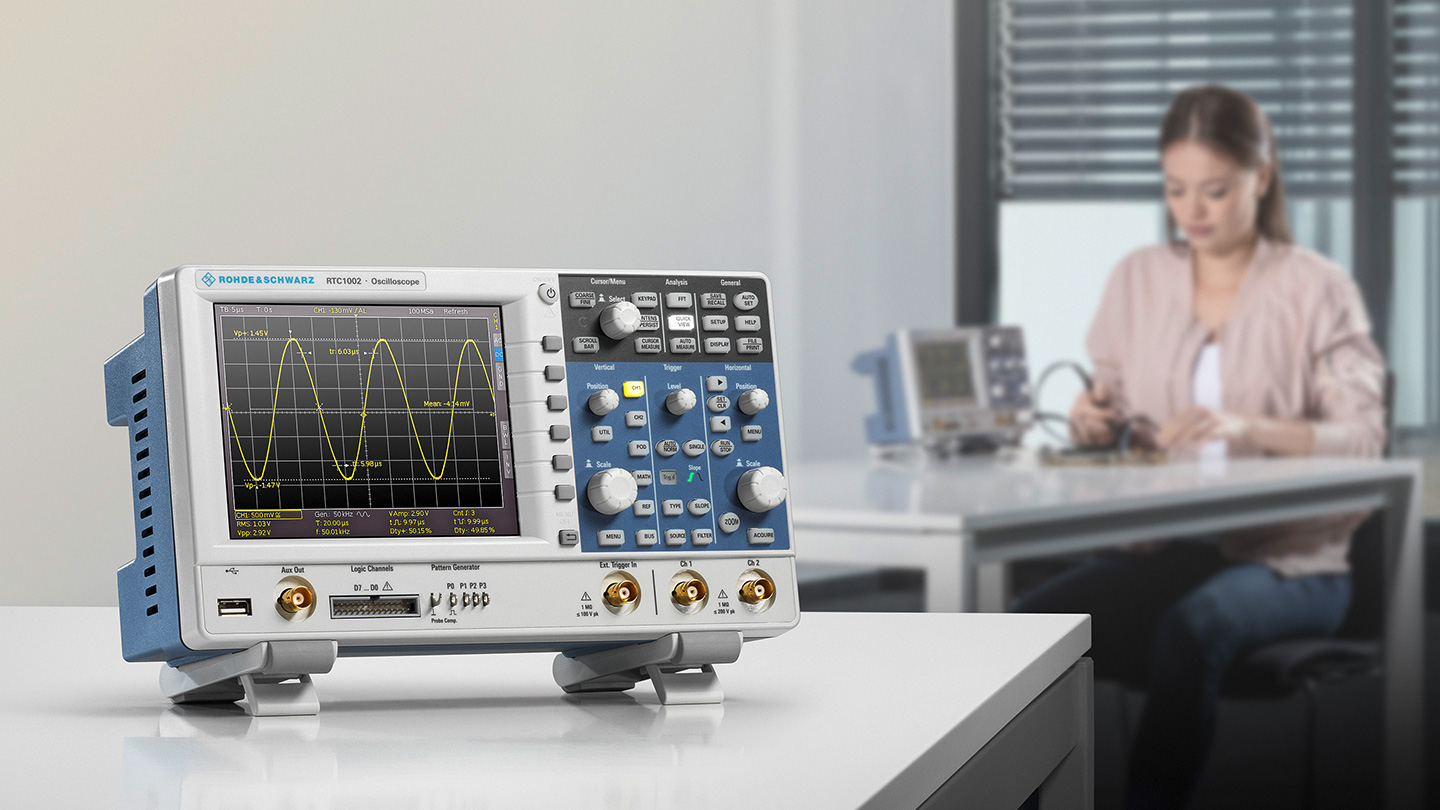

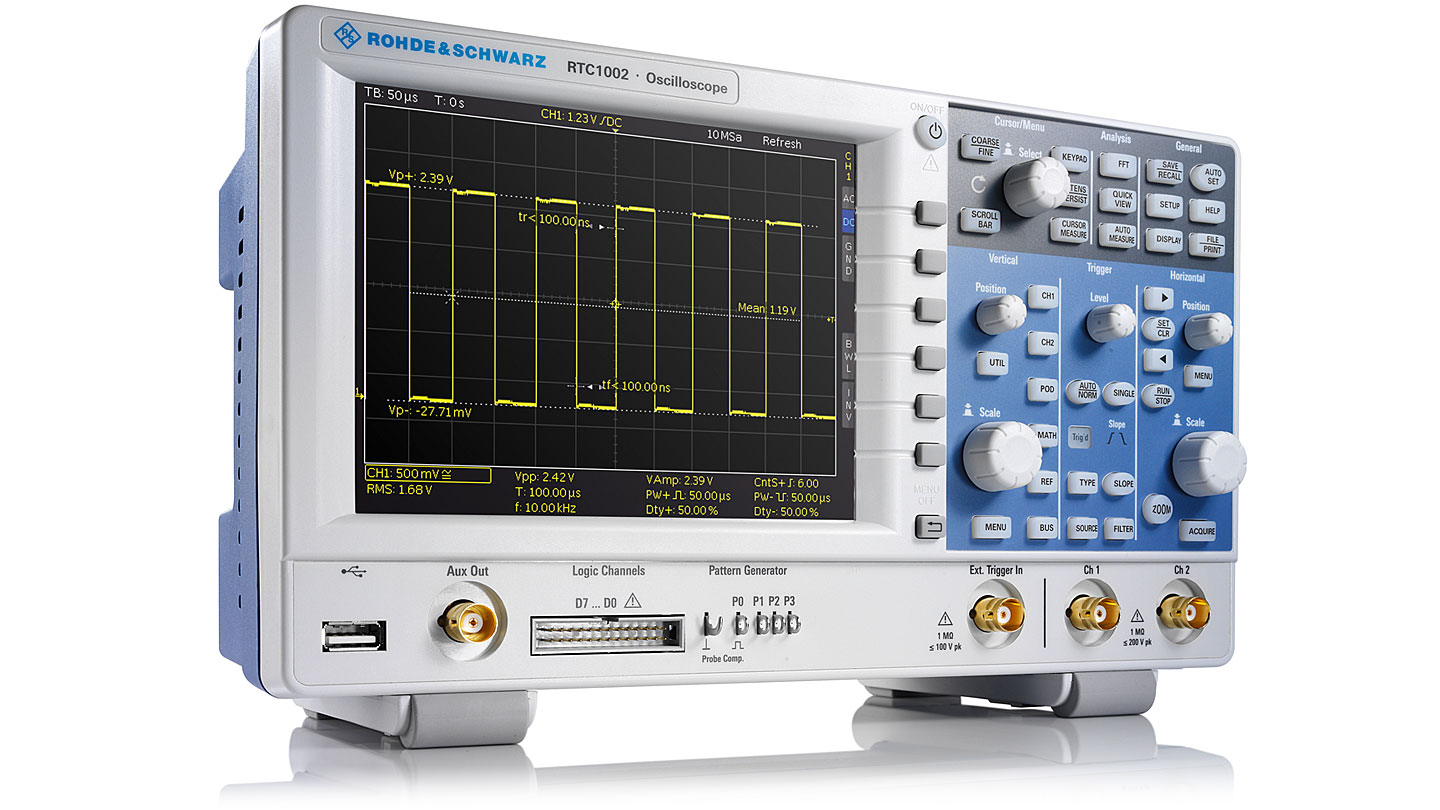

RTC1000 Series Digital Oscilloscopes

2 Channel, 50MHz, 70MHz, 100MHz, 200MHz, 300MHz Digital Oscilloscope

High sensitivity, multifunctionality and a great price – that is what makes the R&S®RTC1000 oscilloscope so special. From embedded developers to service technicians to educators – the wide range of functions address a broad group of users. State-of-the-art, high-performance technology in a fanless design meets the high requirements of today's customers.

Key Facts

50 MHz to 300 MHz Bandwidth
Up to 2 Gsample/s Sampling Rate
Up to 2 MSample Memory Depth
8-bit ADC Resolution
10 000 waveforms/s Update Rate
1 mV/div to 10 V/div Input Sensitivity
Optional MSO: 8 Digital Channels (retrofittable)
Integrated Waveform and Pattern Generator

Features & Benefits

Top-class hardware-based acquisition for precise measurement results

Up to 2 Gsample sampling rate
2 Msample memory depth
Low-noise measurement due to state-of-the-art A/D converters

Versatile measurement functions and fast results

Wide selection of automatic measurement functions
QuickView: key results at the press of a button
Mask test: easy creation of a new mask with just a few keystrokes
FFT: the easy way to analyze the signal spectrum

X-in-1 oscilloscope

Oscilloscope
Logic analyzer
Protocol analyzer
Waveform and pattern generator
Digital voltmeter
Component tester
Frequency analysis mode
Mask test mode

Future-ready investment and scalability

Free firmware updates
Bandwidth upgrades as required
Serial bus analysis options via software licenses

Model/Option Selection Matrix

Stock Code	Details	Option Type
RS-1335.7500P02-RTC1K-52	50 MHz 2 Channel Digital Oscilloscope	Model
RS-1335.7500P72-RTC1K-72	70 MHz 2 Channel Digital Oscilloscope	Model
RS-1335.7500P12-RTC1K-102	100 MHz 2 Channel Digital Oscilloscope	Model
RS-1335.7500P22-RTC1K-202	200 MHz 2 Channel Digital Oscilloscope	Model
RS-1335.7500P32-RTC1K-302	300 MHz 2 Channel Digital Oscilloscope	Model
RS-1335.7281.03-RTC-B1	Mixed Signal Upgrade for non-MSO Models, 300 MHz	Option-HW
RS-1335.7298.03-RTC-B6	Waveform Generator	Option-HW
RS-1335.7300.03-RTC-B220	Bandwidth Upgrade of the R&S®RTC1002 to 70 MHz	Option-HW
RS-1335.7317.03-RTC-B221	Bandwidth Upgrade of the R&S®RTC1002 to 100 MHz	Option-HW
RS-1335.7275.03-RTC-B222	Bandwidth Upgrade of the R&S®RTC1002 to 200 MHz	Option-HW
RS-1335.7323.03-RTC-B223	Bandwidth Upgrade of the R&S®RTC1002 to 300 MHz	Option-HW
RS-1335.7230.03-RTC-K1	I²C/SPI Serial Triggering and Decoding	Option-SW
RS-1335.7246.03-RTC-K2	UART/RS-232/RS-422/RS-485 Serial Triggering and Decoding	Option-SW
RS-1335.7252.03-RTC-K3	CAN/LIN Serial Triggering and Decoding	Option-SW
RS-1335.7330.03-RTC-PK1	Application Bundle (consists of the R&S®RTC-K1, R&S®RTC-K2, R&S®RTC-K3 and R&S®RTC-B6 options)	Bundle
RS-1333.0867.02-RTC-Z3	Soft Case for R&S®RTC1002 Oscilloscope and Accessories	Accessory
RS-1333.0967.02-ZZA-RTC1K	19" Rackmount Adapter for R&S®RTC1000 with 4HU	Accessory
RS-1335.7875.02-RT-ZA19	Accessory Case for Probes and Small Parts for all Rohde and Schwarz Oscilloscopes	Accessory
