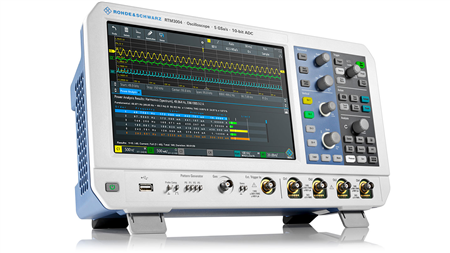

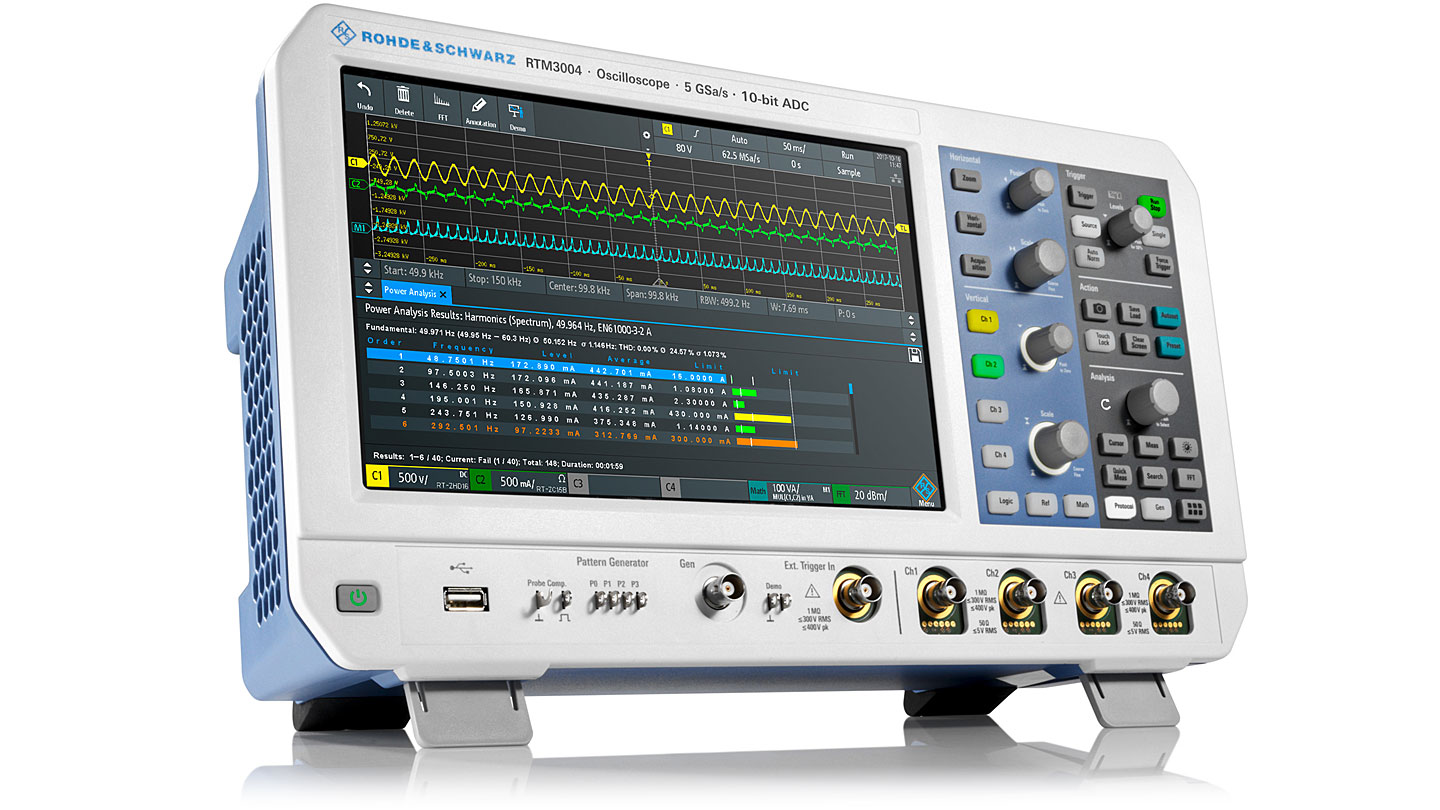

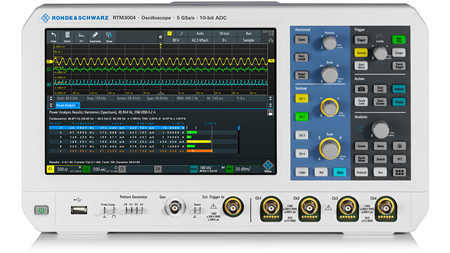

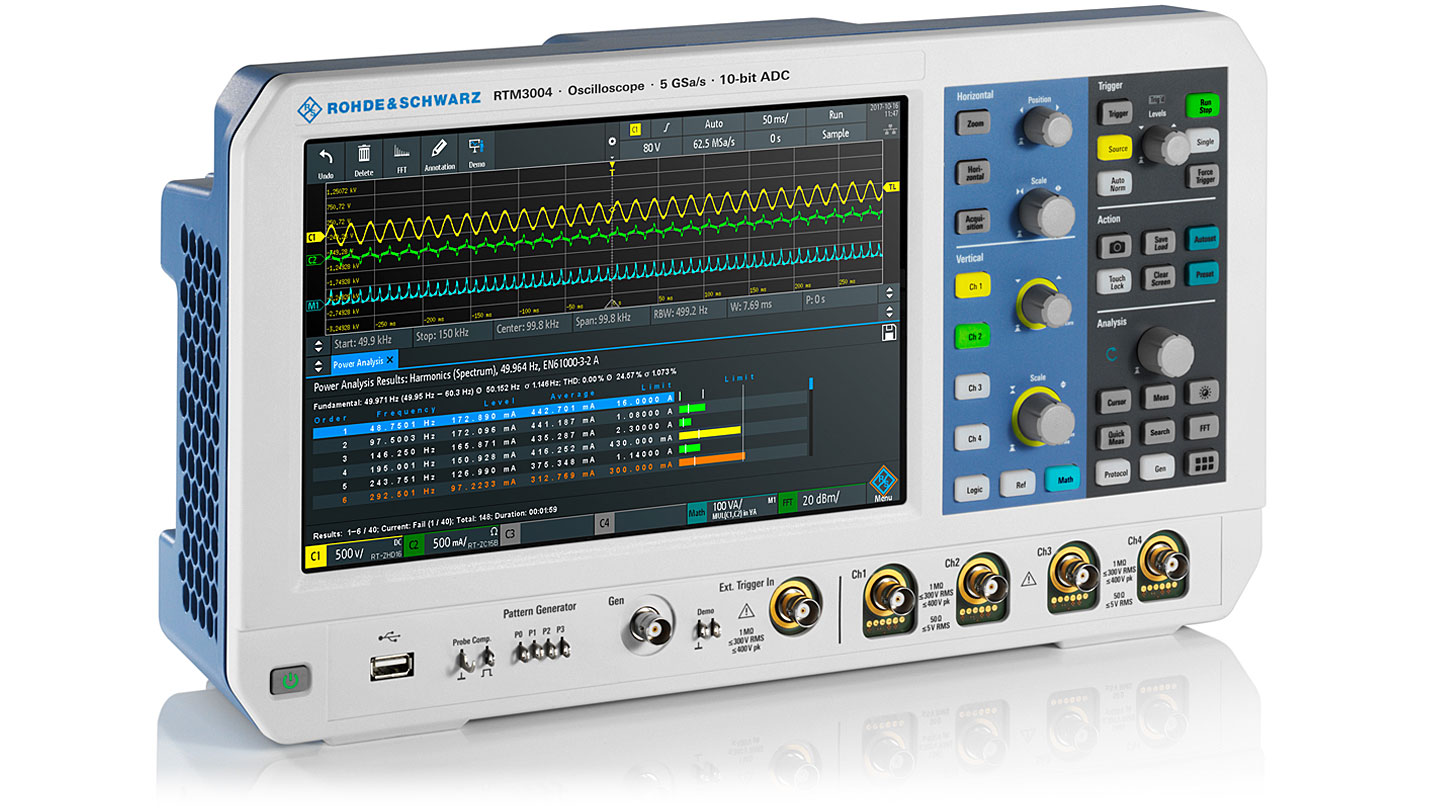

RTM3000 Series Digital Oscilloscopes

2/4 Channel, 100MHz, 200MHz, 350MHz, 500MHz, 1GHz Digital Oscilloscope

Designed as daily problem-solving tool, the R&S®RTM3000 combines the power of ten (10-bit ADC, 10 times the memory and 10.1" touchscreen) with a Rohde & Schwarz probe interface for all Rohde & Schwarz probes.

Key Facts

100 MHz to 1 GHz Bandwidth
Up to 5 Gsample/s Sampling Rate
Up to 80 MSample Memory Depth
10-bit ADC Resolution
10.1" High-Resolution Capacitive Touchscreen
64 000 waveforms/s Update Rate (2 000 000 in Fast Segmented Memory Mode, Optional)
500 µV/div to 10 V/div Input Sensitivity
MSO: 16 Digital Channels (Optional)
Arbitrary Waveform and Pattern Generator (Optional)

Features & Benefits

See small signal details in the presence of large signals

10-bit ADC resolution: 1024 levels, 4 times more than 8-bit ADC
500 µV/div vertical resolution: full measurement bandwidth and low noise

Capture more time at full bandwidth

80 Msample memory depth: standard acquisition memory 8 to 40 times better
5 Gsample: maintains fast sampling rates at all times
Segmented memory: 400 Msample with history function

10.1" high-resolution capacitive touchscreen with gesture support

Gesture support for scaling and zooming
More than twice the display area compared to similiar oscilloscopes
Nine times the pixels of comparable oscilloscopes: 1280 × 800 pixel resolution
12 horizontal grid lines for more signal details

X-in-1 oscilloscope

Oscilloscope
Logic analyzer
Protocol analyzer
Waveform and pattern generator
Digital voltmeter
Frequency analysis mode
Mask test mode
History and segmented memory mode

Frequency response analysis (Bode plot)

Analyze the frequency response of passive filters and amplifier circuits
Perform control loop response measurements
Perform power supply rejection ratio measurements
Simple and fast documentation

The best choice for power

Analyze the input, output and transfer function of switched-mode power supplies
Measurement wizard for fast results
Simple and fast documentation
Analyze harmonic current in line with conventional EN, MIL and RTCA standards

Spectrum analysis: identify interactions between time and frequency

Spectrogram: display of frequency over time
Peak Markers: find peaks automatically

Protocol analysis: effıciently debug serial buses

Protocol aware triggering and decoding for serial buses
Segmented memory for long time captures
Table view of packets/frames

Supported buses
Embedded	► I²C
	► UART/RS-232/RS-422/RS-485
	► SPI (2/3/4-wire)
Aerospace	► MIL-STD-1553
	► ARINC 429
Automotive, industrial	► CAN
	► LIN
Audio	► I²S/LJ/RJ/TDM

Model/Option Selection Matrix

Stock Code	Details	Option Type
RS-1335.8794.02-RTM3002	100 MHz 2 Channel Digital Oscilloscope	Model
RS-1335.8794.04-RTM3004	100 MHz 4 Channel Digital Oscilloscope	Model
RS-1335.8794P22-RTM3K-22	200 MHz 2 Channel Digital Oscilloscope	Model
RS-1335.8794P24-RTM3K-24	200 MHz 4 Channel Digital Oscilloscope	Model
RS-1335.8794P32-RTM3K-32	350 MHz 2 Channel Digital Oscilloscope	Model
RS-1335.8794P34-RTM3K-34	350 MHz 4 Channel Digital Oscilloscope	Model
RS-1335.8794P52-RTM3K-52	500 MHz 2 Channel Digital Oscilloscope	Model
RS-1335.8794P54-RTM3K-54	500 MHz 4 Channel Digital Oscilloscope	Model
RS-1335.8794P62-RTM3K-102	1 GHz 2 Channel Digital Oscilloscope	Model
RS-1335.8794P64-RTM3K-104	1 GHz 4 Channel Digital Oscilloscope	Model
RS-1335.8988.02-RTM-B1	Mixed Signal Upgrade for non-MSO Models, 400 MHz	Option-HW
RS-1335.8994.02-RTM-B6	Arbitrary Waveform Generator	Option-HW
RS-1335.9003.02-RTM-B222	Bandwidth Upgrade of the R&S®RTM3002 to 200 MHz	Option-HW
RS-1335.9010.02-RTM-B223	Bandwidth Upgrade of the R&S®RTM3002 to 350 MHz	Option-HW
RS-1335.9026.02-RTM-B225	Bandwidth Upgrade of the R&S®RTM3002 to 500 MHz	Option-HW
RS-1335.9032.02-RTM-B2210	Bandwidth Upgrade of the R&S®RTM3002 to 1 GHz	Option-HW
RS-1335.9049.02-RTM-B242	Bandwidth Upgrade of the R&S®RTM3004 to 200 MHz	Option-HW
RS-1335.9055.02-RTM-B243	Bandwidth Upgrade of the R&S®RTM3004 to 350 MHz	Option-HW
RS-1335.9061.02-RTM-B245	Bandwidth Upgrade of the R&S®RTM3004 to 500 MHz	Option-HW
RS-1335.9078.02-RTM-B2410	Bandwidth Upgrade of the R&S®RTM3004 to 1 GHz	Option-HW
RS-1335.8807.02-RTM-K1	I²C/SPI Serial Triggering and Decoding	Option-SW
RS-1335.8813.02-RTM-K2	UART/RS-232/RS-422/RS-485 Serial Triggering and Decoding	Option-SW
RS-1335.8820.02-RTM-K3	CAN/LIN Serial Triggering and Decoding	Option-SW
RS-1335.8842.02-RTM-K5	Audio (I²S/LJ/RJ/TDM) Triggering and Decoding	Option-SW
RS-1335.8859.02-RTM-K6	MIL-STD-1553 Serial Triggering and Decoding	Option-SW
RS-1335.8865.02-RTM-K7	ARINC 429 Serial Triggering and Decoding	Option-SW
RS-1335.8907.02-RTM-K15	History and Segmented Memory	Option-SW
RS-1335.8913.02-RTM-K18	Spectrum Analysis and Spectrogram	Option-SW
RS-1335.8920.02-RTM-K31	Power Analysis	Option-SW
RS-1335.9178.02-RTM-K36	Frequency Response Analysis (Bode Plot)	Option-SW
RS-1335.8942.02-RTM-PK1	Application Bundle (consists of the R&S®RTM-K1, R&S®RTM-K2, R&S®RTM-K3, R&S®RTM-K5, R&S®RTM-K6, R&S®RTM-K7, R&S®RTM-K15, R&S®RTM-K18, R&S®RTM-K31, R&S®RTM-K36 and R&S®RTM-B6 options)	Bundle
RS-1333.1728.02-RTB-Z1	Front Cover	Accessory
RS-1333.1734.02-RTB-Z3	Soft Bag	Accessory
RS-1335.9290.02-RTB-Z4	Transit Case with Wheels for R&S®RTB	Accessory
RS-1333.1711.02-ZZA-RTB2K	19" Rackmount Adapter for R&S®RTB2000, R&S®RTM3000 or R&S®RTA4000 with 5HU	Accessory
RS-1335.7875.02-RT-ZA19	Accessory Case for Probes and Small Parts for all Rohde and Schwarz Oscilloscopes	Accessory
