RTB2000 Series Digital Oscilloscopes

T&M Equipment → Oscilloscopes → RTB2000 Series Digital Oscilloscopes

Sipariş No : RS-RTB2000

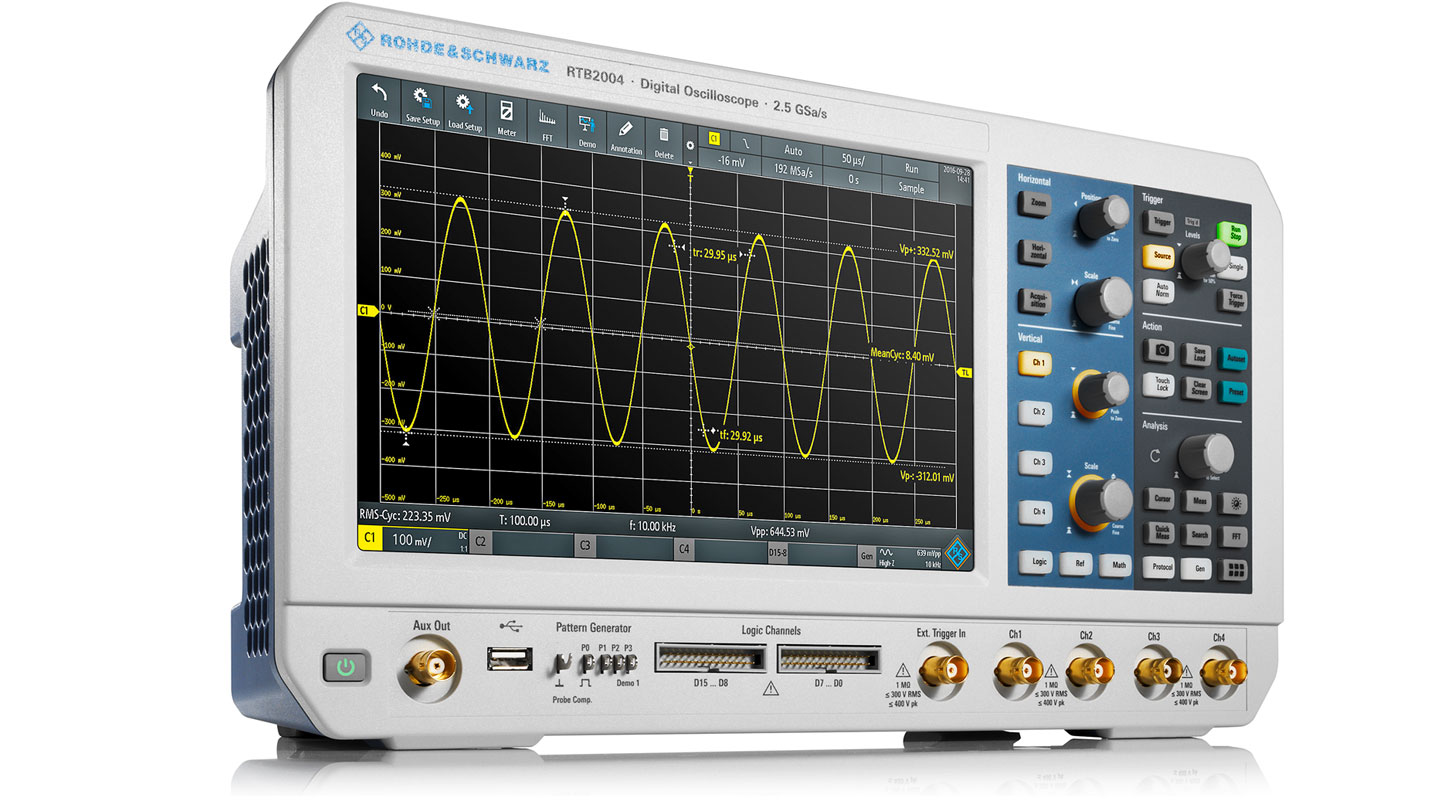

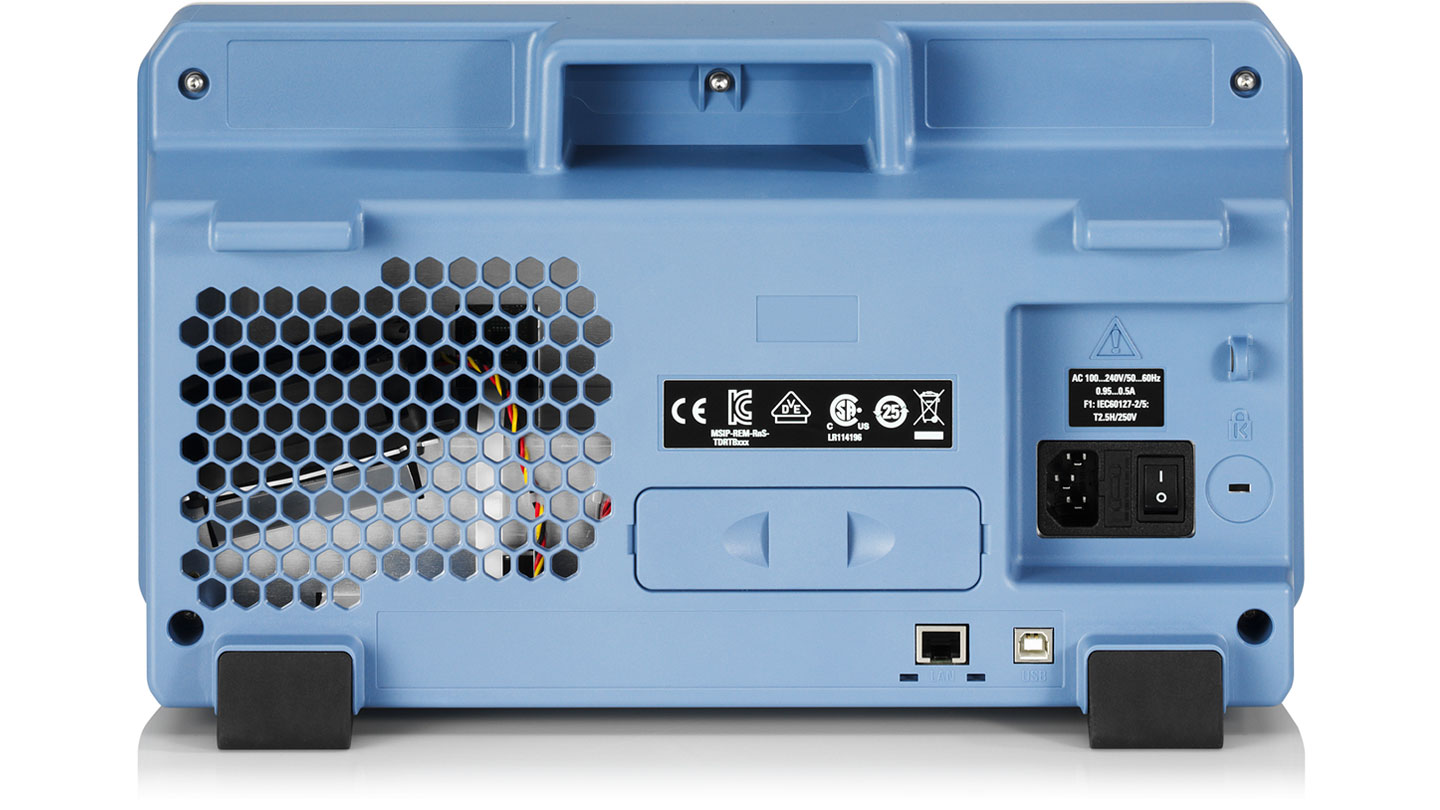

RTB2000 Series Digital Oscilloscopes

2/4 Channel, 70MHz, 100MHz, 200MHz, 300MHz Digital Oscilloscope

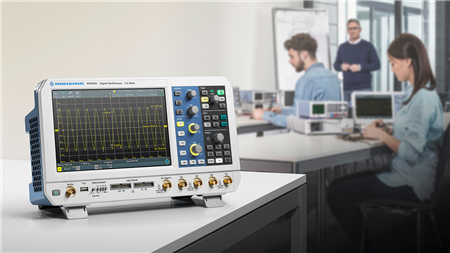

Power of ten (10-bit ADC, 10 Msample memory and 10.1" touchscreen) combined with smart operating concepts make the R&S®RTB2000 oscilloscopes the perfect tool for university laboratories, for troubleshooting embedded designs during development and for production and service departments.

Key Facts

  • 70 MHz to 300 MHz Bandwidth
  • Up to 2.5 Gsample/s Sampling Rate
  • Up to 20 MSample Memory Depth
  • 10-bit ADC Resolution
  • 10.1" High-Resolution Capacitive Touchscreen
  • 50 000 waveforms/s Update Rate (300 000 in Fast Segmented Memory Mode, Optional)
  • 1 mV/div to 5 V/div Input Sensitivity
  • MSO: 16 Digital Channels (Optional)
  • Arbitrary Waveform and Pattern Generator (Optional)

Features & Benefits

See small signal details in the presence of large signals

  • 10-bit A/D converter resolution
  • 1 mV/div true vertical resolution

Capture more time at full bandwidth

  • 10 Msample standard, 20 Msample interleaved
  • 160 Msample segmented memory with more than 13000 recordings
  • History mode: analysis of past acquisitions
  • 1.25 Gsample/s, 2.5 Gsample/s interleaved

10.1" high-resolution capacitive touchscreen with gesture support

  • Gesture support for scaling and zooming
  • More than twice the display area compared to similiar oscilloscopes
  • Nine times the pixels of comparable oscilloscopes: 1280 × 800 pixel resolution
  • 12 horizontal grid lines for more signal details

X-in-1 oscilloscope

  • Oscilloscope
  • Logic analyzer
  • Protocol analyzer
  • Waveform and pattern generator
  • Digital voltmeter
  • Frequency analysis mode
  • Mask test mode
  • History and segmented memory mode

Frequency response analysis (Bode plot)

  • Analyze the frequency response of passive filters and amplifier circuits
  • Perform control loop response measurements
  • Perform power supply rejection ratio measurements
  • Simple and fast documentation

The best choice for education

  • Education mode to disable automatic functions
  • X-in-1 integration



Model/Option Selection Matrix
Stock Code:
RS-1333.1005.02-RTB2002
Details:
70 MHz 2 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1333.1005.04-RTB2004
Details:
70 MHz 4 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1333.1005P12-RTB2K-102
Details:
100 MHz 2 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1333.1005P14-RTB2K-104
Details:
100 MHz 4 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1333.1005P22-RTB2K-202
Details:
200 MHz 2 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1333.1005P24-RTB2K-204
Details:
200 MHz 4 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1333.1005P32-RTB2K-302
Details:
300 MHz 2 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1333.1005P34-RTB2K-304
Details:
300 MHz 4 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1333.1105.02-RTB-B1
Details:
Mixed Signal Upgrade for non-MSO Models, 300 MHz
Option Type:
Option-HW
Stock Code:
RS-1333.1111.02-RTB-B6
Details:
Arbitrary Waveform Generator
Option Type:
Option-HW
Stock Code:
RS-1333.1163.02-RTB-B221
Details:
Bandwidth Upgrade of the R&S®RTB2002 to 100 MHz
Option Type:
Option-HW
Stock Code:
RS-1333.1170.02-RTB-B222
Details:
Bandwidth Upgrade of the R&S®RTB2002 to 200 MHz
Option Type:
Option-HW
Stock Code:
RS-1333.1186.02-RTB-B223
Details:
Bandwidth Upgrade of the R&S®RTB2002 to 300 MHz
Option Type:
Option-HW
Stock Code:
RS-1333.1257.02-RTB-B241
Details:
Bandwidth Upgrade of the R&S®RTB2004 to 100 MHz
Option Type:
Option-HW
Stock Code:
RS-1333.1263.02-RTB-B242
Details:
Bandwidth Upgrade of the R&S®RTB2004 to 200 MHz
Option Type:
Option-HW
Stock Code:
RS-1333.1270.02-RTB-B243
Details:
Bandwidth Upgrade of the R&S®RTB2004 to 300 MHz
Option Type:
Option-HW
Stock Code:
RS-1333.1011.02-RTB-K1
Details:
I²C/SPI Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1333.1028.02-RTB-K2
Details:
UART/RS-232/RS-422/RS-485 Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1333.1034.02-RTB-K3
Details:
CAN/LIN Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1335.8007.02-RTB-K36
Details:
Frequency Response Analysis (Bode plot)
Option Type:
Option-SW
Stock Code:
RS-1333.1040.02-RTB-K15
Details:
History and Segmented Memory
Option Type:
Option-SW
Stock Code:
RS-1333.1092.02-RTB-PK1
Details:
Application Bundle (consists of the R&S®RTB-K1, R&S®RTB-K2, R&S®RTB-K3, R&S®RTB-K15, R&S®RTB-K36 and R&S®RTB-B6 options)
Option Type:
Bundle
Stock Code:
RS-1333.1728.02-RTB-Z1
Details:
Front Cover
Option Type:
Accessory
Stock Code:
RS-1333.1734.02-RTB-Z3
Details:
Soft Bag
Option Type:
Accessory
Stock Code:
RS-1335.9290.02-RTB-Z4
Details:
Transit Case with Wheels for R&S®RTB
Option Type:
Accessory
Stock Code:
RS-1333.1711.02-ZZA-RTB2K
Details:
19" Rackmount Adapter for R&S®RTB2000, R&S®RTM3000 or R&S®RTA4000 with 5HU
Option Type:
Accessory
Stock Code:
RS-1335.7875.02-RT-ZA19
Details:
Accessory Case for Probes and Small Parts for all Rohde and Schwarz Oscilloscopes
Option Type:
Accessory
Stock Code Details Option Type
RS-1333.1005.02-RTB2002 70 MHz 2 Channel Digital Oscilloscope Model
RS-1333.1005.04-RTB2004 70 MHz 4 Channel Digital Oscilloscope Model
RS-1333.1005P12-RTB2K-102 100 MHz 2 Channel Digital Oscilloscope Model
RS-1333.1005P14-RTB2K-104 100 MHz 4 Channel Digital Oscilloscope Model
RS-1333.1005P22-RTB2K-202 200 MHz 2 Channel Digital Oscilloscope Model
RS-1333.1005P24-RTB2K-204 200 MHz 4 Channel Digital Oscilloscope Model
RS-1333.1005P32-RTB2K-302 300 MHz 2 Channel Digital Oscilloscope Model
RS-1333.1005P34-RTB2K-304 300 MHz 4 Channel Digital Oscilloscope Model
RS-1333.1105.02-RTB-B1 Mixed Signal Upgrade for non-MSO Models, 300 MHz Option-HW
RS-1333.1111.02-RTB-B6 Arbitrary Waveform Generator Option-HW
RS-1333.1163.02-RTB-B221 Bandwidth Upgrade of the R&S®RTB2002 to 100 MHz Option-HW
RS-1333.1170.02-RTB-B222 Bandwidth Upgrade of the R&S®RTB2002 to 200 MHz Option-HW
RS-1333.1186.02-RTB-B223 Bandwidth Upgrade of the R&S®RTB2002 to 300 MHz Option-HW
RS-1333.1257.02-RTB-B241 Bandwidth Upgrade of the R&S®RTB2004 to 100 MHz Option-HW
RS-1333.1263.02-RTB-B242 Bandwidth Upgrade of the R&S®RTB2004 to 200 MHz Option-HW
RS-1333.1270.02-RTB-B243 Bandwidth Upgrade of the R&S®RTB2004 to 300 MHz Option-HW
RS-1333.1011.02-RTB-K1 I²C/SPI Serial Triggering and Decoding Option-SW
RS-1333.1028.02-RTB-K2 UART/RS-232/RS-422/RS-485 Serial Triggering and Decoding Option-SW
RS-1333.1034.02-RTB-K3 CAN/LIN Serial Triggering and Decoding Option-SW
RS-1335.8007.02-RTB-K36 Frequency Response Analysis (Bode plot) Option-SW
RS-1333.1040.02-RTB-K15 History and Segmented Memory Option-SW
RS-1333.1092.02-RTB-PK1 Application Bundle (consists of the R&S®RTB-K1, R&S®RTB-K2, R&S®RTB-K3, R&S®RTB-K15, R&S®RTB-K36 and R&S®RTB-B6 options) Bundle
RS-1333.1728.02-RTB-Z1 Front Cover Accessory
RS-1333.1734.02-RTB-Z3 Soft Bag Accessory
RS-1335.9290.02-RTB-Z4 Transit Case with Wheels for R&S®RTB Accessory
RS-1333.1711.02-ZZA-RTB2K 19" Rackmount Adapter for R&S®RTB2000, R&S®RTM3000 or R&S®RTA4000 with 5HU Accessory
RS-1335.7875.02-RT-ZA19 Accessory Case for Probes and Small Parts for all Rohde and Schwarz Oscilloscopes Accessory

Tender Specifications

Videos

Documents (Catalogue-Brochure-Manual)

RS RTB2000 Series Digital Oscilloscopes Brochure.pdf
