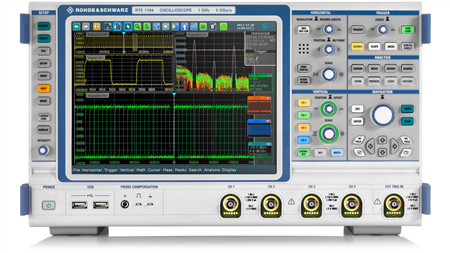

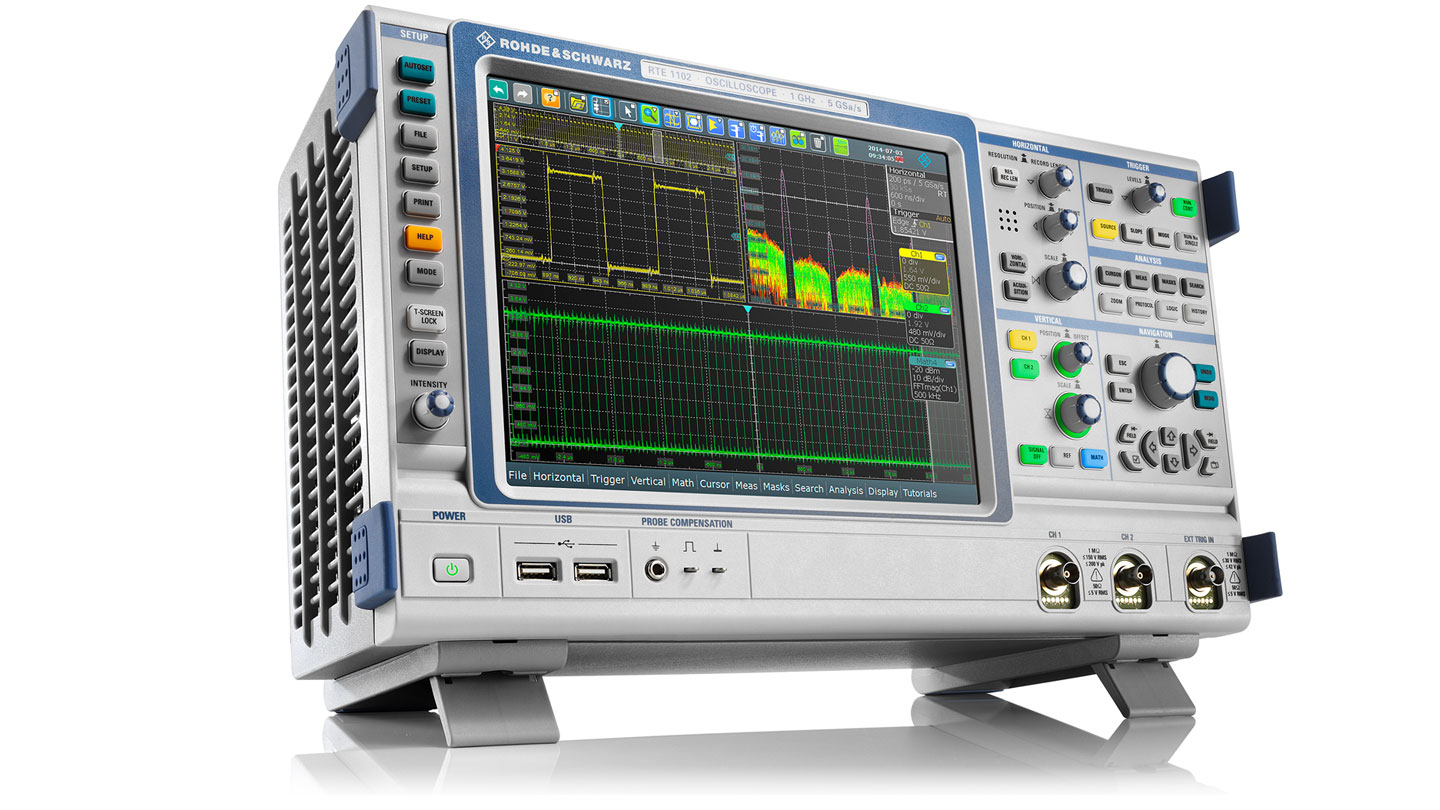

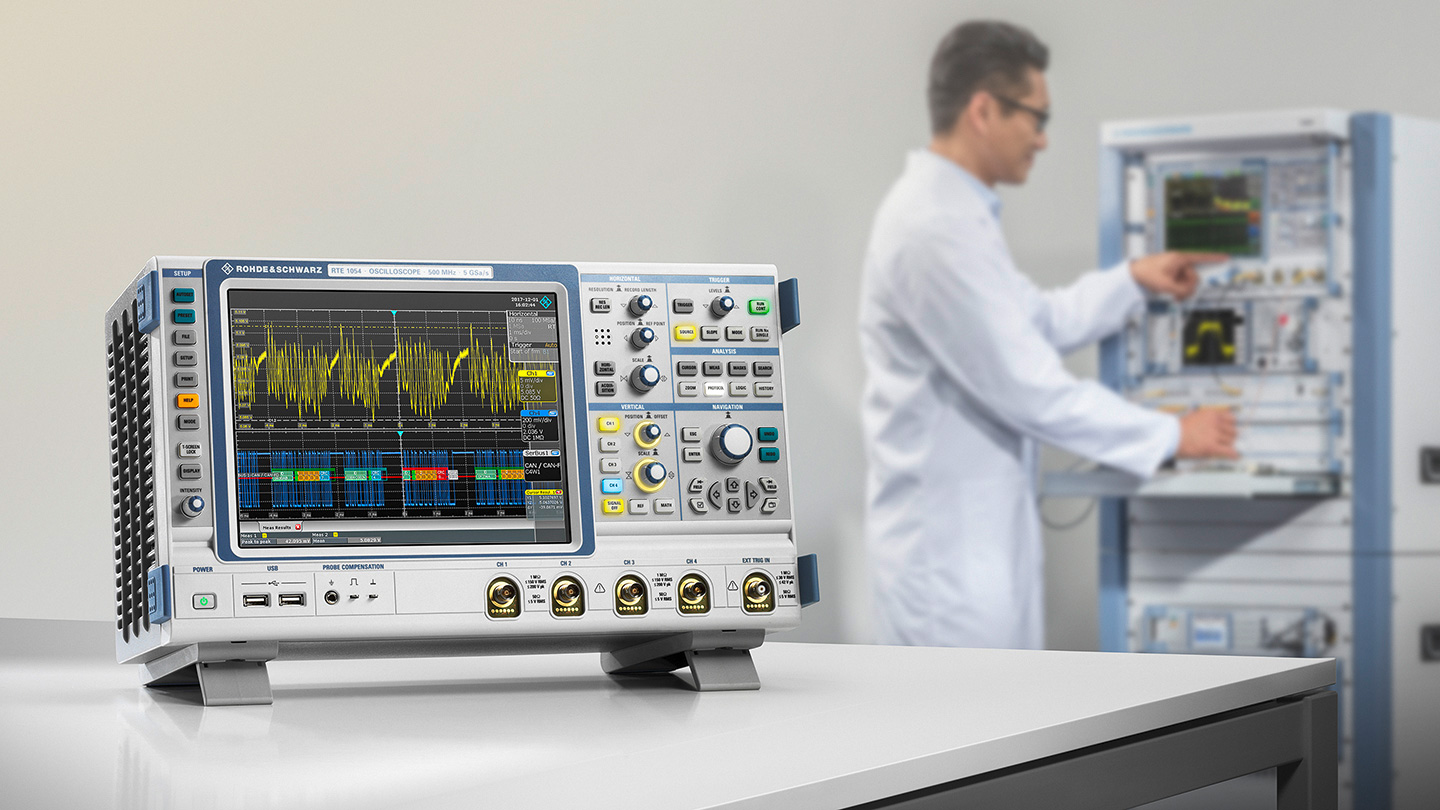

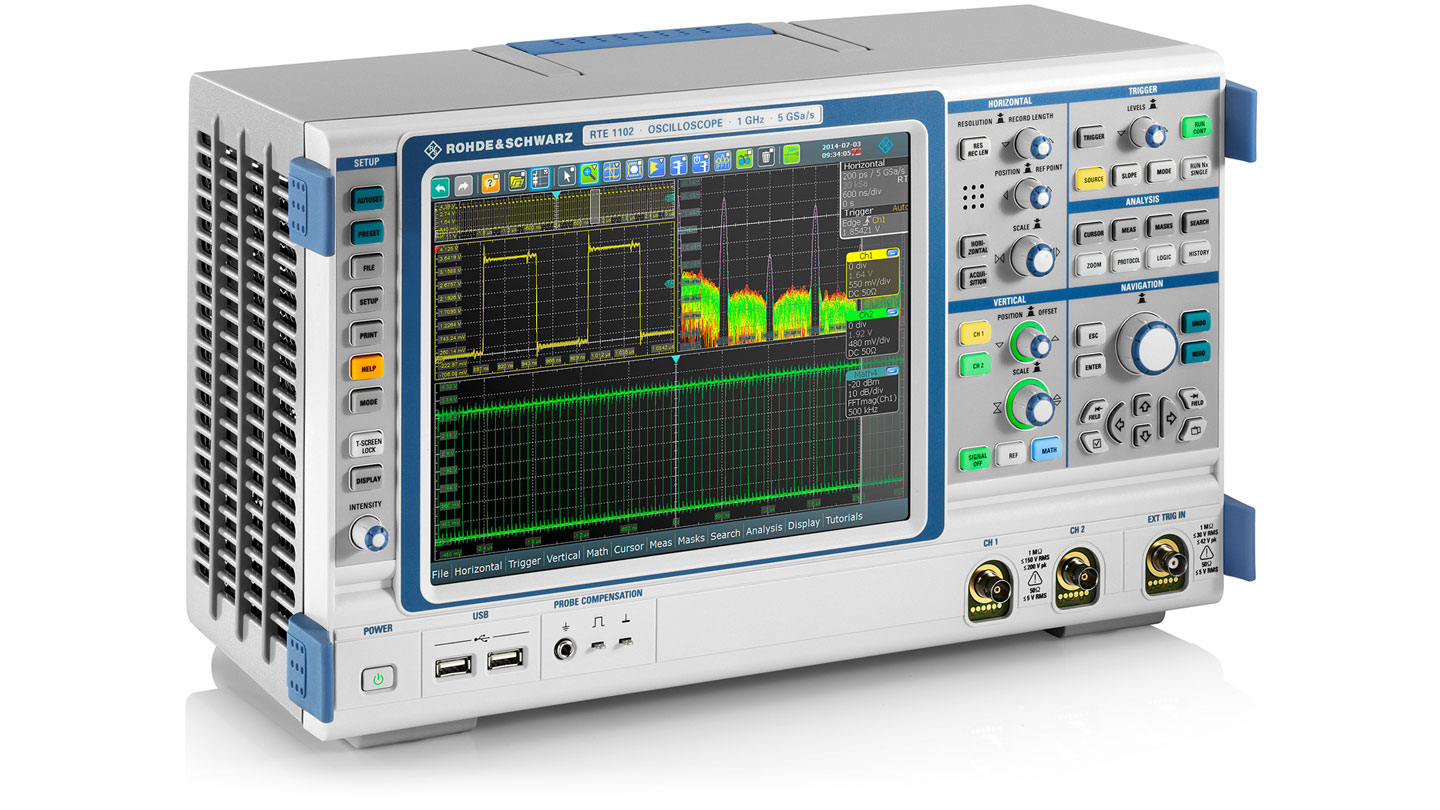

RTE1000 Series Digital Oscilloscopes

T&M Equipment → Oscilloscopes → RTE1000 Series Digital Oscilloscopes

Sipariş No : RS-RTE1000

RTE1000 Series Digital Oscilloscopes

2/4 Channel, 200MHz, 350MHz, 500MHz, 1GHz, 1.5GHz, 2GHz Digital Oscilloscope

R&S®RTE1000 oscilloscopes offer a fully integrated multi-domain test solution with time, frequency, protocol and logic analysis functions. From embedded design development to power electronics analysis to general debugging, the R&S®RTE1000 handles everyday T&M challenges quickly, accurately and easily.

Key Facts

  • 200 MHz to 2 GHz Bandwidth
  • 5 Gsample/s Sampling Rate
  • Up to 200 MSample Memory Depth
  • 16-bit ADC Resolution
  • 10.4" High-Resolution Touchscreen
  • 1 000 000 waveforms/s Update Rate (2 000 000 in Ultra-segmented Memory Mode, Standard)
  • 500 µV/div to 10 V/div Input Sensitivity
  • MSO: 16 Digital Channels (Optional)
  • Arbitrary Waveform and Pattern Generator (Optional)

Features & Benefits

More confidence in measurement results

  • Precise measurements due to very low inherent noise
  • Single-core A/D converter and up to 16-bit vertical resolution
  • Full measurement bandwidth, even at 500 µV/div
  • High time resolution combined with deep memory
  • Finding rare signal faults quickly thanks to one million waveforms/s
  • Accurate triggering with a digital trigger system
  • Precise fault detection with diverse trigger modes

More fun to use

  • High-resolution 10.4" XGA touchscreen
  • Fully customizable display
  • Fast access to important tools and instrument setups
  • Signal details at your fingertip
  • Documentation at the push of a button

More functions and faster results

  • High measurement speed: even for complex analysis functions
  • Automatic measurements: 77 functions available including statistical evaluation
  • QuickMeas: key measurement results at the push of a button
  • History function: looking back in time
  • Mask test for identifying signal anomalies: settings in only seconds
  • Powerful FFT function: the easy way to analyze the signal spectrum
  • Search and navigation: focus on details
  • Math functions: calculations made easy
  • Reference waveforms: fast comparisons

Engineered for multi-domain challenges

  • Logic analysis: fast and precise testing of embedded designs
  • Serial protocols: easy triggering and decoding
  • Power analysis
  • Spectrum analysis
  • EMI debugging: testing during development
  • Integrated arbitrary waveform generator
  • High definition: see more with 16-bit vertical resolution

Powerful probes

  • Comprehensive probe portfolio for all measurement tasks
  • High signal fidelity thanks to excellent specifications
  • R&S®ProbeMeter with 0.01% measurement accuracy
  • Active probes with micro button for instrument control
Model/Option Selection Matrix
Stock Code:
RS-1326.2000.22-RTE1022
Details:
200 MHz 2 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1326.2000.24-RTE1024
Details:
200 MHz 4 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1326.2000.32-RTE1032
Details:
350 MHz 2 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1326.2000.34-RTE1034
Details:
350 MHz 4 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1326.2000.52-RTE1052
Details:
500 MHz 2 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1326.2000.54-RTE1054
Details:
500 MHz 4 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1326.2000.62-RTE1102
Details:
1 GHz 2 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1326.2000.64-RTE1104
Details:
1 GHz 4 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1326.2000.72-RTE1152
Details:
1.5 GHz 2 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1326.2000.74-RTE1154
Details:
1.5 GHz 4 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1326.2000.82-RTE1202
Details:
2 GHz 2 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1326.2000.84-RTE1204
Details:
2 GHz 4 Channel Digital Oscilloscope
Option Type:
Model
Stock Code:
RS-1326.3570.02-RTE-B1
Details:
Mixed Signal Upgrade for non-MSO Models, 400 MHz
Option Type:
Option-HW
Stock Code:
RS-1333.0750.02-RTE-B1E
Details:
Digital Extension Port for R&S®RTE
Option Type:
Option-HW
Stock Code:
RS-1326.3012.02-RTE-B6
Details:
Arbitrary Waveform Generator
Option Type:
Option-HW
Stock Code:
RS-1317.4978.02-RTE-B10
Details:
GPIB Interface
Option Type:
Option-HW
Stock Code:
RS-1317.7002.02-RTE-B18
Details:
Replacement SSD, incl. Firmware
Option Type:
Option-HW
Stock Code:
RS-1326.1155.02-RTE-B101
Details:
Memory Upgrade to 20 Msample
Option Type:
Option-HW
Stock Code:
RS-1326.1161.02-RTE-B102
Details:
Memory Upgrade to 50 Msample
Option Type:
Option-HW
Stock Code:
RS-1326.1384.02-RTE-B200
Details:
Bandwidth Upgrade of the R&S®RTE1022/4 to 350 MHz
Option Type:
Option-HW
Stock Code:
RS-1326.1390.02-RTE-B201
Details:
Bandwidth Upgrade of the R&S®RTE1022/4 to 500 MHz
Option Type:
Option-HW
Stock Code:
RS-1326.1403.02-RTE-B202
Details:
Bandwidth Upgrade of the R&S®RTE1022/4 to 1 GHz
Option Type:
Option-HW
Stock Code:
RS-1326.1410.02-RTE-B203
Details:
Bandwidth Upgrade of the R&S®RTE1022/4 to 1.5 GHz
Option Type:
Option-HW
Stock Code:
RS-1326.1426.02-RTE-B204
Details:
Bandwidth Upgrade of the R&S®RTE1022/4 to 2 GHz
Option Type:
Option-HW
Stock Code:
RS-1326.1432.02-RTE-B205
Details:
Bandwidth Upgrade of the R&S®RTE1032/4 to 500 MHz
Option Type:
Option-HW
Stock Code:
RS-1326.1449.02-RTE-B206
Details:
Bandwidth Upgrade of the R&S®RTE1032/4 to 1 GHz
Option Type:
Option-HW
Stock Code:
RS-1326.1455.02-RTE-B207
Details:
Bandwidth Upgrade of the R&S®RTE1032/4 to 1.5 GHz
Option Type:
Option-HW
Stock Code:
RS-1326.1461.02-RTE-B208
Details:
Bandwidth Upgrade of the R&S®RTE1032/4 to 2 GHz
Option Type:
Option-HW
Stock Code:
RS-1326.1478.02-RTE-B209
Details:
Bandwidth Upgrade of the R&S®RTE1052/4 to 1 GHz
Option Type:
Option-HW
Stock Code:
RS-1326.1484.02-RTE-B210
Details:
Bandwidth Upgrade of the R&S®RTE1052/4 to 1.5 GHz
Option Type:
Option-HW
Stock Code:
RS-1326.1490.02-RTE-B211
Details:
Bandwidth Upgrade of the R&S®RTE1052/4 to 2 GHz
Option Type:
Option-HW
Stock Code:
RS-1326.1503.02-RTE-B212
Details:
Bandwidth Upgrade of the R&S®RTE1102/4 to 1.5 GHz
Option Type:
Option-HW
Stock Code:
RS-1326.1510.02-RTE-B213
Details:
Bandwidth Upgrade of the R&S®RTE1102/4 to 2 GHz
Option Type:
Option-HW
Stock Code:
RS-1326.1526.02-RTE-B214
Details:
Bandwidth Upgrade of the R&S®RTE1152/4 to 2 GHz
Option Type:
Option-HW
Stock Code:
RS-1326.1178.02-RTE-K1
Details:
I²C/SPI Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1326.1184.02-RTE-K2
Details:
UART/RS-232/RS-422/RS-485 Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1326.1190.02-RTE-K3
Details:
CAN/LIN Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1326.1203.02-RTE-K4
Details:
FlexRay™ Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1326.1210.02-RTE-K5
Details:
Audio (I²S/LJ/RJ/TDM) Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1326.1226.02-RTE-K6
Details:
MIL-STD-1553 Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1326.1232.02-RTE-K7
Details:
ARINC 429 Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1326.1332.02-RTE-K8
Details:
10/100BASE-T Ethernet Serial Decoding
Option Type:
Option-SW
Stock Code:
RS-1326.1249.02-RTE-K9
Details:
CAN-FD Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1323.1603.02-RTE-K10
Details:
SENT Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1801.2852.02-RTE-K35
Details:
Bus Analysis
Option Type:
Option-SW
Stock Code:
RS-1326.1326.02-RTE-K50
Details:
MANCHESTER/NRZ Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1326.1255.02-RTE-K55
Details:
MDIO Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1333.0615.02-RTE-K57
Details:
IEEE 100BASE-T1 Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1326.1610.02-RTE-K60
Details:
USB 1.0/1.1/2.0/HSIC Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1326.3158.02-RTE-K63
Details:
USB-PD Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1326.2845.02-RTE-K65
Details:
SpaceWire Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1326.3193.02-RTE-K76
Details:
CXPI Serial Triggering and Decoding
Option Type:
Option-SW
Stock Code:
RS-1326.1261.02-RTE-K17
Details:
High Definition Mode
Option Type:
Option-SW
Stock Code:
RS-1326.3006.02-RTE-K18
Details:
Spectrum Analysis
Option Type:
Option-SW
Stock Code:
RS-1326.1278.02-RTE-K31
Details:
Power Analysis
Option Type:
Option-SW
Stock Code:
RS-1802.9296.02-RTE-U2
Details:
Upgrade to Windows 10
Option Type:
Option-SW
Stock Code:
RS-1333.0096.02-RTO-Z1
Details:
Front Cover for R&S®RTO/RTE Oscilloscopes
Option Type:
Accessory
Stock Code:
RS-1304.9118.02-RTO-Z3
Details:
Soft Case for R&S®RTO/RTE Oscilloscopes and Accessories
Option Type:
Accessory
Stock Code:
RS-1317.7025.02-RTO-Z4
Details:
Transit Case, with trolley function, for R&S®RTO/RTE Oscilloscopes and Accessories
Option Type:
Accessory
Stock Code:
RS-1317.7031.02-RTO-Z5
Details:
Probe Pouch for R&S®RTO/RTE Oscilloscopes
Option Type:
Accessory
Stock Code:
RS-1304.8286.00-ZZA-RTO
Details:
19" Rackmount Kit for R&S®RTO/RTE Oscilloscopes with 6 HU
Option Type:
Accessory
Stock Code Details Option Type
RS-1326.2000.22-RTE1022 200 MHz 2 Channel Digital Oscilloscope Model
RS-1326.2000.24-RTE1024 200 MHz 4 Channel Digital Oscilloscope Model
RS-1326.2000.32-RTE1032 350 MHz 2 Channel Digital Oscilloscope Model
RS-1326.2000.34-RTE1034 350 MHz 4 Channel Digital Oscilloscope Model
RS-1326.2000.52-RTE1052 500 MHz 2 Channel Digital Oscilloscope Model
RS-1326.2000.54-RTE1054 500 MHz 4 Channel Digital Oscilloscope Model
RS-1326.2000.62-RTE1102 1 GHz 2 Channel Digital Oscilloscope Model
RS-1326.2000.64-RTE1104 1 GHz 4 Channel Digital Oscilloscope Model
RS-1326.2000.72-RTE1152 1.5 GHz 2 Channel Digital Oscilloscope Model
RS-1326.2000.74-RTE1154 1.5 GHz 4 Channel Digital Oscilloscope Model
RS-1326.2000.82-RTE1202 2 GHz 2 Channel Digital Oscilloscope Model
RS-1326.2000.84-RTE1204 2 GHz 4 Channel Digital Oscilloscope Model
RS-1326.3570.02-RTE-B1 Mixed Signal Upgrade for non-MSO Models, 400 MHz Option-HW
RS-1333.0750.02-RTE-B1E Digital Extension Port for R&S®RTE Option-HW
RS-1326.3012.02-RTE-B6 Arbitrary Waveform Generator Option-HW
RS-1317.4978.02-RTE-B10 GPIB Interface Option-HW
RS-1317.7002.02-RTE-B18 Replacement SSD, incl. Firmware Option-HW
RS-1326.1155.02-RTE-B101 Memory Upgrade to 20 Msample Option-HW
RS-1326.1161.02-RTE-B102 Memory Upgrade to 50 Msample Option-HW
RS-1326.1384.02-RTE-B200 Bandwidth Upgrade of the R&S®RTE1022/4 to 350 MHz Option-HW
RS-1326.1390.02-RTE-B201 Bandwidth Upgrade of the R&S®RTE1022/4 to 500 MHz Option-HW
RS-1326.1403.02-RTE-B202 Bandwidth Upgrade of the R&S®RTE1022/4 to 1 GHz Option-HW
RS-1326.1410.02-RTE-B203 Bandwidth Upgrade of the R&S®RTE1022/4 to 1.5 GHz Option-HW
RS-1326.1426.02-RTE-B204 Bandwidth Upgrade of the R&S®RTE1022/4 to 2 GHz Option-HW
RS-1326.1432.02-RTE-B205 Bandwidth Upgrade of the R&S®RTE1032/4 to 500 MHz Option-HW
RS-1326.1449.02-RTE-B206 Bandwidth Upgrade of the R&S®RTE1032/4 to 1 GHz Option-HW
RS-1326.1455.02-RTE-B207 Bandwidth Upgrade of the R&S®RTE1032/4 to 1.5 GHz Option-HW
RS-1326.1461.02-RTE-B208 Bandwidth Upgrade of the R&S®RTE1032/4 to 2 GHz Option-HW
RS-1326.1478.02-RTE-B209 Bandwidth Upgrade of the R&S®RTE1052/4 to 1 GHz Option-HW
RS-1326.1484.02-RTE-B210 Bandwidth Upgrade of the R&S®RTE1052/4 to 1.5 GHz Option-HW
RS-1326.1490.02-RTE-B211 Bandwidth Upgrade of the R&S®RTE1052/4 to 2 GHz Option-HW
RS-1326.1503.02-RTE-B212 Bandwidth Upgrade of the R&S®RTE1102/4 to 1.5 GHz Option-HW
RS-1326.1510.02-RTE-B213 Bandwidth Upgrade of the R&S®RTE1102/4 to 2 GHz Option-HW
RS-1326.1526.02-RTE-B214 Bandwidth Upgrade of the R&S®RTE1152/4 to 2 GHz Option-HW
RS-1326.1178.02-RTE-K1 I²C/SPI Serial Triggering and Decoding Option-SW
RS-1326.1184.02-RTE-K2 UART/RS-232/RS-422/RS-485 Serial Triggering and Decoding Option-SW
RS-1326.1190.02-RTE-K3 CAN/LIN Serial Triggering and Decoding Option-SW
RS-1326.1203.02-RTE-K4 FlexRay™ Serial Triggering and Decoding Option-SW
RS-1326.1210.02-RTE-K5 Audio (I²S/LJ/RJ/TDM) Triggering and Decoding Option-SW
RS-1326.1226.02-RTE-K6 MIL-STD-1553 Serial Triggering and Decoding Option-SW
RS-1326.1232.02-RTE-K7 ARINC 429 Serial Triggering and Decoding Option-SW
RS-1326.1332.02-RTE-K8 10/100BASE-T Ethernet Serial Decoding Option-SW
RS-1326.1249.02-RTE-K9 CAN-FD Serial Triggering and Decoding Option-SW
RS-1323.1603.02-RTE-K10 SENT Serial Triggering and Decoding Option-SW
RS-1801.2852.02-RTE-K35 Bus Analysis Option-SW
RS-1326.1326.02-RTE-K50 MANCHESTER/NRZ Serial Triggering and Decoding Option-SW
RS-1326.1255.02-RTE-K55 MDIO Serial Triggering and Decoding Option-SW
RS-1333.0615.02-RTE-K57 IEEE 100BASE-T1 Serial Triggering and Decoding Option-SW
RS-1326.1610.02-RTE-K60 USB 1.0/1.1/2.0/HSIC Serial Triggering and Decoding Option-SW
RS-1326.3158.02-RTE-K63 USB-PD Serial Triggering and Decoding Option-SW
RS-1326.2845.02-RTE-K65 SpaceWire Serial Triggering and Decoding Option-SW
RS-1326.3193.02-RTE-K76 CXPI Serial Triggering and Decoding Option-SW
RS-1326.1261.02-RTE-K17 High Definition Mode Option-SW
RS-1326.3006.02-RTE-K18 Spectrum Analysis Option-SW
RS-1326.1278.02-RTE-K31 Power Analysis Option-SW
RS-1802.9296.02-RTE-U2 Upgrade to Windows 10 Option-SW
RS-1333.0096.02-RTO-Z1 Front Cover for R&S®RTO/RTE Oscilloscopes Accessory
RS-1304.9118.02-RTO-Z3 Soft Case for R&S®RTO/RTE Oscilloscopes and Accessories Accessory
RS-1317.7025.02-RTO-Z4 Transit Case, with trolley function, for R&S®RTO/RTE Oscilloscopes and Accessories Accessory
RS-1317.7031.02-RTO-Z5 Probe Pouch for R&S®RTO/RTE Oscilloscopes Accessory
RS-1304.8286.00-ZZA-RTO 19" Rackmount Kit for R&S®RTO/RTE Oscilloscopes with 6 HU Accessory

Tender Specifications

Videos

Documents (Catalogue-Brochure-Manual)

RS RTE1000 Series Digital Oscilloscopes Brochure.pdf

Related Products

Model

RTH1000 Series Handheld Oscilloscopes
RS-RTH1000

2/4 Channel, 60MHz, 100MHz, 200MHz, 350MHz, 500MHz Handheld Digital Oscilloscope

Show Product Details

RTM3000 Series Digital Oscilloscopes
RS-RTM3000

2/4 Channel, 100MHz, 200MHz, 350MHz, 500MHz, 1GHz Digital Oscilloscope

Show Product Details

RTA4000 Series Digital Oscilloscopes
RS-RTA4000

4 Channel, 200MHz, 350MHz, 500MHz, 1GHz Digital Oscilloscope

Show Product Details
0
