Boost Your Efficiency with Quad-Core Power!

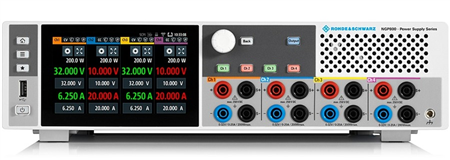

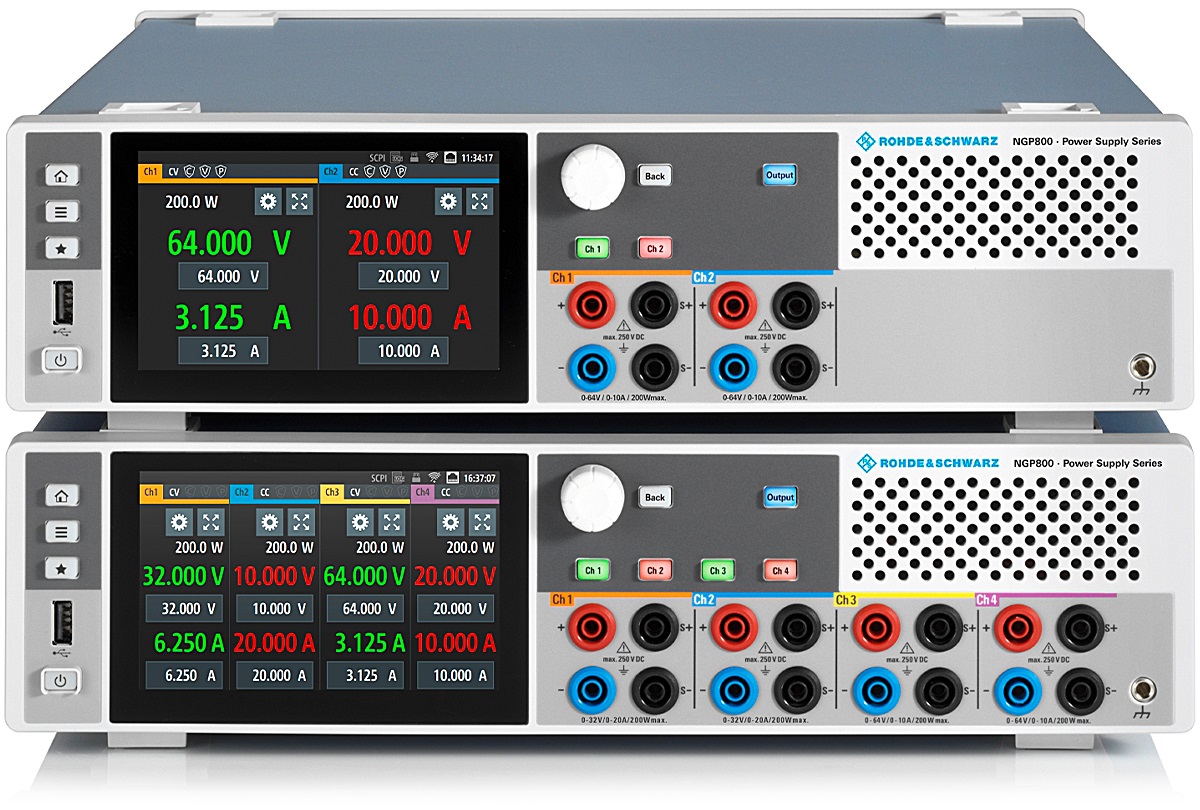

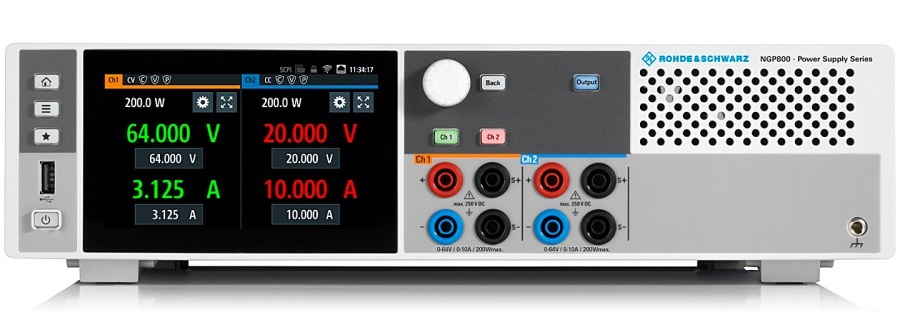

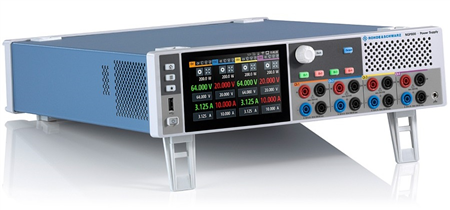

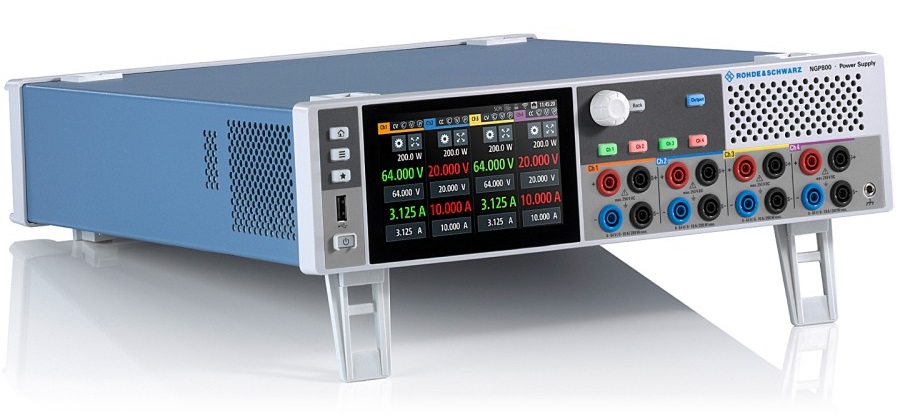

The R&S®NGP800 DC power supply series, comprising five models with 400 W or 800 W, provides maximum power at a variety of operating points. The two or four 200 W outputs can each supply up to 64 V or up to 20 A. Electrically equivalent and galvanically isolated outputs can be wired in series or parallel for up to 250 V or 80 A.
Key Facts
- Max. output power: 800 W
- Max. voltage per channel: 32 V or 64 V
- Max. current per channel: 10 A or 20 A
- Up to 250 V or 80 A in series or parallel operation
- Large touch display
Features & Benefits
High-resolution touch display for easy operation
The large high-resolution touch display makes operation easy. Quickly navigate through the menus to access all functions and settings. Enter values much faster using the virtual keyboard instead of turning the knob. The home screen gives you a clear overview of all your channels. Each channel can be selected for a more detailed view with a wide variety of additional information, such as statistics and icons indicating the status of set protection or special functions.
Get the maximum power at various operating points
Unlike with single range power supplies, you can generate variable voltage and current combinations within the overall power limit of 200 W per channel. This technology makes your power supply a lot more versatile, covering a wider range of applications.
Parallel and serial operation up to 250V or 80A
If your application requires more voltage or current, simply connect the outputs in series or parallel and get up to 250 V (R&S®NGP824) or 80 A (R&S®NGP804) – now you have the flexibility you always asked for. Using the tracking function, voltage and current are adjusted on all selected channels simultaneously.
Model/Opsiyon Seçim Tablosu
|
|
Ürün Kodu
|
Ürün Açıklaması
|
Ürün Tipi
|
|
|
RS-5601.4007.05-NGP802 |
2 Channel, 0-32V/0-20A, 400W DC Power Supply |
Model |
|
|
RS-5601.4007.02-NGP804 |
4 Channel, 0-32V/0-20A, 800W DC Power Supply |
Model |
|
|
RS-5601.4007.04-NGP814 |
4 Channel, 2x(0-32V/0-20A), 2x(0-64V/0-10A), 800W DC Power Supply |
Model |
|
|
RS-5601.4007.06-NGP822 |
2 Channel, 0-64V/0-10A, 400W DC Power Supply |
Model |
|
|
RS-5601.4007.03-NGP824 |
4 Channel, 0-64V/0-10A, 800W DC Power Supply |
Model |
|
|
RS-5601.6000.02-NG-B105 |
IEEE-488 (GPIB) Interface |
Opsiyon-HW |
|
|
RS-5601.6400.03-NGP-K102 |
Wireless LAN Remote Control |
Opsiyon-SW |
|
|
RS-5601.6300.03-NGP-K103 |
Digital Trigger I/O |
Opsiyon-SW |
|
|
RS-5601.6200.03-NGP-K107 |
Analog Input |
Opsiyon-SW |
|
|
RS-5601.4059.02-ZZA-GE23 |
19" Rack Adapter, 2 HU |
Aksesuar |
