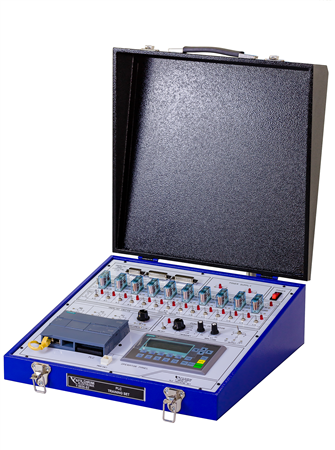

PLC training set is designed for study applications with required simulation components. The set is suitable for using alone or with various application modules.
Siemens S7-1200 series CPU 1215C model PLC is used on training set. There are inputs-outputs that carry out analog signals and one multiturn potentiometer. All PLC outputs can be used directly or over relay. Also led and simulation keys are used for all inputs.
240 x 80 pixel, 10 keys (user defined) and 4 colored backlight operator psnel is used on the set.
The set is placed with cover in a shock proof seperable case. It is designed for using horizontally and is suitable for storing vertically.
2mm sockets and 2 mm experiment cables with various colors are used on the set.An application CD is provided with the user’s guide that includes practical and explanatory basic experiments.
Applications :
• Online / Offline Simülasyon Uygulamaları
• Temel Giriş/Çıkış Uygulamaları (Bit Logic)
• Mantıksal İşlem Uygulamaları (Logical)
• Karşılaştırma İşlemleri (Compare)
• Taşıma Komutu Uygulaması (Move)
• Aritmetiksel İşlem Uygulamaları (Integer Math)
• TON Zamanlayıcı ile Kayan Işık Uygulaması (Timers)
• TON Zamanlayıcı ile 24V Lamba Uygulaması (Timers)
• TOFF Zamanlayıcı ile 24V Lamba Uygulaması (Timers)
• Yukarı Sayıcı Uygulaması (Up Counter)
• Aşağı/Yukarı Sayıcı Uygulaması (Up-Down Counter)
• Analog Giriş, Çıkış Uygulaması
• KP300 Op-Paneli ile Giriş-Çıkış Uygulaması
• KP300 Op-Paneli ile Veri Gösterme Uygulaması
