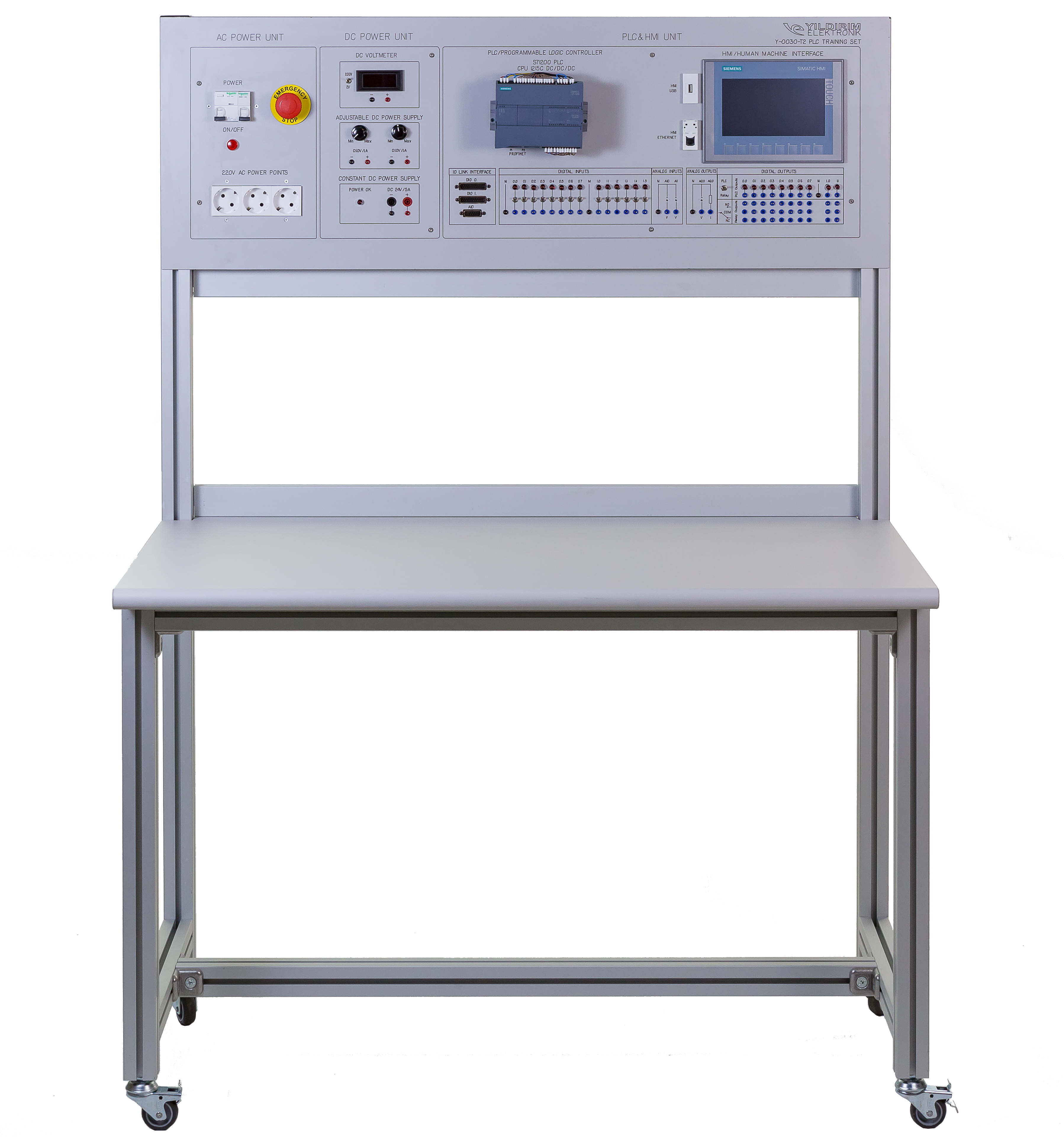

Bench Type PLC Training Set includes all required components for automation applications with PLC with a user-friendly design. Set is an education platform for industrial control, automation, pneumatic and PLC laboratories with its integrated design. Its design is suitable for using alone or with various application modules and bench type industrial systems.
All components on the set meet the safety requirements.Simulation keys, signal lambs and 0…10V adjustable power supplies can be used for digital and analog inputs– outputs applications with PLC. Digital outputs can be used directly or over relays. Set includes 2 mm input and output sockets to connect any external system to PLC directly. Voltage of the digital and analog inputs – outputs can be displayed by voltmeter on the panel.Multiple network connections can be done by industrialethernet switch on the panel.
There is a touch screen operator panel to monitoring and control the system. There are USB and Ethernet ports to connect the HMI to PC on the panel.
Application modules and various equipment can be placed easily to profile structure under the panel to have more suitable working area on the bench.
Application CD and the user’s guide that includes practical and explanatory experiments are provided with the set.
Applications :
• Online / Offline Simulation Applications
• Basic Input/Output Applications (Bit Logic)
• Logical Process Applications (Logical)
• Comparison Processes (Compare)
• Transportation Command Application (Move)
• Arithmetic Process Applications (Integer Math)
• Sliding light application with TONE timer (Timers)
• 24V lamp application with TONE timer (Timers)
• 24V lamp application with TOFF timer (Timers)
• Up Counter Application (Up Counter)
• Up/Down Counter Application (Up-Down Counter)
• Analog Input Applications
• Analog Output Applications
• Input-Output Application with KTP700 Operator Panel
• Data DisplayApplication with KTP700 Operator Panel
