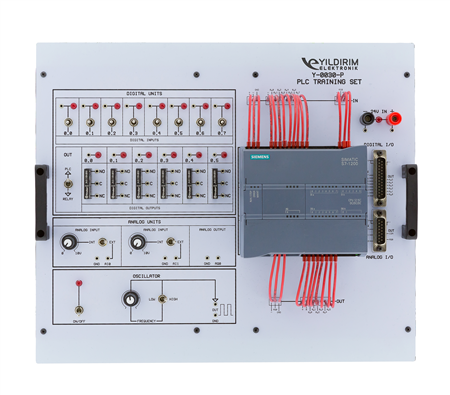

PLC Training Set designed to use alone or with application modules.

Set includes Siemens S7-1200 series PLC and there are 6 pcs relay outputs for digital outputs. It is possible to use both PLC outputs and relay outputs. All inputs and outputs are combined on the DSUB connectors. PLC Training Set can work together with PLC. Application Modules by DSUB connectors on the panel.

PLC Training Set has potentiometer and adjustable frequency oscillator for analog applications. PLC application modules can be used with the existing PLC units.

Sample software and experiment data sheets for this applications are given with modules.

Applications :

• Online / Offline Simulation Applications
• Basic Input/Output Applications (Bit Logic)
• Logical Process Applications (Logical)
• Comparison Processes (Compare)
• Transportation Command Application (Move)
• Arithmetic Process Applications (Integer Math)
• Sliding light application with TONE timer (Timers)
• 24V lamp application with TONE timer (Timers)
• 24V lamp application with TOFF timer (Timers)
• Up Counter Application (Up Counter)
• Up/Down Counter Application (Up-Down Counter)
• Analog Input Applications
• Analog Output Applications
