Fixed Attenuators

DC to 50 GHz, 0 to 30 dB, Fixed Attenuator

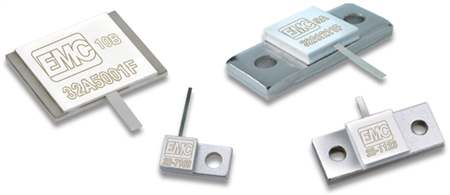

Smiths Interconnect is the world leader in fixed attenuators from DC through  Q band. Fixed attenuators are available in 0.1 to 400 watt versions, covering DC to 50 GHz applications and offered in 0 to 30 dB values. Our attenuators are available in many package styles including chip, tab & cover, flange and coaxial models for use in both low and high power applications. These products are available in standard commercial product as well as high reliability versions.

Features

  • Substrates - BeO, AlN, Alumina and CVD Diamond
  • Commercial and High Reliability Product Lines
  • Frequency Range from DC to 50 GHz
  • Attenuation Values from 0 to 30 dB
  • Space and Military Qualified
  • Surface Mount, Wire-Bondable and  Coaxial Configurations

Benefits

  • Small Footprint
  • Totally Passive
  • Power Handling up to 400 Watts
  • Several Metallization Options Available, Including a RoHS Compliant Version

Applications

  • Circulators
  • High Power Amplifiers
  • Receivers
  • Filters
  • Isolators
  • Signal Sampling
  • Interstage Isolation
  • Impedance Matching

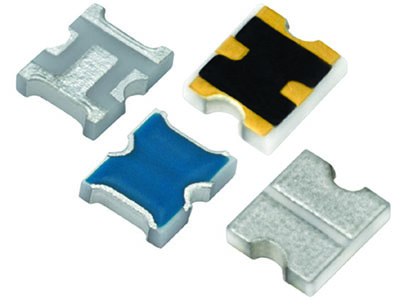

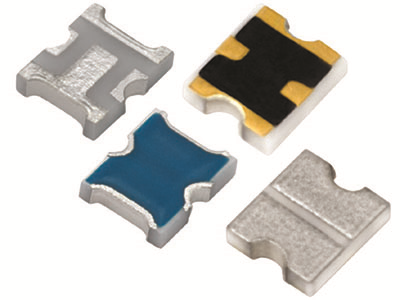

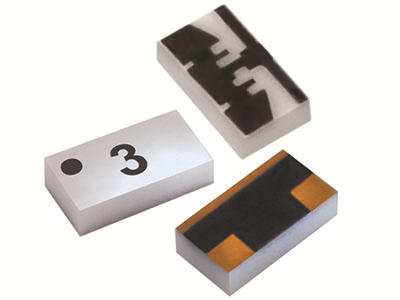

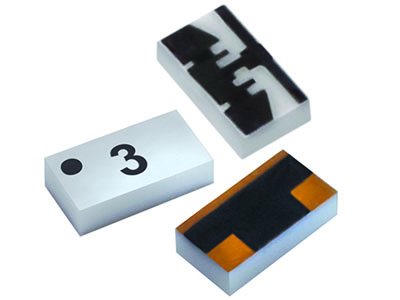

Small Signal Attenuators

Series

Temperature Variable Thermopad® Equivalent

Frequency

Range

Max Input

Power CW

Footprint Dimensions (Inches)

Footprint   Dimensions   (mm)

TS03

TT3 (0.5dB attenuation)

TVADC-12.4 GHz2.0 Watts0.122 X 0.1453.10 X 3.68
TS04Not AvailableDC-6 GHz1.0 Watts0.125 X 0.1003.18 X 2.54

TS05

TT5 (0.5dB attenuation)

MTVADC-18 GHz*0.75 - 5.0 Watts0.075 X 0.0601.91 X 1.52
TS06Not AvailableDC-20 GHZ*0.5 - 3.0 Watts0.065 X 0.0351.65 X 0.89
TS07AN7DC-6 GHz100 Milliwatts0.080 X 0.0502.03 X 1.27
TS09WTVADC-20 GHz200 Milliwatts0.060 X 0.0751.52 X 1.91
TT9WTVADC-20 GHz*1.0 - 4.0 Watts0.060 X 0.0751.52 X 1.91
TS11AN11DC-6 GHz100 Milliwatts0.045 X 0.0251.13 X 0.62
KFAKTVA16-36 GHz200 Milliwatts0.120 X 0.0653.05 X 1.65
Not AvailableK2TVA27-32 GHz200 Milliwatts0.120 X 0.0653.05 X 1.65
QFANot Available36-50 GHz200 Milliwatts0.120 X 0.065 3.05 X 1.65
* Attenuation Value Dependent
