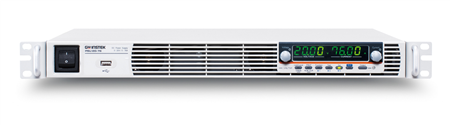

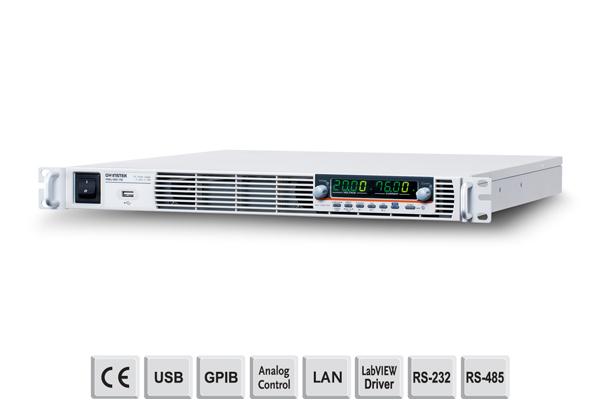

PSU DC Power Supplies

Test & Ölçüm Cihazları → Güç Kaynağı → DC Güç Kaynağı → PSU DC Power Supplies

Sipariş No : GW-PSU

PSU DC Power Supplies

PSU DC Power Supplies,GW-PSU,PSU

• Voltage output: 6V/8V/12.5V/15V/20V/30V/40V/50V/60V/80V/100V/150V/300V/400V/600V
• Output Power Rating: 1200W~1560W
• C.V / C.C Priority
• direct/current rise and fall abandonment
• Serial/ Parallel Connection: Max. 2 Pieces (Models Below 300V) / 4 Pieces of the Same Model
• High Efficiency and High Power Density
• 1U Height and 19” Rack Mounting Size
• Standard Interface: USB, LAN, RS-232, RS-485, Analog Control
• Optional Interface: GP, Isolated Analog Interface/Current control

Teknik Şartname

• Voltage output: 6V/8V/12.5V/15V/20V/30V/40V/50V/60V/80V/100V/150V/300V/400V/600V
• Output Power Rating: 1200W~1560W
• C.V / C.C Priority
• direct/current rise and fall abandonment
• Serial/ Parallel Connection: Max. 2 Pieces (Models Below 300V) / 4 Pieces of the Same Model
• High Efficiency and High Power Density
• 1U Height and 19” Rack Mounting Size
• Standard Interface: USB, LAN, RS-232, RS-485, Analog Control
• Optional Interface: GP, Isolated Analog Interface/Current control

Ürünün Teknik Şartnamesini İndir

Videolar

Ek Dosyalar (Katalog-Broşür-Manual)

GW-PSU datasheet.pdf
