Sipariş No : 72133

CW-72153

ESD Önlük Dizüstü, Beyaz, Yıkanabilir, Unisex, L



   - Comfortable ESD dissipative lab coats are ideal for any production environment in which sensitive items (ESDS) are being handled
   - The coats offer ESD protection using the principle of the Faraday cage shielding ESDS from electrostatic charges on operator’s clothing
   - The buttons at the front have an overlap which avoids direct contact with parts
   - 2 side pockets and 1 breast pocket

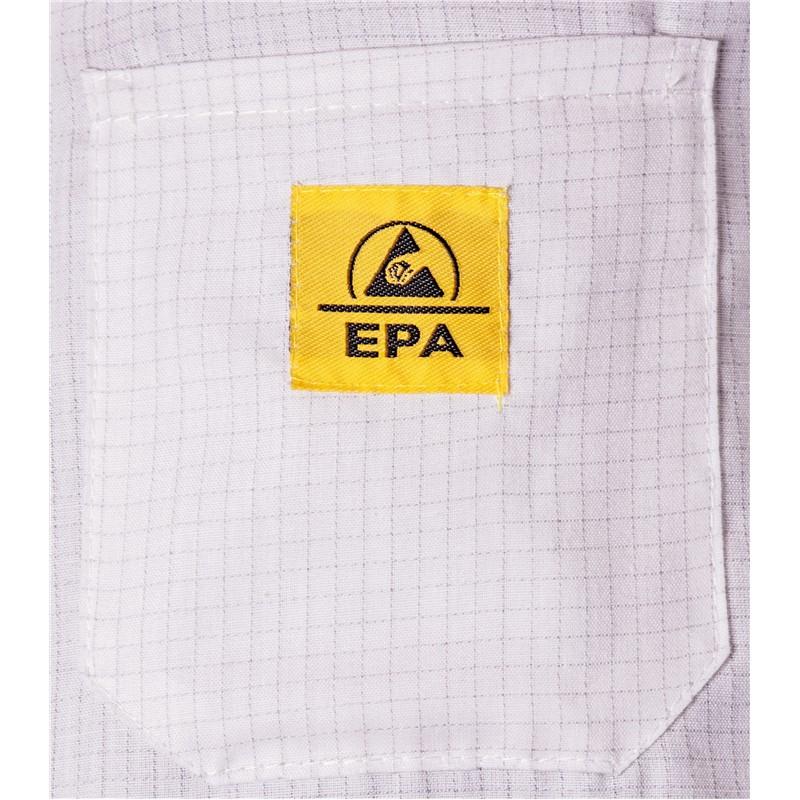

   - Identified with ESD protective symbol on breast pocket

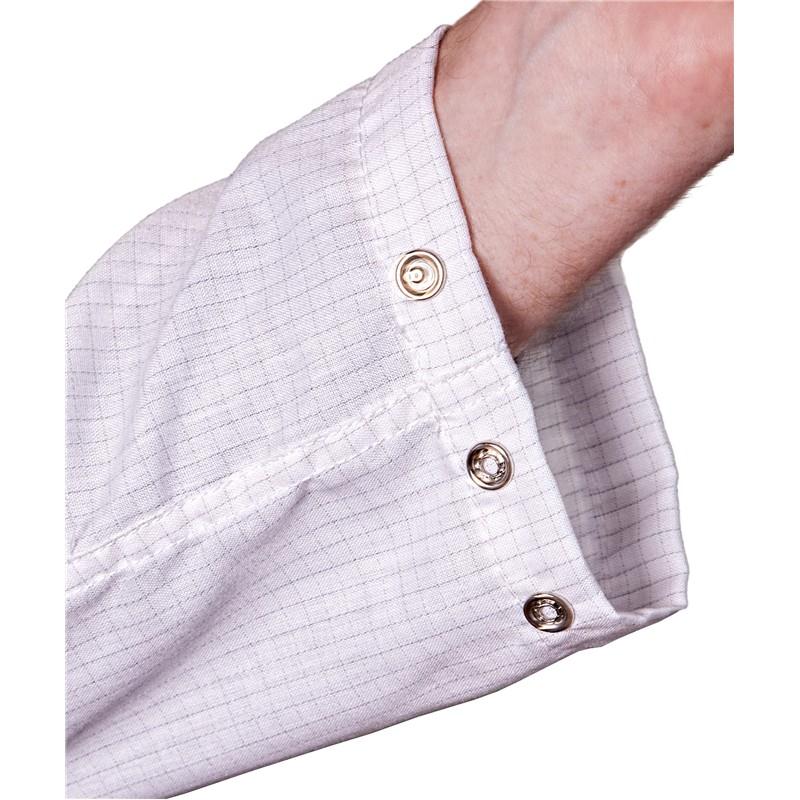

   - Quick opening and closing snap
   - Unisex style with back pleats
   - Lightweight, comfortable and breathable material
   - Composition: Cotton (34%), Polyester (64%) and conductive fibres (2%)
   - Resistance point to point Rp-p: 1 x 106 to < 1 x 1011 ohms per ANSI/ESD STM2.1
   - Tough and durable
   - Machine washable (40°C); resistant to repeat washing cycles
   - Coats are CE certified

“The ESD risk provided by everyday clothing cannot be easily assessed. The current general view of experts is that the main source of ESD risk may occur where  ESDS [ESD sensitive items] can reach high induced voltage due to external fields from the clothing, and subsequently experience a field  induced CDM [Charged evice Model] type discharge. So ESD control garments may be of particular benefit where larger ESDS having low CDM withstand voltage are handled, and operators habitually wear everyday clothing that could generate electrostatic high fields.” [CLC TR 61340-5-2 2008 User guide Garments sub-clause 4.7.7.1 Introductory remarks]
